Tiezheng horizontal machining centers support multi-side milling, drilling, boring and tapping projects where pallet orientation, fixture access, work envelope and chip control must be reviewed together. This category page introduces the WH63A model, machine and workshop media, selection guidance, service information and a direct RFQ path; capacity is confirmed for the selected machine.
Multi-side milling, drilling, boring and tapping review. Exact capability depends on the released model, tooling, fixture, pallet strategy, workpiece drawing and reviewed configuration.
Workpieces
Housings, boxes, valve bodies, manifolds and similar parts that may benefit from multi-face access after drawing, fixture and process review.
Materials
Material compatibility is project-specific. Confirm material grade, blank condition, hardness, machining allowance and chip characteristics during RFQ.
Capacity
Model-specific. Review the WH63A page for its published specification table, then confirm the work envelope, table load, spindle, tooling, fixture and pallet requirements for the selected machine during RFQ.
Spindle / power
Model-specific spindle and tooling configuration. Confirm taper, speed, torque, tool capacity and cutting requirements before quotation.
Axis / stations
Configuration-specific horizontal machining route with model-dependent pallet, rotary-axis and fixture requirements.
Control system
Project-specific CNC control configuration. Confirm preferred control, language and service requirements during RFQ.
Options
Pallet and fixture review, tooling selection, probing, chip and coolant handling, guarding, loading support, automation interfaces and acceptance-test planning.
What is this machine used for?
Tiezheng horizontal machining centers are reviewed for milling, drilling, boring and tapping on several accessible faces of a part. Compare the published WH, WHH, JB, JAB and other models within this classification using their individual specifications. Check fixture orientation, datum strategy, tool reach and chip evacuation together; a family name does not establish identical pallet equipment or capability.
When is a horizontal machining center worth reviewing?
Review this route for a housing, box, valve body or manifold when a fixture can present the required faces to the spindle. These are part-shape examples for process discussion, not approval for a material or industry. Confirm rotary positioning, pallet handling and any operations remaining outside the proposed setup.
What should I check before choosing a model?
Read each model’s published dimensions, axis travels, workpiece limits and load ratings separately. Check the complete part, fixture, tool assembly and clearances. These values are not a guarantee that all limits can be used simultaneously. Confirm the control, spindle, tooling and standard or optional equipment for the supplied configuration.
How should I use the machine images and specifications?
Images show the machine form and workshop context. They do not establish finished-part accuracy, cycle time, material suitability or certificate coverage. Open the exact model’s specification table to check labels, units and configuration notes. Ask the listed contact for any missing value; an omitted value is not zero.
What information helps your contact review the application?
The operations and faces to be machined, with part dimensions and total part-and-fixture weight if known.
Material grade, blank condition, critical tolerances, surface requirements and the proposed inspection method.
Workholding concept, tool access, loading method, production quantity and any target cycle time.
Destination country, control preference, utilities and installation or training requirements.
A model choice and drawing are optional at first contact. Describe the part or operation you know. Agree a suitable channel for confidential drawings directly with your representative. Configuration, delivery, acceptance and the formal quotation are confirmed by that contact, not automatically by this website.
How are documentation and service confirmed?
Certificate resources support document review; they are not blanket approval for every model, option or destination. Confirm the exact model, certificate scope and destination-market requirements. Installation, training, spare parts, inspection and support responsibilities must be agreed for the order.
Does the largest published dimension prove that my part fits?
No. Review the complete part, fixture, tools, axis movements, loading access and clearances together. Separate maximum values are not a combined machining envelope.
Can I select a material or industry and treat the result as approved?
No. Those inputs describe the intended work. Material grade, cutting plan, required accuracy and production conditions need individual review; a category label is not qualification for an industry.
Is automation or driven tooling always included?
No. Confirm the exact equipment, interfaces, guarding and standard or optional scope for the model and order.
Can I ask a question without a model or drawing?
Yes. Start with your part or operation. Your contact can identify the information needed for a configuration discussion and confirm the quotation directly.

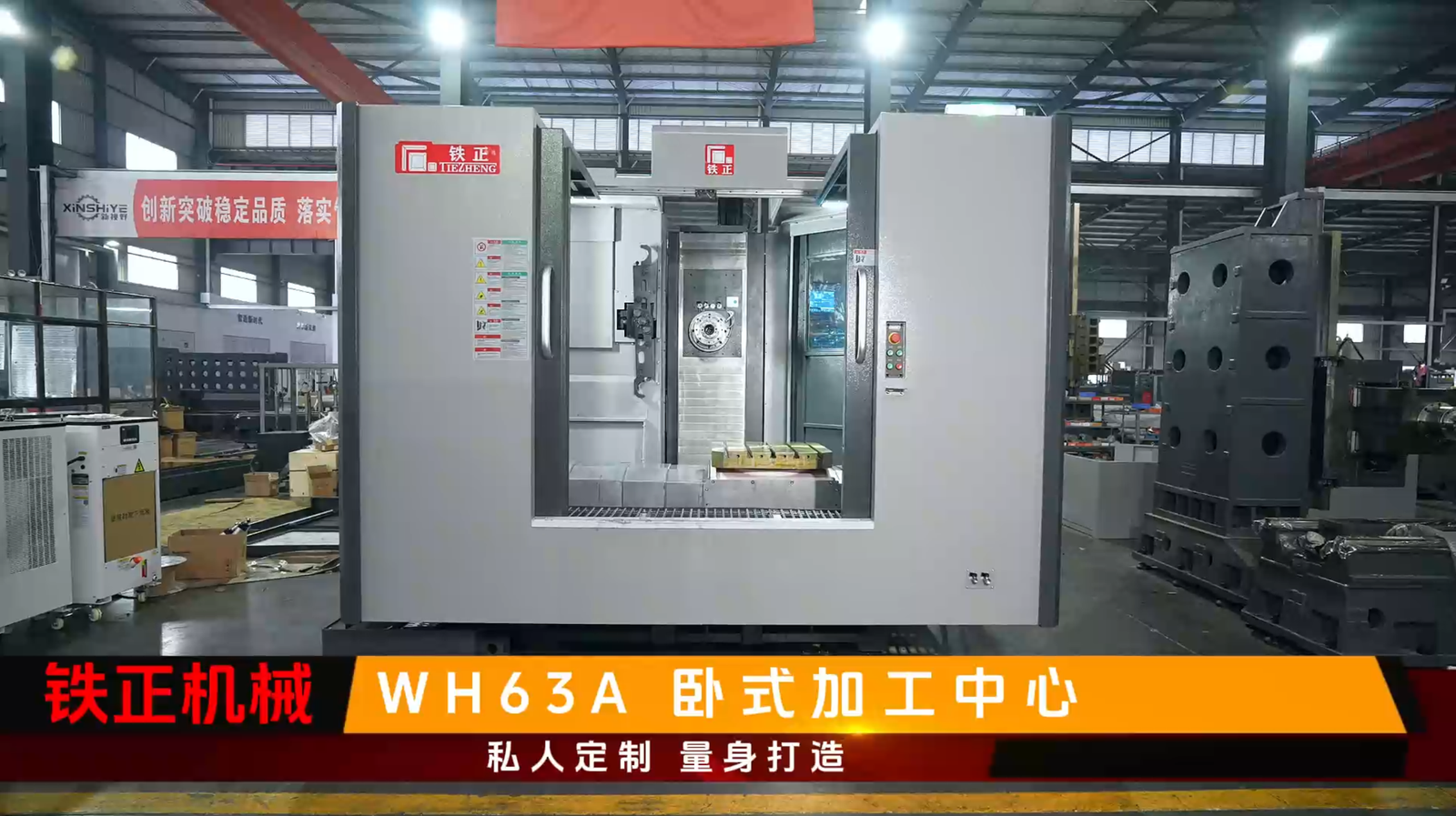

The WH63A horizontal machining center demo shows machine layout and operating context. Use the WH63A specification table together with the workpiece drawing and process requirements during model selection.
JB and JAB model specifications
Review the JB and JAB model pages for their separate axis travels and table dimensions. Similar model names do not establish interchangeable tooling, workholding or supplied equipment. Describe the faces, datums, fixture access and production quantity before choosing a configuration; material suitability and finished-part tolerance require individual confirmation.
These are separate limits, not a guaranteed simultaneous workpiece envelope. A model and drawing are optional for the first inquiry. The contact confirms the final configuration, delivery and quotation directly.
Compare the models below using their specifications, product photos and videos. Confirm the final configuration against your part drawing and production requirements.
Technical specifications. Open the model page for the complete table and chart.

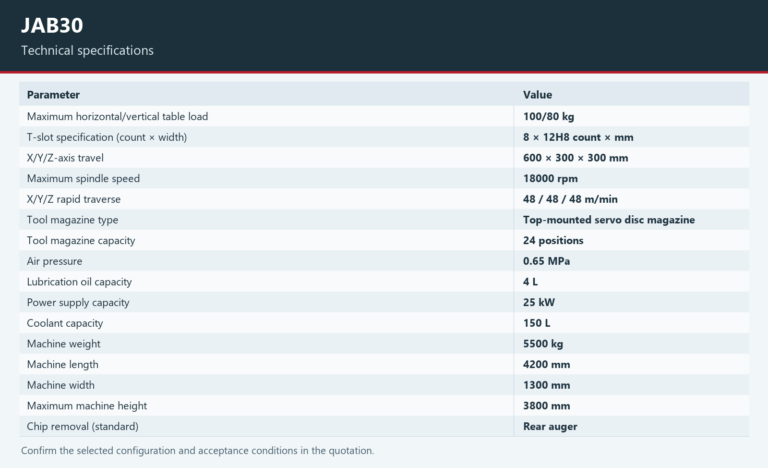

JAB30 is a horizontal machining center for assessing milling and drilling work. Its listed X/Y/Z travels are 600 × 300 × 300 mm, with a 24-position tool magazine and maximum spindle speed of 18000 rpm. Review
JAB40 is a horizontal machining center for assessing milling and drilling work. Its listed X/Y/Z travels are 800 × 400 × 350 mm, with a 24-position tool magazine and maximum spindle speed of 18000 rpm. Review

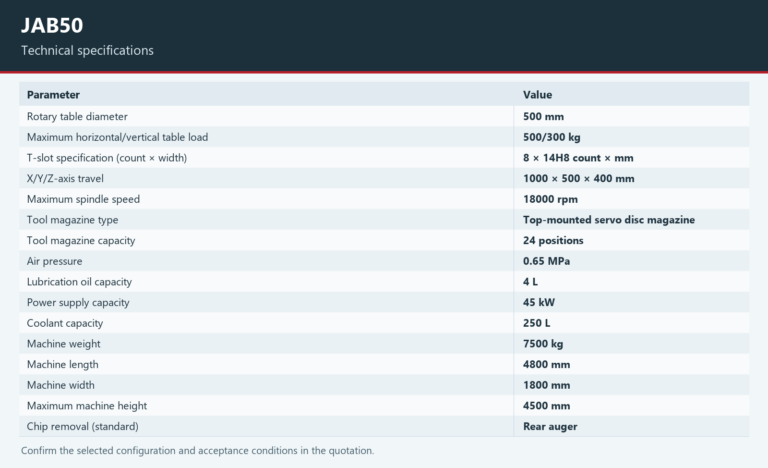

JAB50 is a horizontal machining center for assessing milling and drilling work. Its listed X/Y/Z travels are 1000 × 500 × 400 mm, with a 24-position tool magazine and maximum spindle speed of 18000 rpm. Review
JAB60 is a horizontal machining center for assessing milling and drilling work. Its listed X/Y/Z travels are 1300 × 600 × 500 mm, with a 24-position tool magazine and maximum spindle speed of 18000 rpm. Review

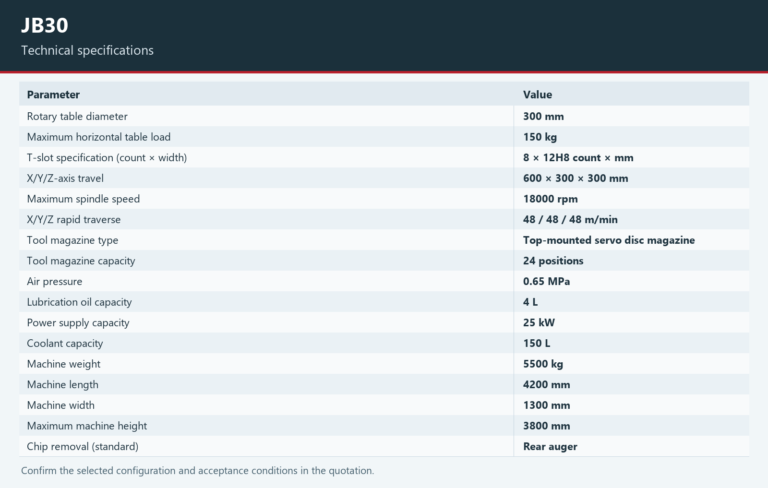

JB30 is a horizontal machining center for assessing milling and drilling work. Its listed X/Y/Z travels are 600 × 300 × 300 mm, with a 24-position tool magazine and maximum spindle speed of 18000 rpm. Review
JB40 is a horizontal machining center for assessing milling and drilling work. Its listed X/Y/Z travels are 800 × 400 × 350 mm, with a 24-position tool magazine and maximum spindle speed of 18000 rpm. Review

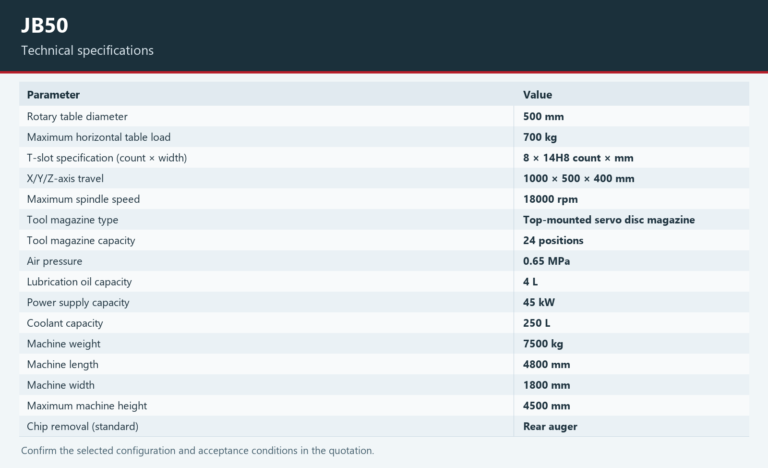

JB50 is a horizontal machining center for assessing milling and drilling work. Its listed X/Y/Z travels are 1000 × 500 × 400 mm, with a 24-position tool magazine and maximum spindle speed of 18000 rpm. Review

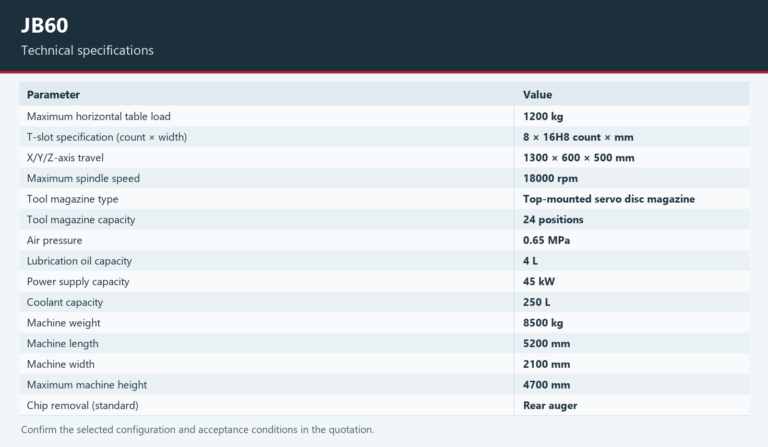

JB60 is a horizontal machining center for assessing milling and drilling work. Its listed X/Y/Z travels are 1300 × 600 × 500 mm, with a 24-position tool magazine and maximum spindle speed of 18000 rpm. Review
The Tiezheng VW100D is a vertical-horizontal machining center whose reviewed catalog column documents a 1000 x 1000 mm worktable, 2200 kg maximum load, 900 / 1500 mm maximum workpiece height / diameter entry, BT50 tool holder,

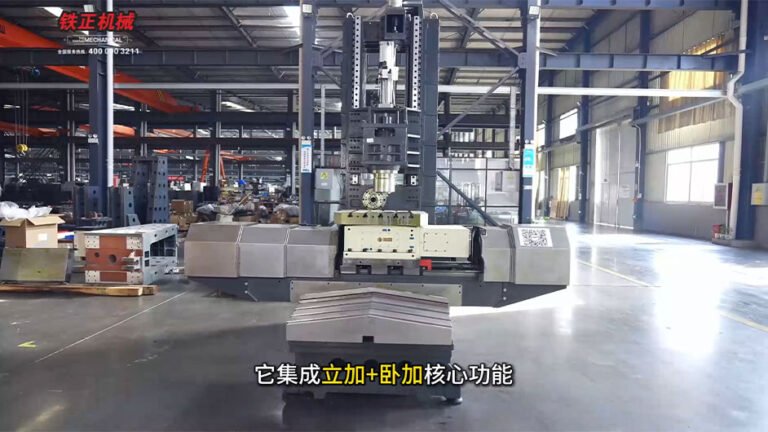

The Tiezheng VW50A is a vertical-horizontal compound machining center documented by an exact-model machine image and the reviewed VW50A parameter-sheet column. The source lists a 500 x 500 mm worktable, 600 kg load, BT40 tool holder,
The Tiezheng VW50B is a vertical-horizontal machining center whose reviewed catalog data documents a 500 x 500 mm worktable, 600 kg maximum load, 500 / 900 mm maximum workpiece height / diameter entry, BT40 tool holder,
The Tiezheng VW50C is a vertical-horizontal machining center whose reviewed catalog column documents a 500 x 500 mm worktable, 600 kg maximum load, 500 / 900 mm maximum workpiece height / diameter entry, BT40 tool holder,
The Tiezheng VW63A is a vertical-horizontal machining center with a catalog-documented 630 x 630 mm worktable, 800 kg maximum load, 600 / 1300 mm maximum workpiece height / diameter entry, BT40 tool holder, 8000 rpm standard
The Tiezheng VW63B is a vertical-horizontal machining center whose reviewed catalog column documents a 630 x 630 mm worktable, 1100 kg maximum load, 600 / 1300 mm maximum workpiece height / diameter entry, BT50 tool holder,
The Tiezheng VW63C is a vertical-horizontal machining center whose reviewed catalog column documents a 630 x 630 mm worktable, 1100 kg maximum load, 600 / 1300 mm maximum workpiece height / diameter entry, BT50 tool holder,
The Tiezheng VW63D is a vertical-horizontal machining center whose reviewed catalog column documents a 630 x 630 mm worktable, 1200 kg maximum load, 700 / 900 mm maximum workpiece height / diameter entry, BT50 tool holder,
The Tiezheng VW80A is a vertical-horizontal machining center whose reviewed catalog column documents an 800 x 800 mm worktable, 1500 kg maximum load, 800 / 1500 mm maximum workpiece height / diameter entry, BT50 tool holder,
The Tiezheng VW80B is a vertical-horizontal machining center whose reviewed catalog column documents an 800 x 800 mm worktable, 1800 kg maximum load, 800 / 1500 mm maximum workpiece height / diameter entry, BT50 tool holder,
The Tiezheng VW80C is a vertical-horizontal machining center whose reviewed catalog column documents an 800 x 800 mm worktable, 1800 kg maximum load, 800 / 1500 mm maximum workpiece height / diameter entry, BT50 tool holder,
The Tiezheng VW80D is a vertical-horizontal machining center whose reviewed catalog column documents an 800 x 800 mm worktable, 1800 kg maximum load, 800 / 1500 mm maximum workpiece height / diameter entry, BT50 tool holder,
The Tiezheng WA63 is a horizontal cross-structure machining center for buyer application screening. Published specifications confirm a 1,150 mm maximum worktable rotation diameter, 1,100/650/500 mm X/Y/Z travel, 500 kg worktable load, BT40-150 spindle taper and 10,000
The WH100A is a horizontal machining center with catalog-documented 1600/1200/1200 mm X/Y/Z travel, 3200 kg worktable load, BT50-190 spindle taper, and 4000 rpm standard belt spindle. It supports preliminary technical screening; control, tool-magazine capacity, optional configurations,
The Tiezheng WH50A is a horizontal machining center with published specifications for preliminary buyer comparison. Final configuration, application fit, tolerances, options, acceptance requirements and delivery scope are confirmed through a drawing-led request for quotation.
The Tiezheng WH63A is a horizontal machining center documented with a 630 x 630 mm worktable, 1050 x 770 x 900 mm X/Y/Z travel, 1200 kg table load, BT50-190 spindle taper and 4000/6000 rpm spindle options.
The WH80A is a horizontal machining center with catalog-documented 1300/1000/1000 mm X/Y/Z travel, 2100 kg worktable load, BT50-190 spindle taper, and 4000 rpm standard belt spindle. It supports preliminary technical screening; control, tool-magazine capacity, optional configurations,

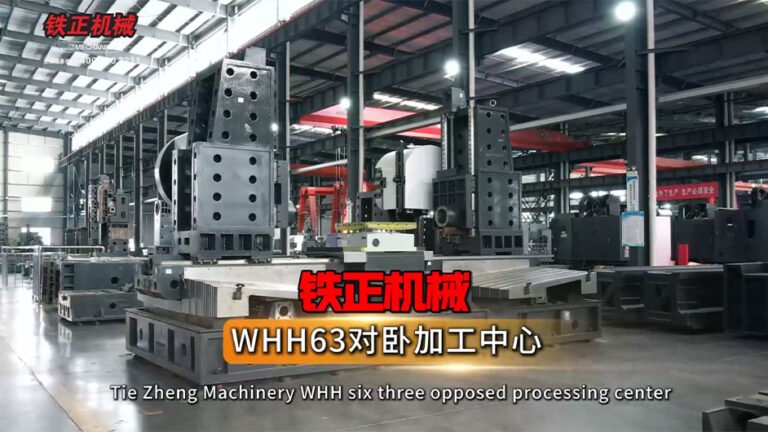

The Tiezheng WHH63 is an opposed horizontal machining center documented with a 630 x 630 mm rotary worktable, an optional 1300 x 600 mm fixed table, 1000 x 700 x 900 mm X/Y/Z travel, 2500 kg
The WA50 is listed under horizontal machining centers in the Tiezheng catalogue. Optional rotary table size: 500 × 500 mm; Maximum table swing diameter: 900 mm. Published dimensions and spindle data do not approve a workpiece
WA63C is a horizontal machining center with X/Y/Z axis travels of 1100 / 650 / 500 mm. The listed optional rotary table measures 630×630 mm, and table load capacity is 500 kg. Consider it for milling,
The WA80 is listed under horizontal machining centers in the Tiezheng catalogue. Optional rotary table size: 800 × 800 mm; Maximum table swing diameter: 1400 mm. Published dimensions and spindle data do not approve a workpiece

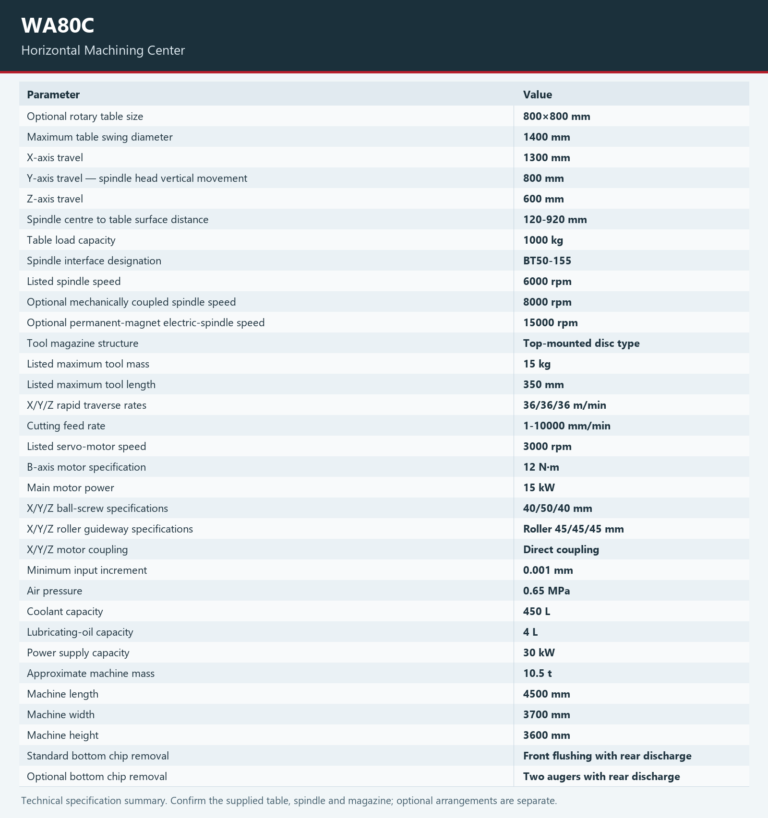

WA80C is a horizontal machining center with X/Y/Z axis travels of 1300 / 800 / 600 mm. The listed optional rotary table measures 800×800 mm, and table load capacity is 1000 kg. Consider it for milling,
The WD2010C is listed under horizontal machining centers in the Tiezheng catalogue. Fixed table size: 2200 × 1000 mm; Spindle saddle arrangement: Center-mounted. Published dimensions and spindle data do not approve a workpiece setup. Compare the
The WD2016C is listed under horizontal machining centers in the Tiezheng catalogue. Fixed table size: 2200 × 1300 mm; Spindle saddle arrangement: Center-mounted. Published dimensions and spindle data do not approve a workpiece setup. Compare the
The WD2516C is listed under horizontal machining centers in the Tiezheng catalogue. Fixed table size: 2700 × 1600 mm; Spindle saddle arrangement: Center-mounted. Published dimensions and spindle data do not approve a workpiece setup. Compare the
The WD3016C is listed under horizontal machining centers in the Tiezheng catalogue. Fixed table size: 3200 × 1600 mm; Spindle saddle arrangement: Center-mounted. Published dimensions and spindle data do not approve a workpiece setup. Compare the
The WD3020C is listed under horizontal machining centers in the Tiezheng catalogue. Fixed table size: 3200 × 2000 mm; Spindle saddle arrangement: Center-mounted. Published dimensions and spindle data do not approve a workpiece setup. Compare the
The WD4020C is listed under horizontal machining centers in the Tiezheng catalogue. Fixed table size: 4200 × 2000 mm; Spindle saddle arrangement: Center-mounted. Published dimensions and spindle data do not approve a workpiece setup. Compare the
The WD4030C is listed under horizontal machining centers in the Tiezheng catalogue. Fixed table size: 4200 × 2000 mm; Spindle saddle arrangement: Center-mounted. Published dimensions and spindle data do not approve a workpiece setup. Compare the
The WD4226C is listed under horizontal machining centers in the Tiezheng catalogue. Fixed table size: 4200 × 2000 mm; Fixed table load capacity: 40 t. Published dimensions and spindle data do not approve a workpiece setup.
WH100B is a horizontal machining center with X/Y/Z axis travels of 1600 / 1200 / 1200 mm. Its listed optional table size is 1000×1000 mm, with a load capacity of 3200 kg per table. Consider it

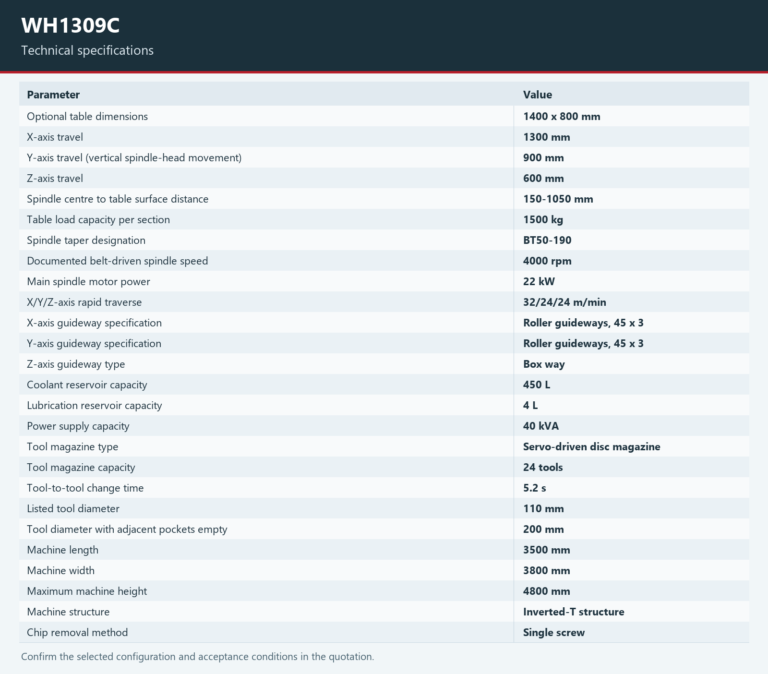

The WH1309C is a moving-column horizontal machining center with X/Y/Z travels of 1300/900/600 mm. Its optional table is listed as 1400 x 800 mm. Review travel, table size, fixture height and supported load separately. Confirm the

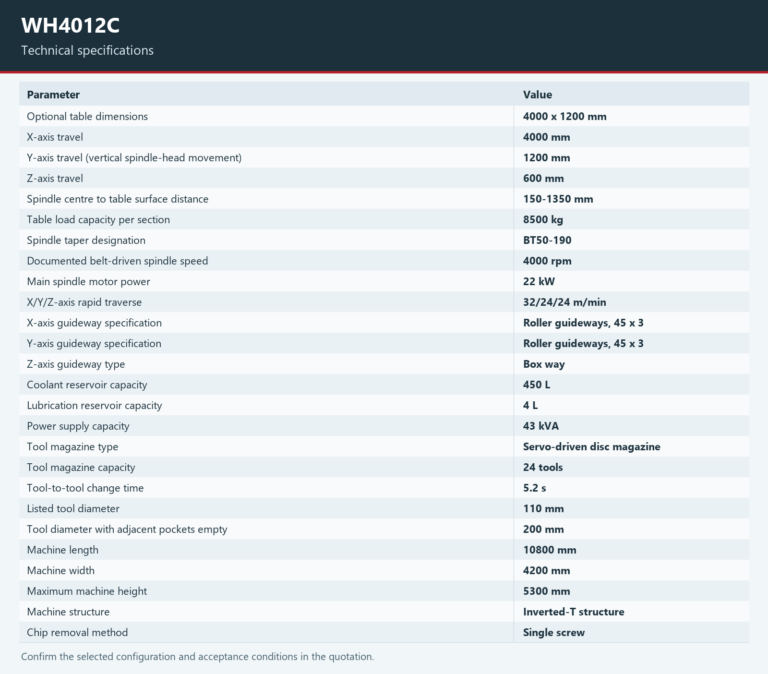

The WH4012C is a moving-column horizontal machining center with X/Y/Z travels of 4000/1200/600 mm. Its optional table is listed as 4000 x 1200 mm. Review travel, table size, fixture height and supported load separately. Confirm the

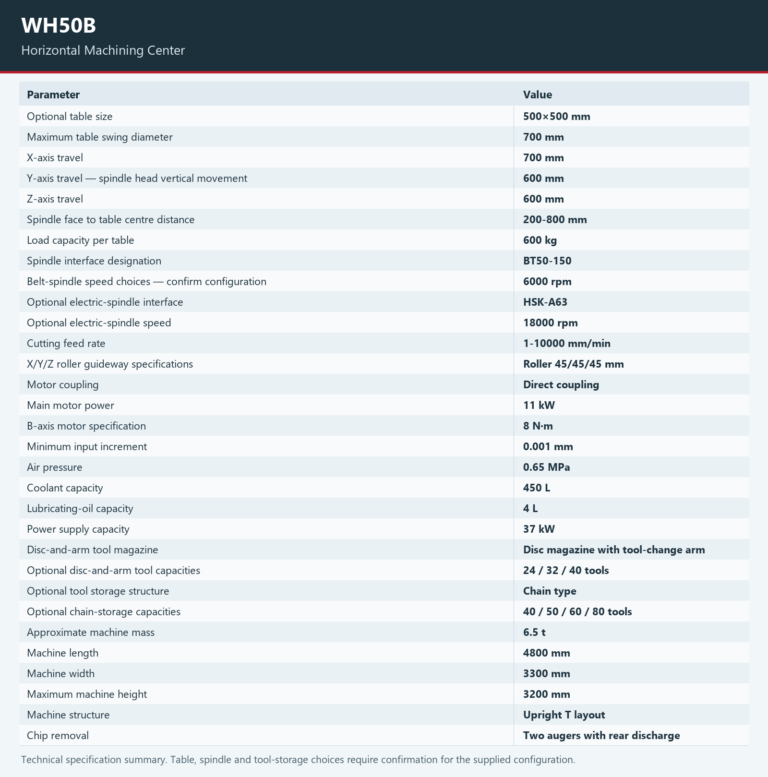

WH50B is a horizontal machining center with X/Y/Z axis travels of 700 / 600 / 600 mm. Its listed optional table size is 500×500 mm, with a load capacity of 600 kg per table. Consider it

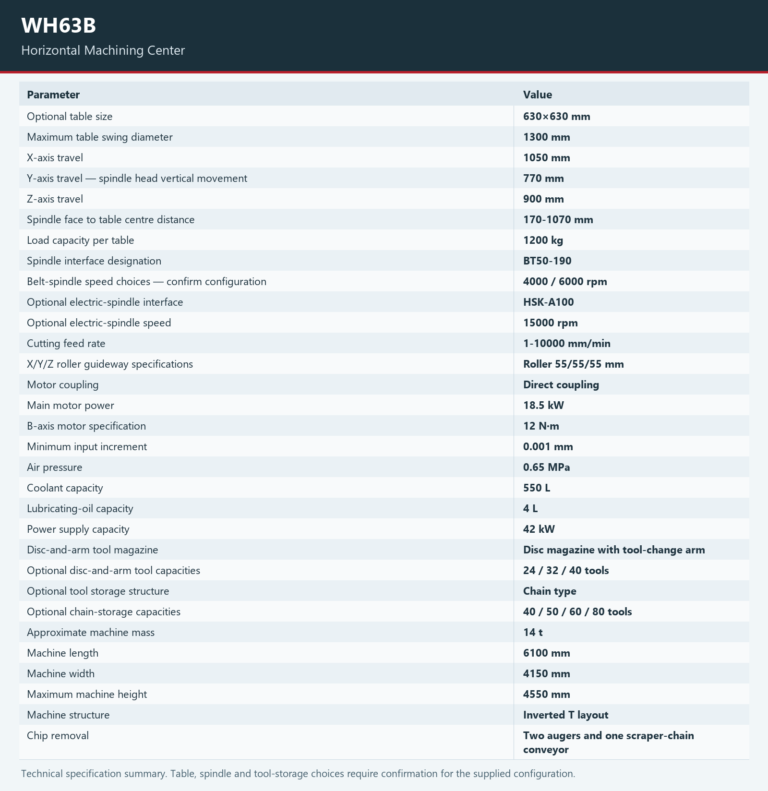

WH63B is a horizontal machining center with X/Y/Z axis travels of 1050 / 770 / 900 mm. Its listed optional table size is 630×630 mm, with a load capacity of 1200 kg per table. Consider it
WH80B is a horizontal machining center with X/Y/Z axis travels of 1300 / 1000 / 950 mm. Its listed optional table size is 800×800 mm, with a load capacity of 1700 kg per table. Consider it
The WHH100 is listed under horizontal machining centers in the Tiezheng catalogue. Rotary table size: 1000 × 1000 mm; Maximum rotary table diameter: 1600 mm. Published dimensions and spindle data do not approve a workpiece setup.

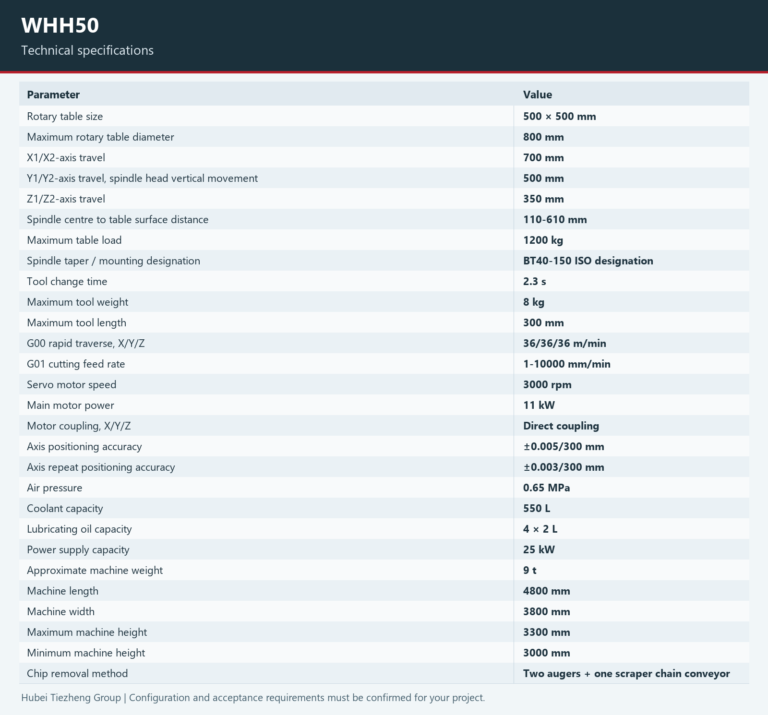

The WHH50 is listed under horizontal machining centers in the Tiezheng catalogue. Rotary table size: 500 × 500 mm; Maximum rotary table diameter: 800 mm. Published dimensions and spindle data do not approve a workpiece setup.

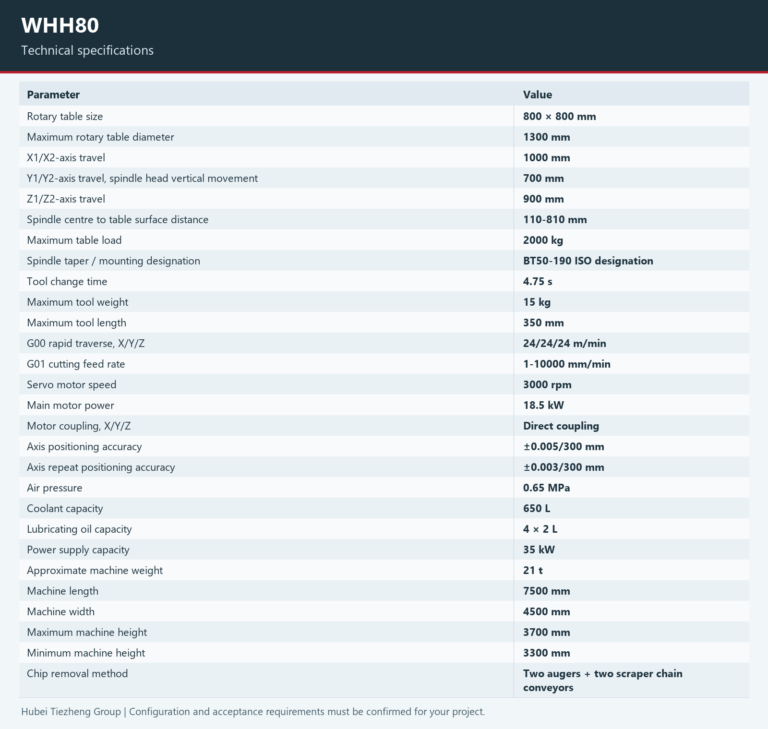

The WHH80 is listed under horizontal machining centers in the Tiezheng catalogue. Rotary table size: 800 × 800 mm; Maximum rotary table diameter: 1300 mm. Published dimensions and spindle data do not approve a workpiece setup.
