What is the Tiezheng WHH63?

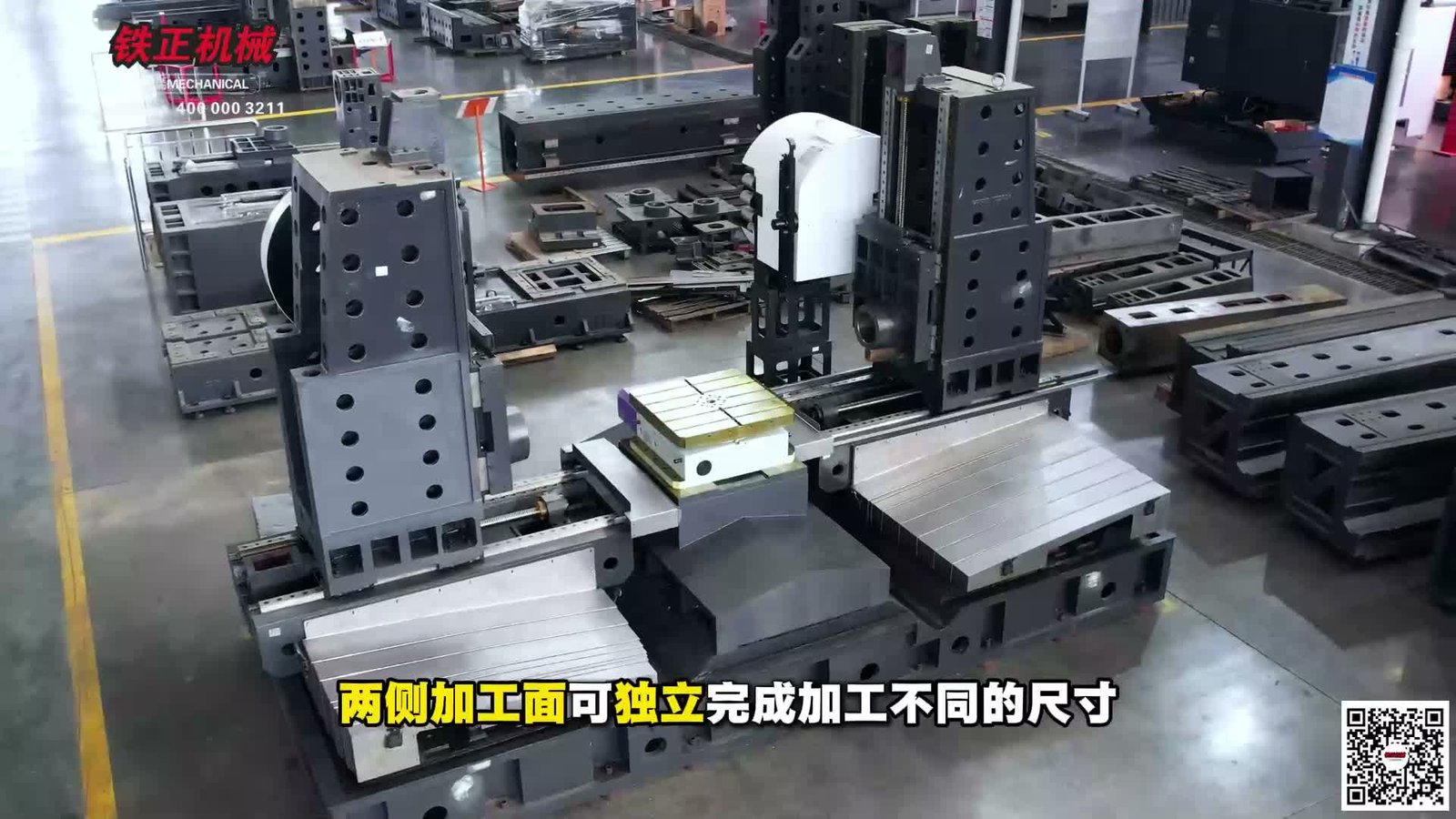

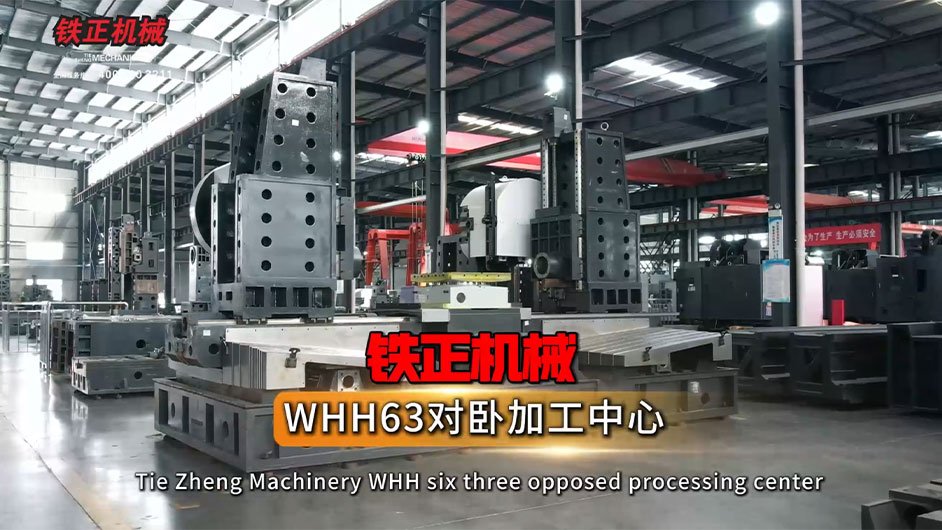

The WHH63 is an opposed horizontal machining center documented by an exact-model overview and the WHH63 column in the reviewed WHH Series matrix. The Chinese-language factory overview and its derived still show the opposed machine structure in Tiezheng factory context. Final process suitability depends on the part drawing, fixture, cutter access and acceptance requirements.
Which WHH63 work envelope is documented?

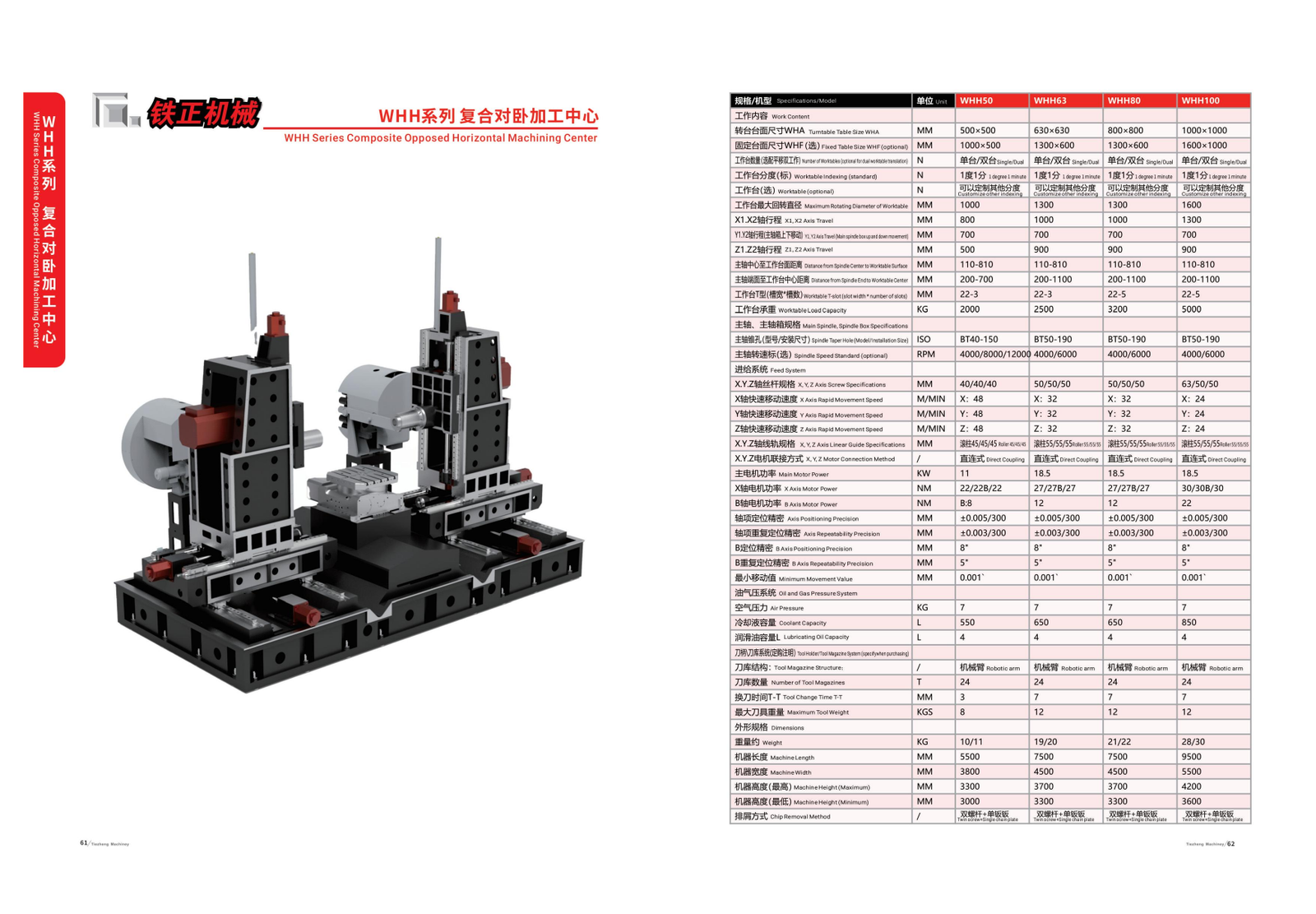

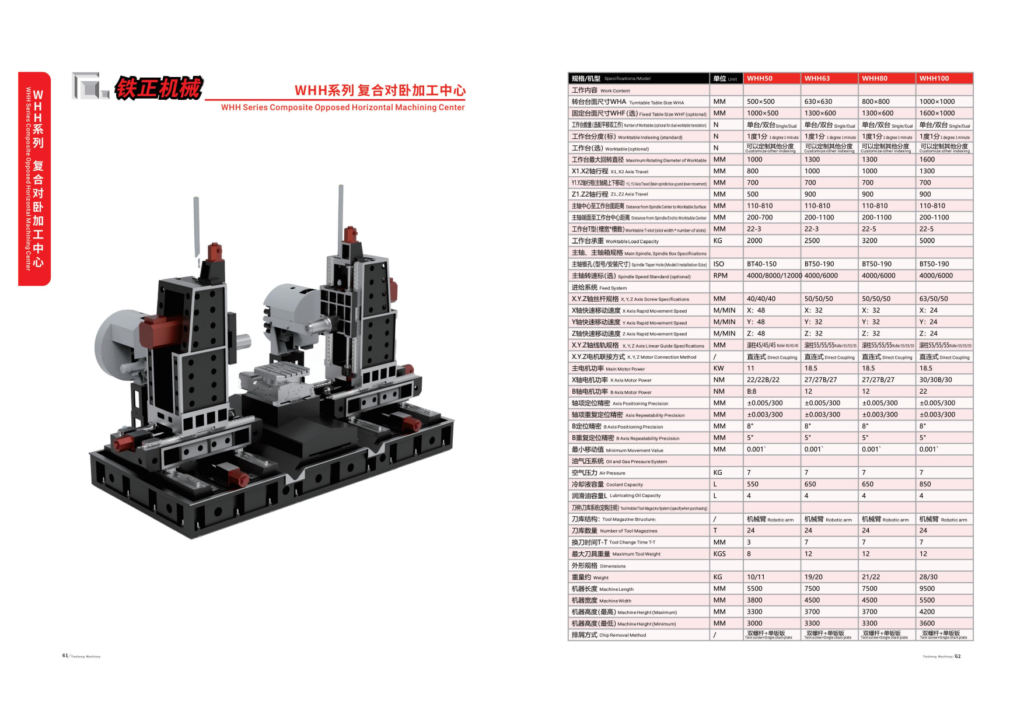

The reviewed matrix lists a 630 x 630 mm rotary worktable, an optional 1300 x 600 mm fixed table, 1000 x 700 x 900 mm X/Y/Z travel, a 110-810 mm spindle-center-to-worktable range, a 200-1100 mm spindle-end-to-worktable-center range and 2500 kg worktable load.
Which spindle and motion data are source-listed?
The source lists a BT50-190 spindle taper, 4000/6000 rpm spindle options, 18.5 kW main motor, 32/32/32 m/min X/Y/Z rapid traverse and direct motor coupling. Indexing, control and any optional configuration must be confirmed in the signed quotation and technical agreement.
How should buyers compare the WHH63?
Use the source-verified rows to screen work envelope, spindle, positioning data, tool magazine, utilities and installation dimensions. Confirm the CNC control, electrical standard, workholding, tool package, coolant and chip handling, automation interfaces and acceptance method before ordering.
Which workpieces are candidates for the WHH63?
The opposed horizontal arrangement can be reviewed for parts that fit the documented envelope. Validate material, datum strategy, fixture clearance, cutter access and production target with the application team.
What should be sent for a WHH63 RFQ?
Send the part drawing, material, critical tolerances, annual volume, target cycle time, preferred control, workholding or automation requirement and destination country.
Does this page define the final supplied configuration?
No. Source-verified rows support technical comparison. The signed quotation, technical agreement and acceptance record control the final supplied configuration.
Which Tiezheng WHH63 specifications should buyers check?
The published Tiezheng WHH63 specifications include Rotary worktable surface dimensions: 630 x 630 mm; Optional fixed worktable dimensions: 1300 x 600 mm; X-axis travel: 1000 mm. Treat travel, cutting capacity, workholding clearance and load as separate limits. Use the full specification table to check the proposed configuration; these values do not by themselves establish material suitability, achievable part tolerance or cycle time.
Read the full Tiezheng WHH63 specification table.
Does this specification confirm suitability for my industry?
Industry labels alone do not establish a machining process. Start with the dimensions, operations and material information you know; a drawing can follow after the first contact. Confirm material grade and hardness, tolerances, stock condition, production volume and fixture requirements with the contact before agreeing the supplied configuration.
How can I compare this model and request a quotation?
Compare up to three models by the same specification label and unit. An omitted value is not zero, and an optional value is not a standard configuration. Keep the model name with your inquiry so the sales team can review the correct machine.
Confirm the WHH63 configuration for your part
Use the published specifications to shortlist this model, then confirm the configuration with the contact listed on this site. Axis travel, workpiece capacity and table load describe different limits; they do not establish finished-part tolerance, material suitability or cycle time. A drawing is optional for the first contact. Machine prices and formal quotations are provided directly by the contact, not by this website.
- Check the published data. Read the available specification labels, units and configuration notes. Ask the contact for missing technical data for this exact model. An omitted value is not zero.
- Confirm the supplied configuration. Ask the contact for configuration-specific technical information. Confirm standard and optional equipment, tooling, workholding and acceptance requirements; do not assume an unlisted feature is included.
- Discuss your requirement. Start with the dimensions and operations you know. Agree a suitable channel for confidential drawings directly with the contact.
Does submitting an inquiry confirm the machine or a quotation?
No. An inquiry starts a discussion. The contact must confirm the proposed configuration and commercial terms with you; submitting a form is not machine acceptance or a formal quotation.
Discuss WHH63 with the contact
