What is this machine used for?
What is the Tiezheng WH63A?

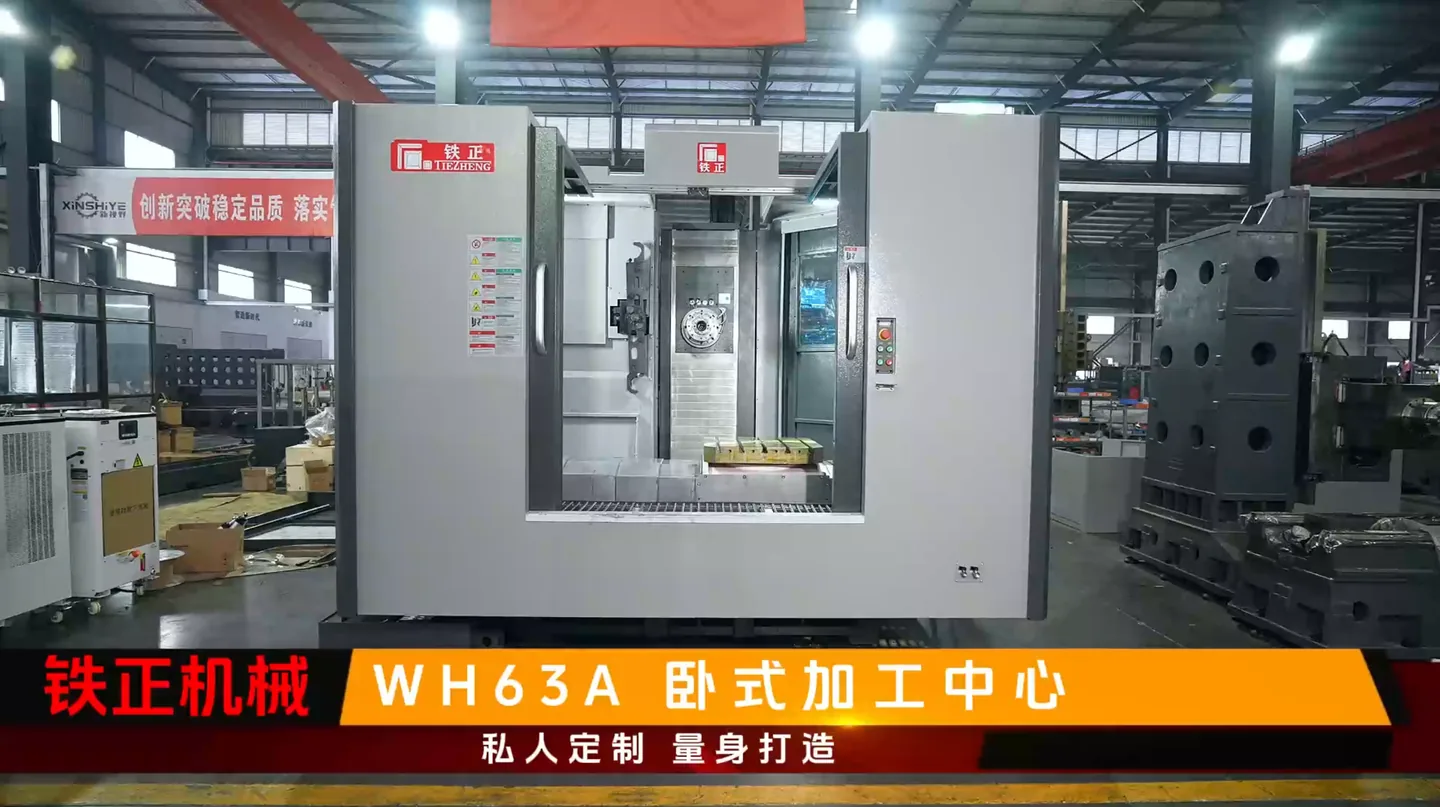

The WH63A is a horizontal machining center with a rotary worktable and horizontal spindle layout. The reviewed factory video shows the machine enclosure, spindle area and worktable configuration. Final process suitability depends on the part drawing, fixture, cutter access and required tolerances.
Which WH63A work envelope is documented?
The reviewed matrix records a 630 x 630 mm worktable, 1050 x 770 x 900 mm X/Y/Z travel, a 120-890 mm spindle-center-to-worktable range, a 170-1070 mm spindle-end-to-worktable-center range and 1200 kg worktable load per piece.
Which spindle and motion configuration is listed?
The source lists a BT50-190 spindle taper, 4000/6000 rpm spindle options, 18.5 kW main motor, 24/24/20 m/min X/Y/Z rapid traverse and 10 m/min B-axis rapid traverse. Optional electric-spindle and gearbox entries must be confirmed in the quotation.
How should buyers compare the WH63A?
Use the source-verified rows to screen work envelope, rotary indexing, spindle, tooling, utilities and installation dimensions. Confirm the CNC control, electrical standard, fixture, tool package, coolant and chip handling, automation interfaces and acceptance criteria before ordering.
Which workpieces are candidates for the WH63A?
The horizontal spindle and indexed worktable can support multi-face access for prismatic parts that fit the documented envelope. Validate material, datum strategy, fixture clearance and required cycle with the application team.
What should be sent for a WH63A RFQ?
Send the part drawing, material, critical tolerances, annual volume, target cycle time, preferred control, workholding or automation requirement and destination country.
Does the matrix define the final supplied configuration?
No. Source-verified rows support comparison. The signed quotation, technical agreement and acceptance record control the final supplied configuration.
Which Tiezheng WH63A specifications should buyers check?
The published Tiezheng WH63A specifications include Worktable surface dimensions: 630 x 630 mm; X-axis travel: 1050 mm; Z-axis travel: 900 mm. Treat travel, cutting capacity, workholding clearance and load as separate limits. Use the full specification table to check the proposed configuration; these values do not by themselves establish material suitability, achievable part tolerance or cycle time.

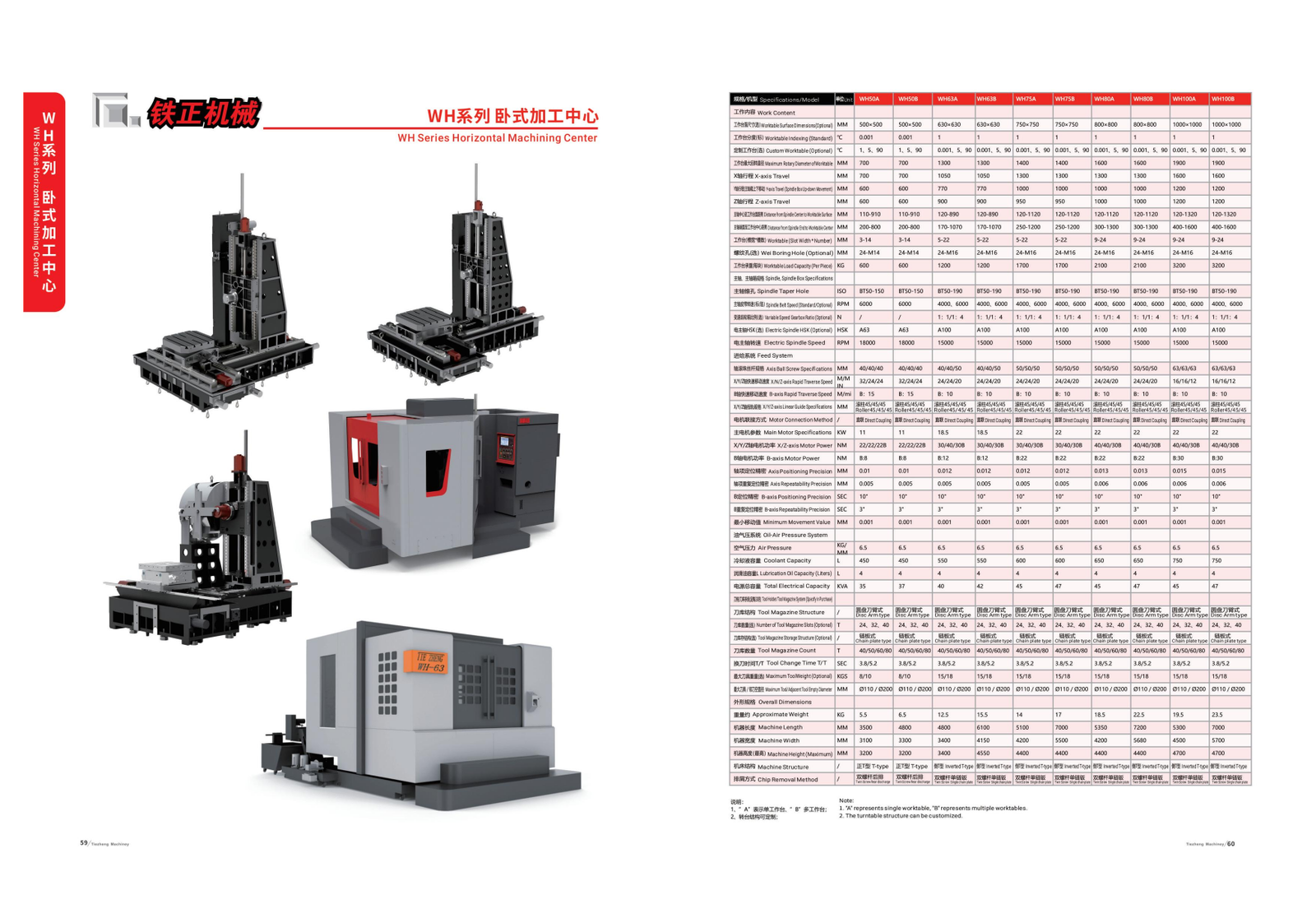

Read the full Tiezheng WH63A specification table.
Does this specification confirm suitability for my industry?
Industry labels alone do not establish a machining process. Start with the dimensions, operations and material information you know; a drawing can follow after the first contact. Confirm material grade and hardness, tolerances, stock condition, production volume and fixture requirements with the contact before agreeing the supplied configuration.
How can I compare this model and request a quotation?
Compare up to three models by the same specification label and unit. An omitted value is not zero, and an optional value is not a standard configuration. Keep the model name with your inquiry so the sales team can review the correct machine.
Confirm the WH63A configuration for your part
Use the published specifications to shortlist this model, then confirm the configuration with the contact listed on this site. Axis travel, workpiece capacity and table load describe different limits; they do not establish finished-part tolerance, material suitability or cycle time. A drawing is optional for the first contact. Machine prices and formal quotations are provided directly by the contact, not by this website.
- Check the published data. Read the available specification labels, units and configuration notes. Ask the contact for missing technical data for this exact model. An omitted value is not zero.
- Confirm the supplied configuration. Ask the contact for configuration-specific technical information. Confirm standard and optional equipment, tooling, workholding and acceptance requirements; do not assume an unlisted feature is included.
- Discuss your requirement. Start with the dimensions and operations you know. Agree a suitable channel for confidential drawings directly with the contact.
Does submitting an inquiry confirm the machine or a quotation?
No. An inquiry starts a discussion. The contact must confirm the proposed configuration and commercial terms with you; submitting a form is not machine acceptance or a formal quotation.
Discuss WH63A with the contact
