What is the Tiezheng VW50A?

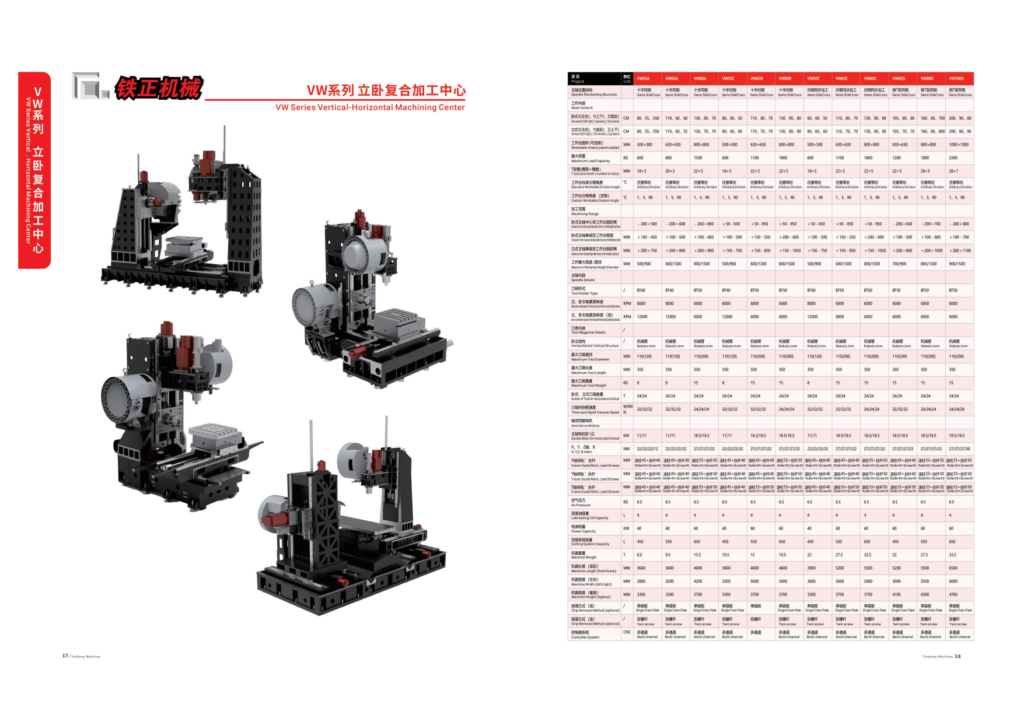

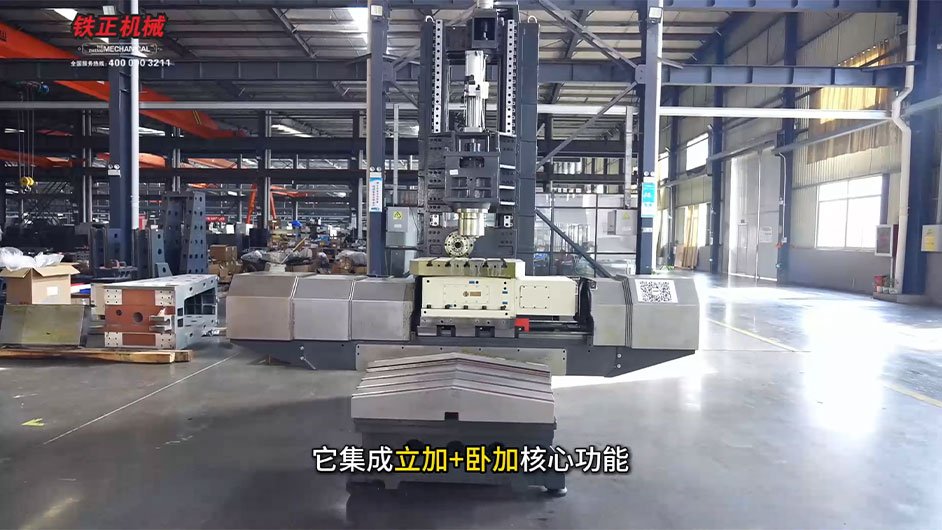

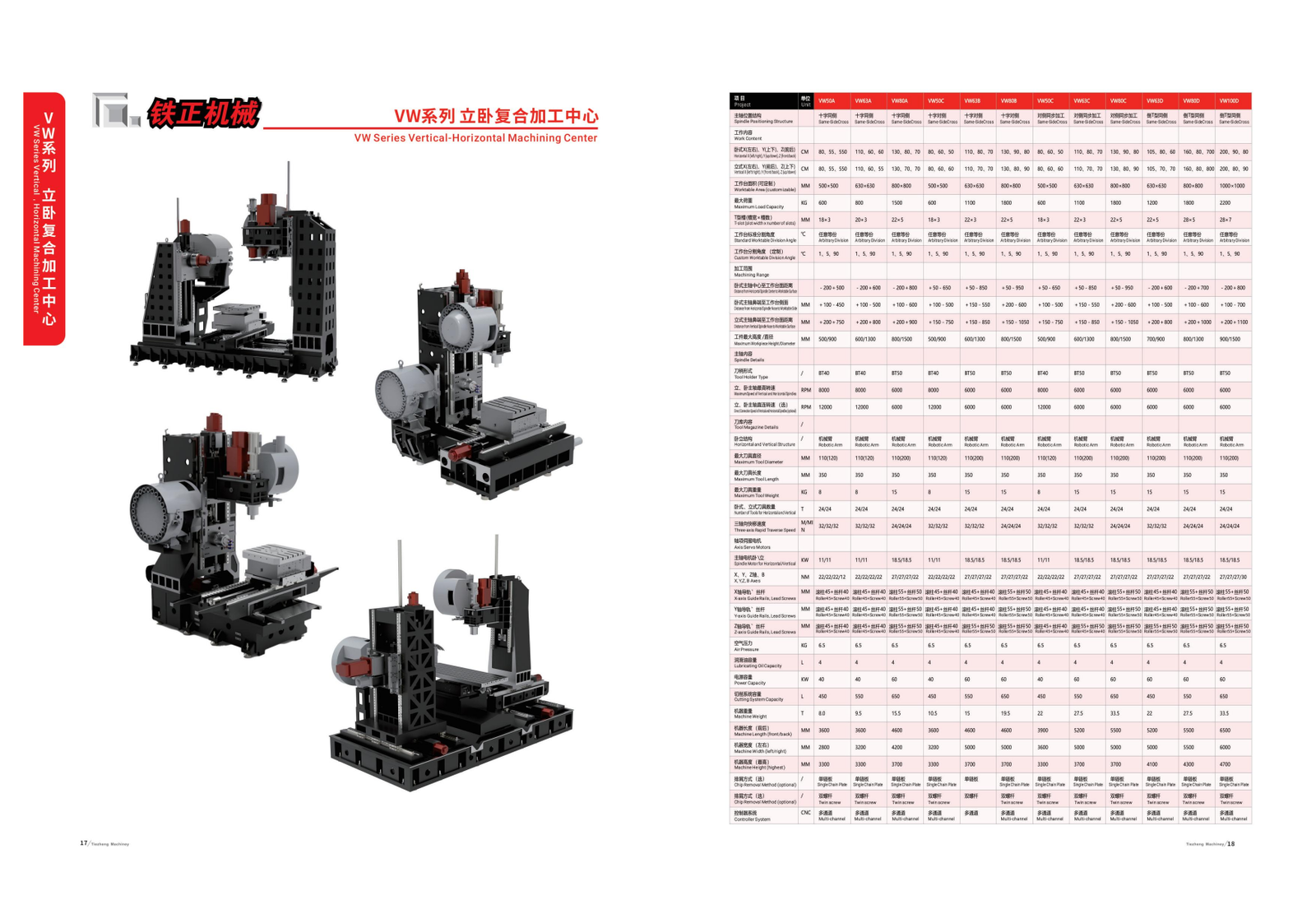

The VW50A is a vertical-horizontal compound machining center documented by a direct source image and the reviewed VW50A column in the VW Series parameter sheet. The public values below support technical screening; part suitability and the final supplied configuration require drawing and RFQ review.
Which worktable and workpiece limits are source-listed?
The reviewed source lists a 500 x 500 mm worktable, 600 kg maximum worktable load and a 500 / 900 mm maximum workpiece height / diameter entry. Buyers should confirm fixture height, rotary clearance, tool access and the meaning of the paired workpiece value for the actual part.
Which spindle and tool data are documented?
The VW50A column lists a BT40 tool holder, 8000 rpm standard vertical / horizontal spindle speed, 12000 rpm optional direct-drive speed, robotic-arm tool-magazine structure, 24 / 24 horizontal and vertical tool positions, 110 (120) mm maximum tool diameter, 350 mm tool length and 8 kg tool weight.
Which motion and installation data can buyers compare?
The source lists 32/32/32 m/min X/Y/Z rapid traverse, 11 / 11 kW horizontal / vertical spindle motor power, 8.0 t machine weight and 3600 x 2800 x 3300 mm length, width and maximum height. Utility, foundation, shipping and site-access requirements must be confirmed for the ordered configuration.
How should buyers compare the VW50A?
Use the approved rows to screen worktable, workpiece envelope, spindle, tooling, motion, utilities and installation footprint. Confirm control, workholding, chip removal, electrical standard, automation interfaces and acceptance method in the signed quotation and technical agreement.
What should be sent for a VW50A RFQ?
Send the part drawing, material, critical tolerances, annual volume, target cycle time, required operations, preferred control, workholding or automation requirement and destination country.
Does this page define the final supplied machine?
No. It presents reviewed source values for comparison. The signed quotation, technical agreement and acceptance record control the final supplied configuration.
Which Tiezheng VW50A specifications should buyers check?
The published Tiezheng VW50A specifications include Maximum worktable load capacity: 600 kg; Standard vertical / horizontal spindle speed: 8000 rpm; Optional direct-drive vertical / horizontal spindle speed: 12000 rpm. Treat travel, cutting capacity, workholding clearance and load as separate limits. Use the full specification table to check the proposed configuration; these values do not by themselves establish material suitability, achievable part tolerance or cycle time.
Read the full Tiezheng VW50A specification table.
Does this specification confirm suitability for my industry?
Industry labels alone do not establish a machining process. Start with the dimensions, operations and material information you know; a drawing can follow after the first contact. Confirm material grade and hardness, tolerances, stock condition, production volume and fixture requirements with the contact before agreeing the supplied configuration.
How can I compare this model and request a quotation?
Compare up to three models by the same specification label and unit. An omitted value is not zero, and an optional value is not a standard configuration. Keep the model name with your inquiry so the sales team can review the correct machine.
Confirm the VW50A configuration for your part
Use the published specifications to shortlist this model, then confirm the configuration with the contact listed on this site. Axis travel, workpiece capacity and table load describe different limits; they do not establish finished-part tolerance, material suitability or cycle time. A drawing is optional for the first contact. Machine prices and formal quotations are provided directly by the contact, not by this website.
- Check the published data. Read the available specification labels, units and configuration notes. Ask the contact for missing technical data for this exact model. An omitted value is not zero.
- Confirm the supplied configuration. Ask the contact for configuration-specific technical information. Confirm standard and optional equipment, tooling, workholding and acceptance requirements; do not assume an unlisted feature is included.
- Discuss your requirement. Start with the dimensions and operations you know. Agree a suitable channel for confidential drawings directly with the contact.
Does submitting an inquiry confirm the machine or a quotation?
No. An inquiry starts a discussion. The contact must confirm the proposed configuration and commercial terms with you; submitting a form is not machine acceptance or a formal quotation.
