What is this machine used for?
What is the Tiezheng V2010C used for?

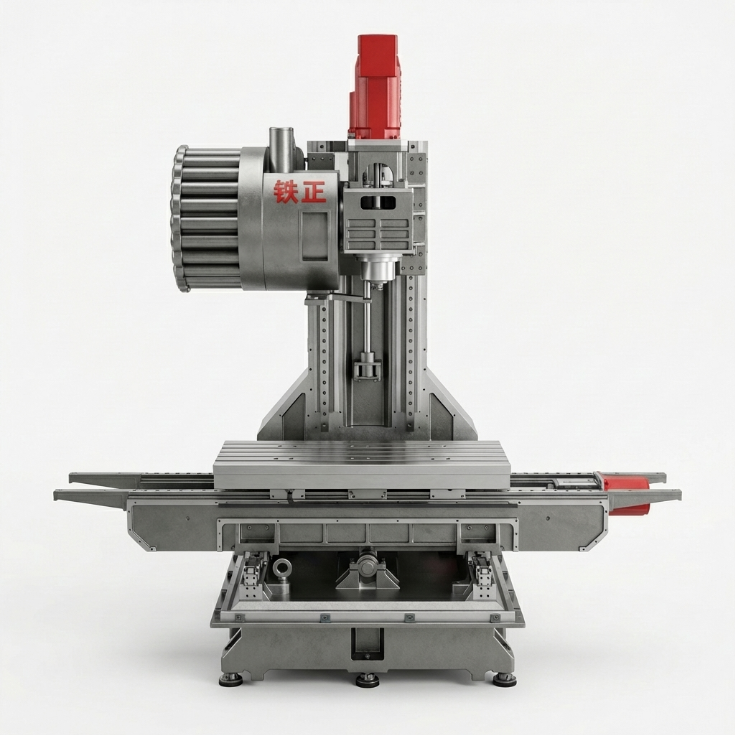

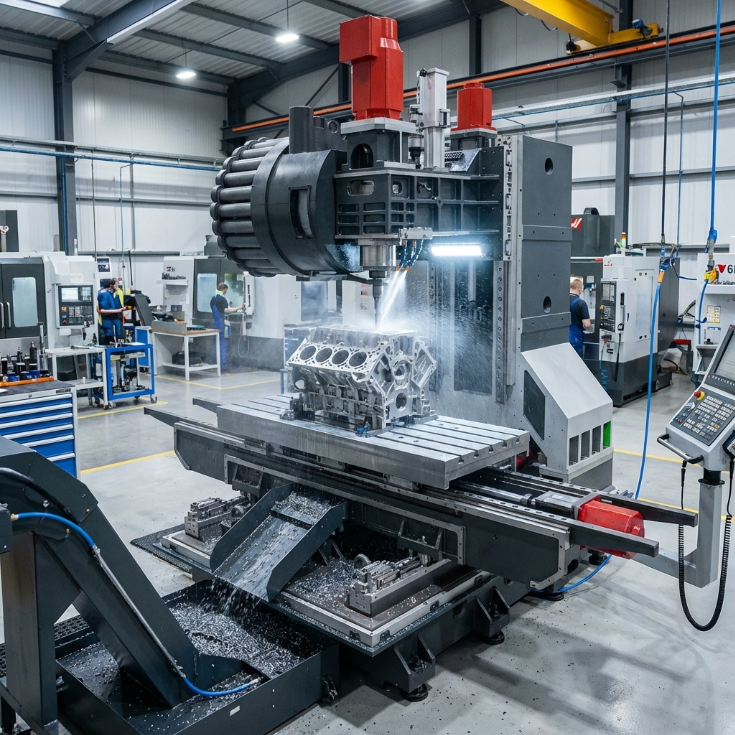

The V2010C is a three-axis vertical machining center for milling, drilling and tapping work that fits its reviewed table and travel envelope. Final process suitability depends on the part drawing, material, workholding, cutter access and tolerance requirements.
Which V2010C configuration is documented?

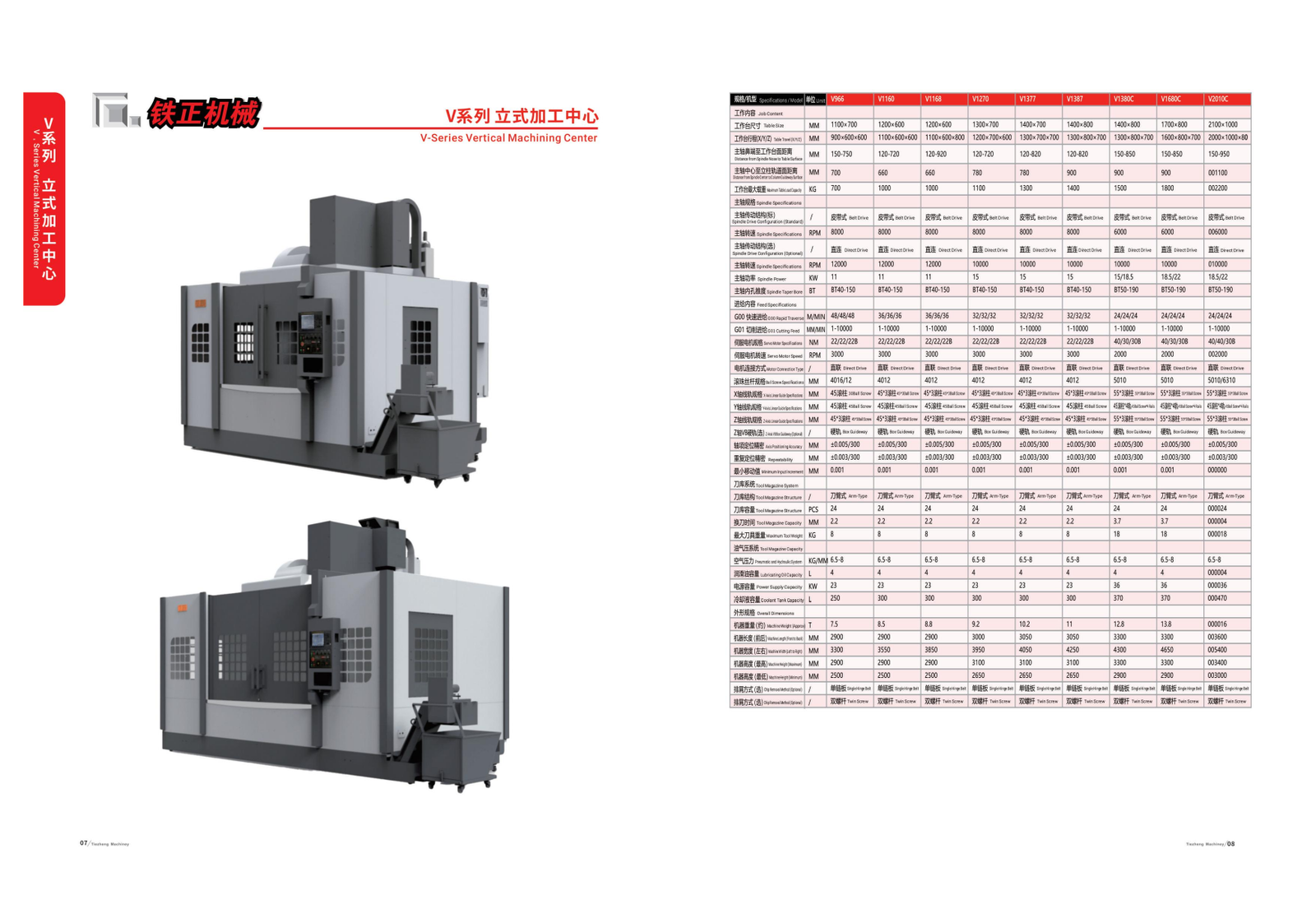

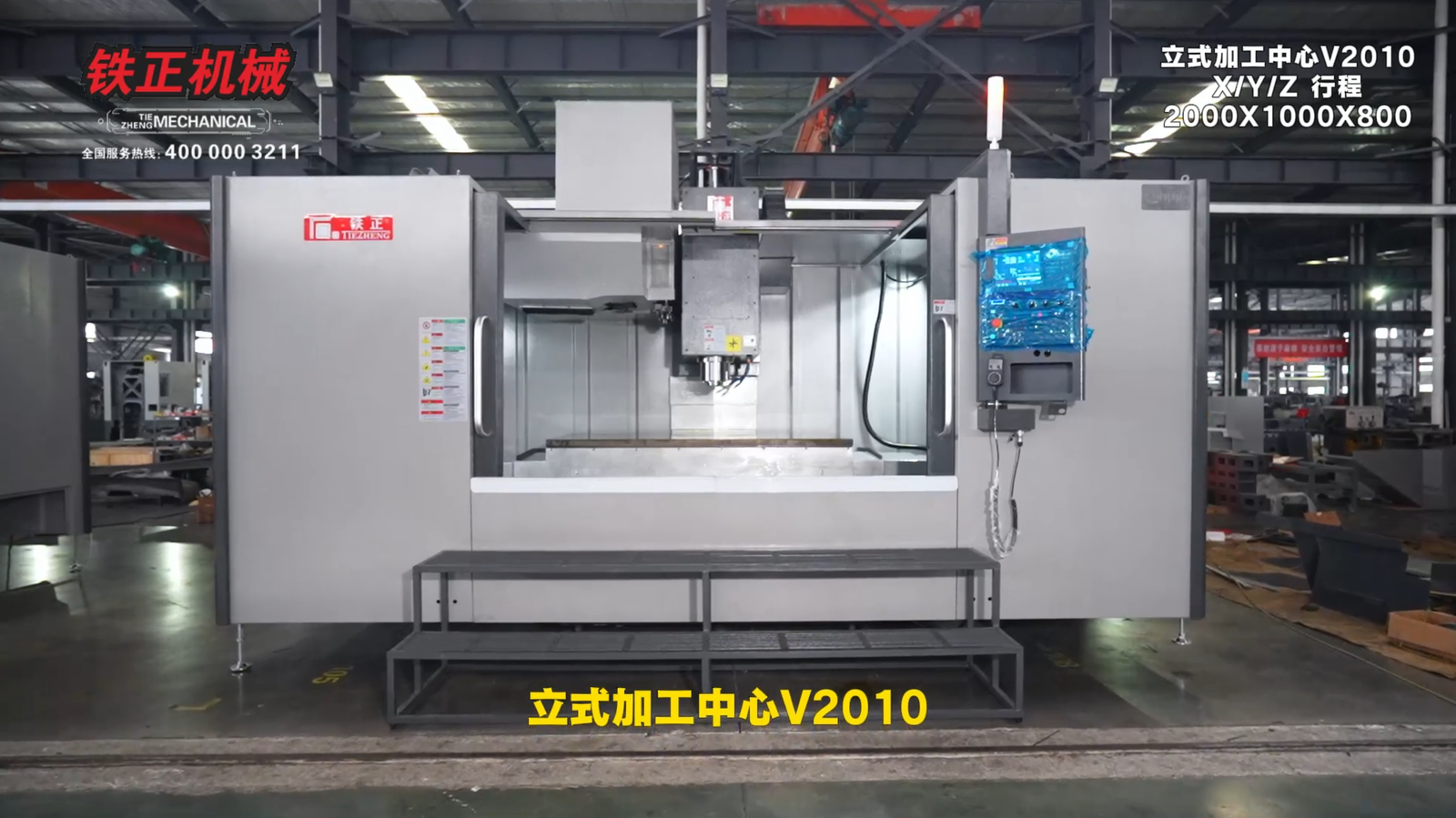

The bound Tiezheng parameter sheet records a 2100 x 1000 mm table, 2000 x 1000 x 800 mm X/Y/Z travel, 2200 kg maximum table load and an 18.5/22 kW BT50 spindle. A 6,000 rpm belt-drive spindle is standard in the sheet, while a 10,000 rpm direct-drive spindle is listed as an option.
How should buyers use these specifications?
Use the published values for model comparison and RFQ preparation. The final quotation and acceptance record should confirm the selected CNC control, tooling, chip and coolant handling, electrical standard, optional equipment and any drawing-led process changes.
What should be sent for a V2010C RFQ?
Send the part drawing, material, critical tolerances, annual volume, target cycle time, preferred control, automation requirement and destination country.
Is the optional spindle included by default?
No. The 10,000 rpm direct-drive spindle is identified as an optional configuration in the source parameter sheet and must be confirmed in the quotation.

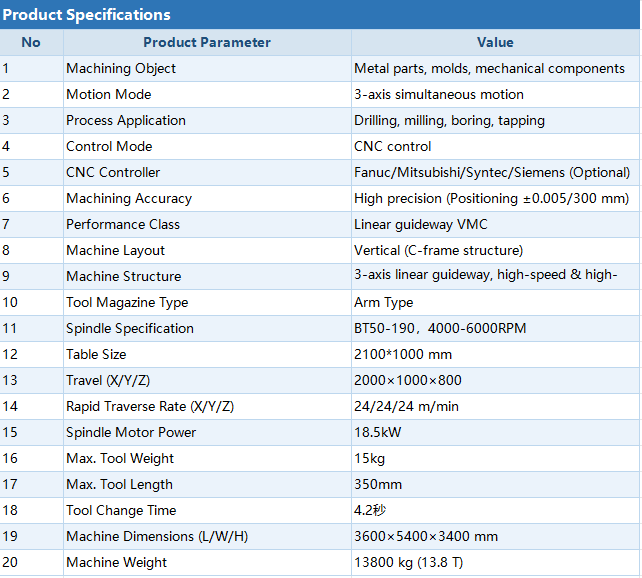

Which Tiezheng V2010C specifications should buyers check?
The published Tiezheng V2010C specifications include Table size: 2100 x 1000 mm; X/Y/Z-axis travel: 2000 x 1000 x 800 mm; Maximum table load: 2200 kg. Treat travel, cutting capacity, workholding clearance and load as separate limits. Use the full specification table to check the proposed configuration; these values do not by themselves establish material suitability, achievable part tolerance or cycle time.

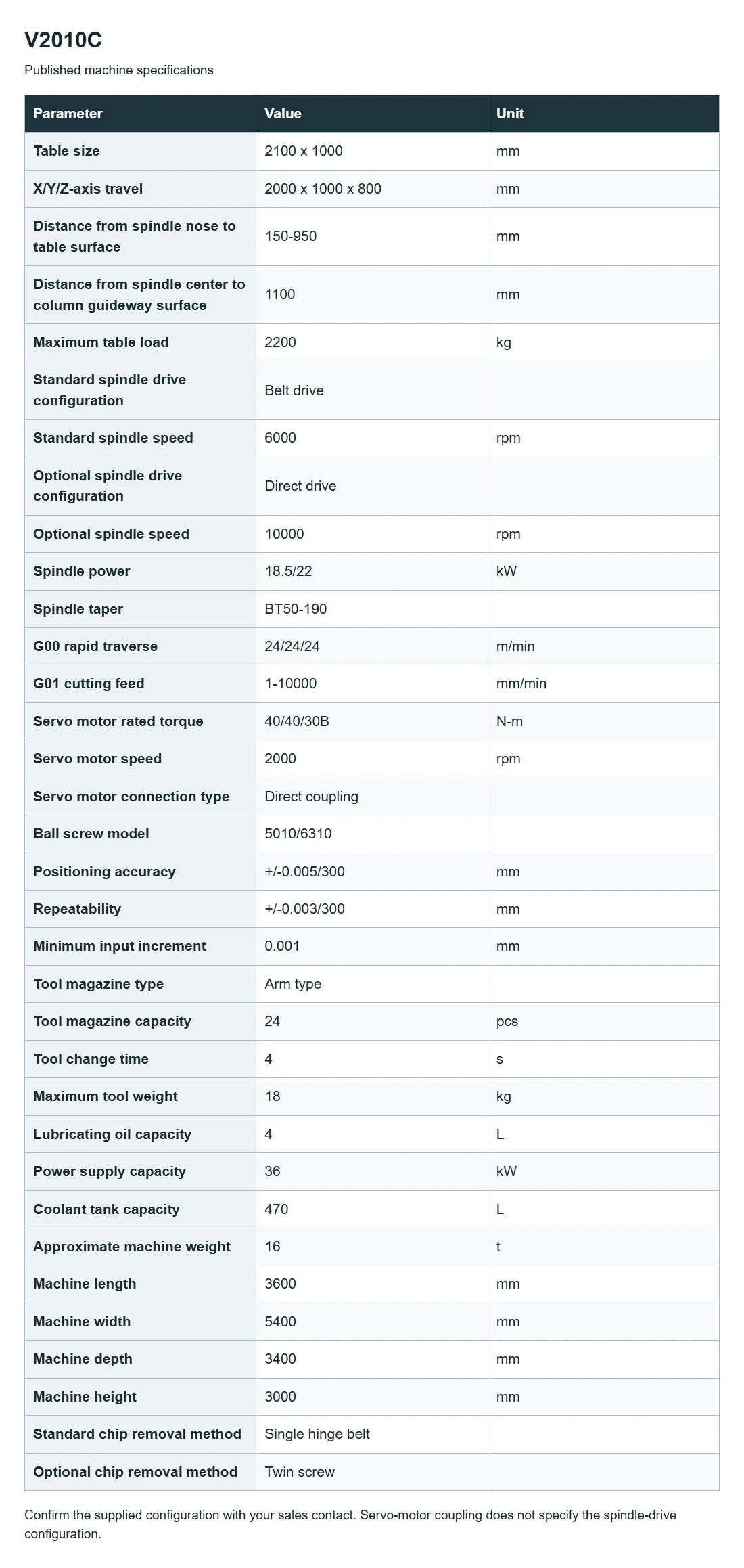

Read the full Tiezheng V2010C specification table.
Does this specification confirm suitability for my industry?
Industry labels alone do not establish a machining process. Start with the dimensions, operations and material information you know; a drawing can follow after the first contact. Confirm material grade and hardness, tolerances, stock condition, production volume and fixture requirements with the contact before agreeing the supplied configuration.
How can I compare this model and request a quotation?
Compare up to three models by the same specification label and unit. An omitted value is not zero, and an optional value is not a standard configuration. Keep the model name with your inquiry so the sales team can review the correct machine.
Confirm the V2010C configuration for your part
Use the published specifications to shortlist this model, then confirm the configuration with the contact listed on this site. Axis travel, workpiece capacity and table load describe different limits; they do not establish finished-part tolerance, material suitability or cycle time. A drawing is optional for the first contact. Machine prices and formal quotations are provided directly by the contact, not by this website.
- Check the published data. Read the available specification labels, units and configuration notes. Ask the contact for missing technical data for this exact model. An omitted value is not zero.
- Confirm the supplied configuration. Ask the contact for configuration-specific technical information. Confirm standard and optional equipment, tooling, workholding and acceptance requirements; do not assume an unlisted feature is included.
- Discuss your requirement. Start with the dimensions and operations you know. Agree a suitable channel for confidential drawings directly with the contact.
Does submitting an inquiry confirm the machine or a quotation?
No. An inquiry starts a discussion. The contact must confirm the proposed configuration and commercial terms with you; submitting a form is not machine acceptance or a formal quotation.
Discuss V2010C with the contact
