What is this machine used for?
What is the Tiezheng V1680C used for?

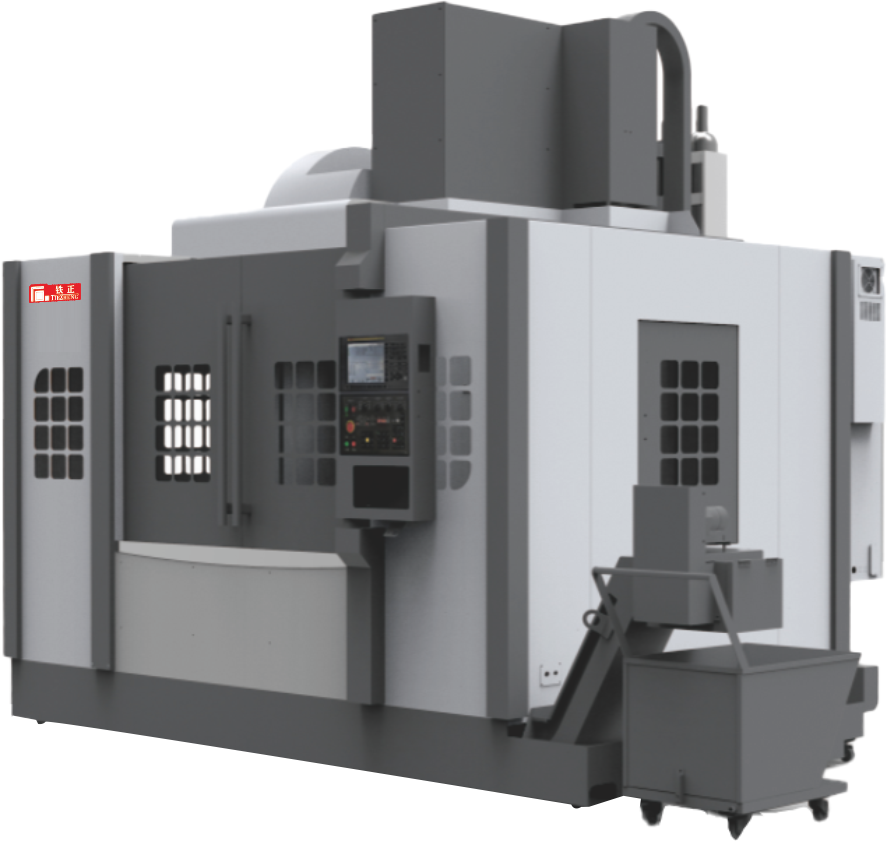

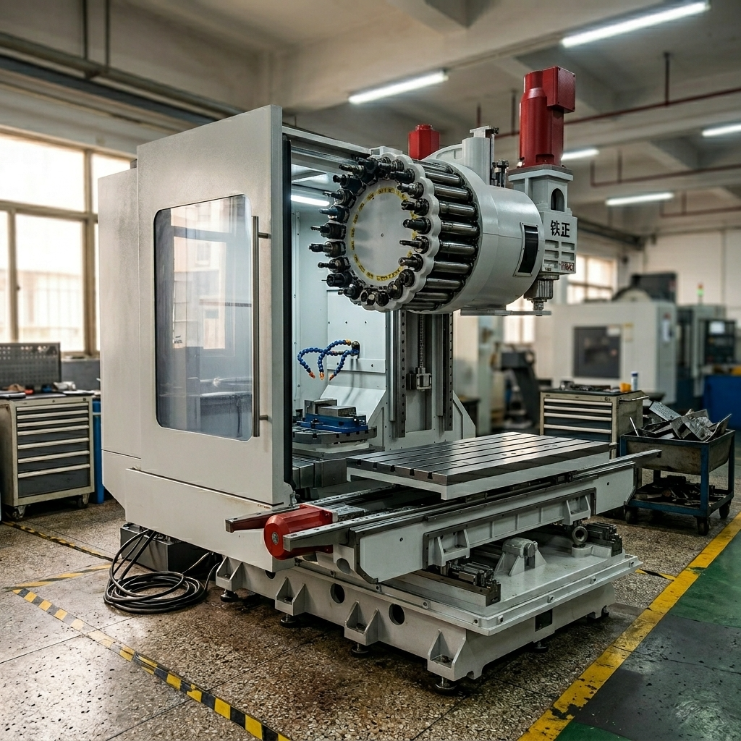

The V1680C is a three-axis vertical machining center for milling, drilling and tapping work that fits its reviewed table and travel envelope. Final process suitability depends on the part drawing, material, workholding, cutter access and tolerance requirements.
Which V1680C configuration is documented?

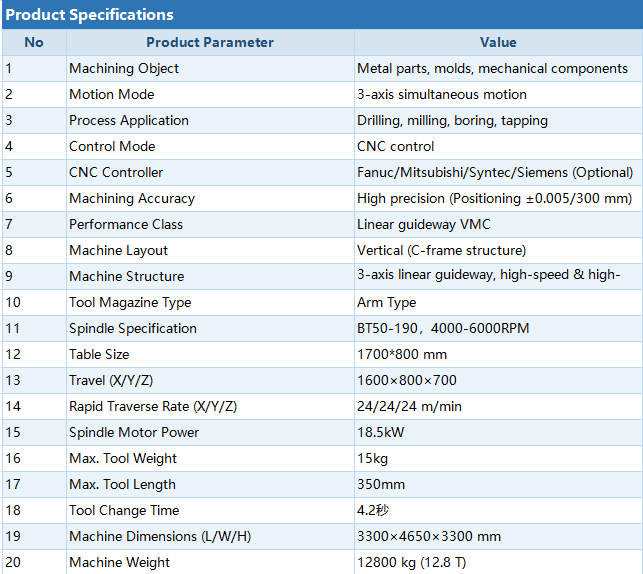

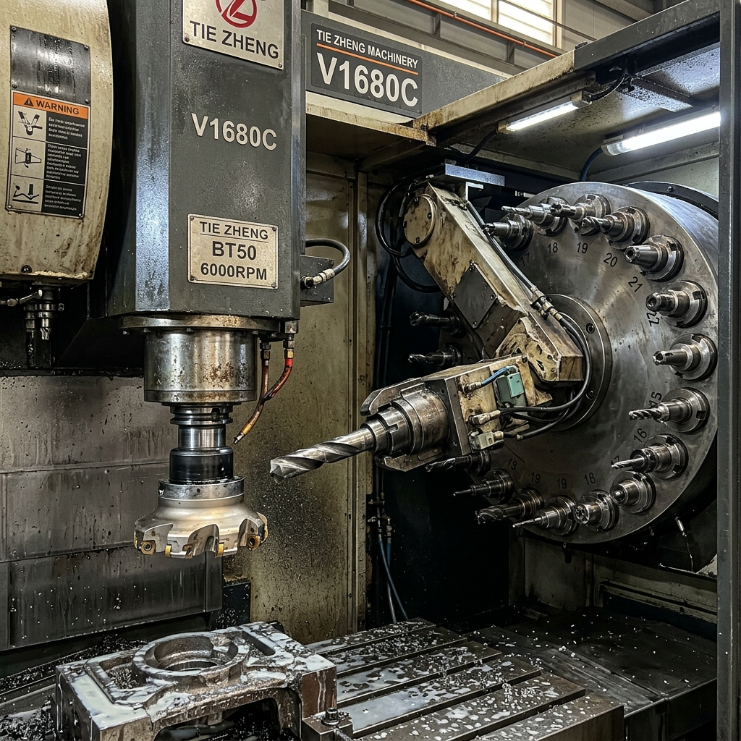

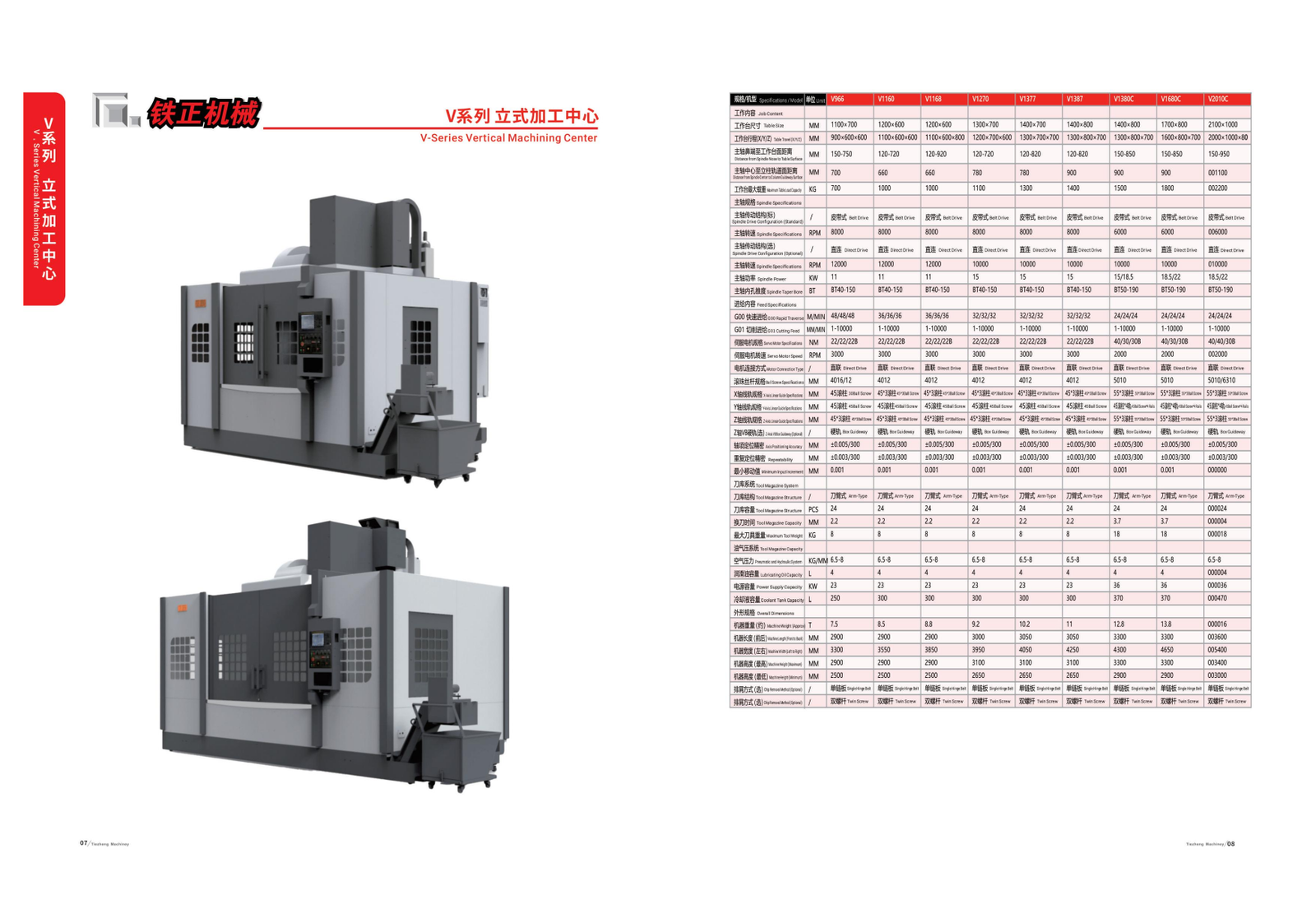

The bound Tiezheng parameter sheet records a 1700 x 800 mm table, 1600 x 800 x 700 mm X/Y/Z travel, 1800 kg maximum table load and an 18.5/22 kW BT50 spindle. A 6,000 rpm belt-drive spindle is standard in the sheet, while a 10,000 rpm direct-drive spindle is listed as an option.
How should buyers use these specifications?
Use the published values for model comparison and RFQ preparation. The final quotation and acceptance record should confirm the selected CNC control, tooling, chip and coolant handling, electrical standard, optional equipment and any drawing-led process changes.
What should be sent for a V1680C RFQ?
Send the part drawing, material, critical tolerances, annual volume, target cycle time, preferred control, automation requirement and destination country.
Is the optional spindle included by default?
No. The 10,000 rpm direct-drive spindle is identified as an optional configuration in the source parameter sheet and must be confirmed in the quotation.
