What is this machine used for?
What is the Tiezheng VS650?

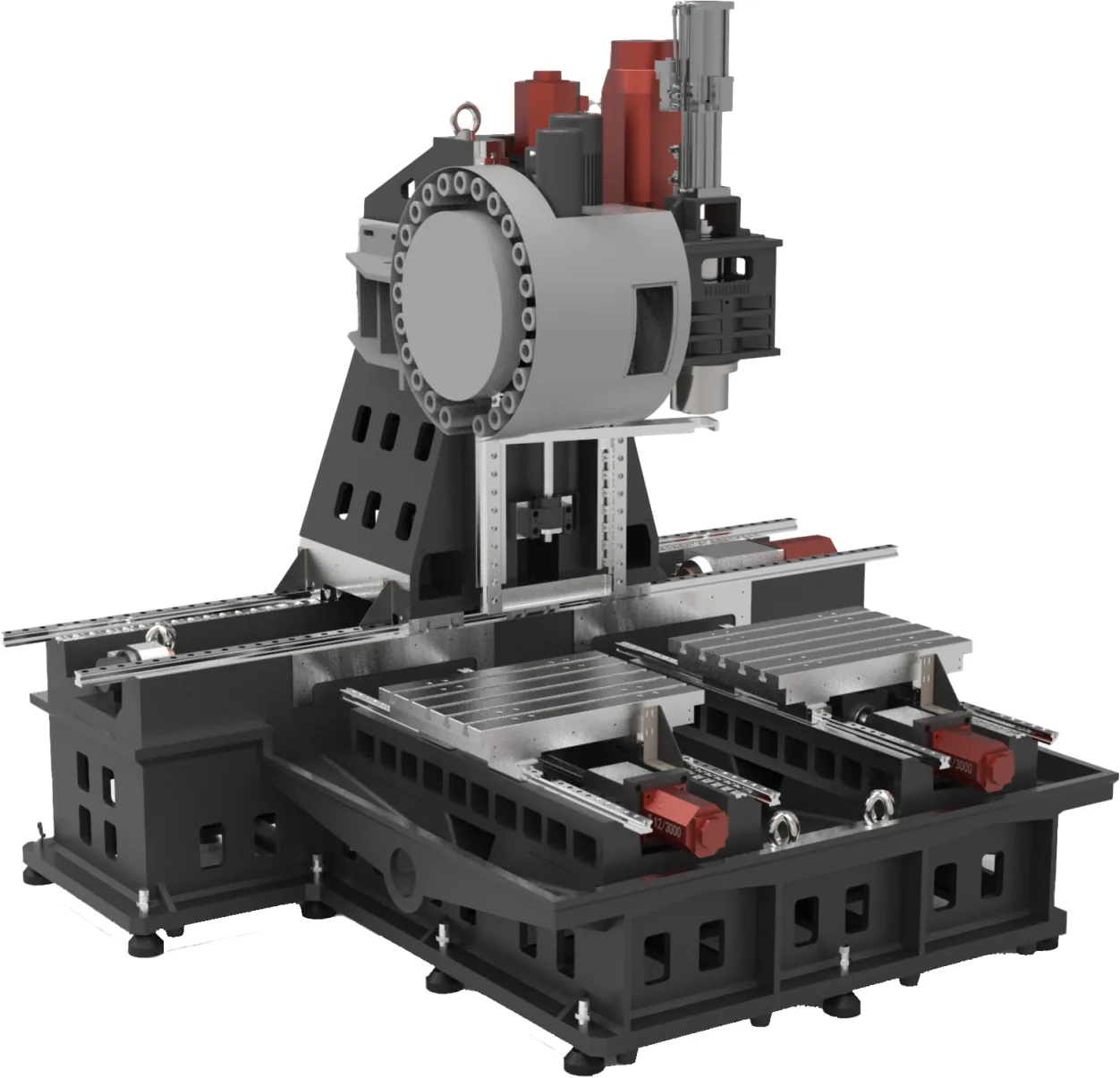

The VS650 is a vertical dual-pallet linear-guide machining center designed to let operators prepare one worktable while the other table is in the machining position. The reviewed source documents two tables and a BT40 spindle. Final process suitability depends on the part, fixture and required production plan.
What VS650 work envelope is documented?

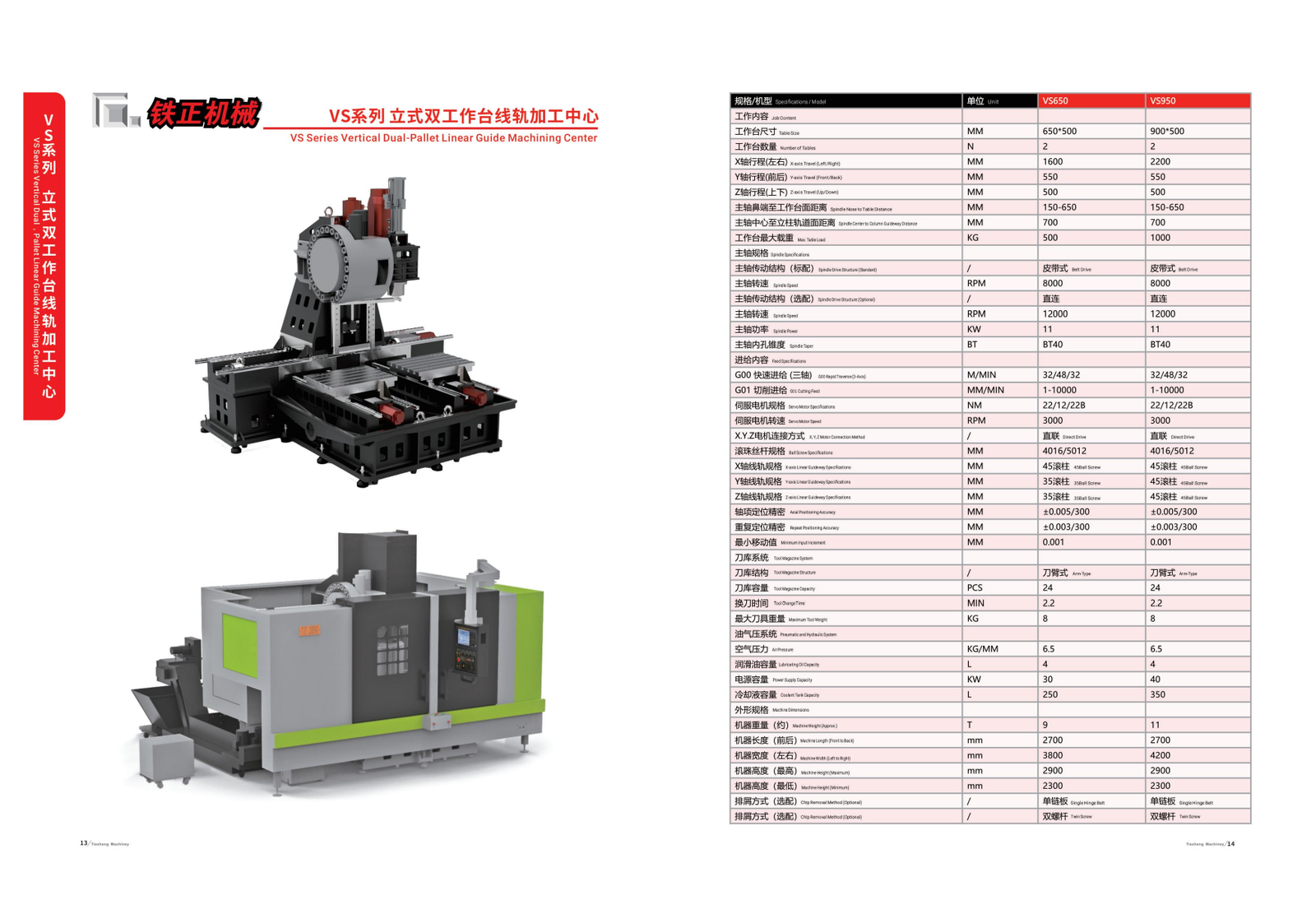

The reviewed matrix records two 650 x 500 mm tables, 1600 x 550 x 500 mm X/Y/Z travel, a 150-650 mm spindle-nose-to-table range and 500 kg maximum table load. Confirm fixture height, cutter access and transfer clearance against the part drawing.
Which spindle configurations are listed?
The source lists an 8000 rpm belt-drive spindle as standard and a 12000 rpm direct-drive configuration as optional. Both are documented with BT40 taper and 11 kW spindle power. The signed quotation and technical agreement control the supplied configuration.
How should buyers evaluate the dual-pallet layout?
Review part loading, fixture repeatability, operator access, chip evacuation, pallet-change sequence and required automation interfaces. The production video provides visible operating context but does not replace a cycle-time study or acceptance plan.
How should the VS650 be compared with another machining center?
Compare table count and size, axis travel, load, spindle configuration, tool capacity, utilities, machine dimensions and chip handling. Use source-listed specifications for screening, then validate the final selection against drawings and production targets.
What should be sent for a VS650 RFQ?
Send the part drawing, material, critical tolerances, workholding concept, annual volume, target cycle time, preferred control, spindle requirement, automation scope and destination country.
Does this page define the final supplied machine?
No. This page supports model screening with reviewed source evidence. The signed quotation, technical agreement and acceptance record define the final supplied configuration.
Which Tiezheng VS650 specifications should buyers check?
The published Tiezheng VS650 specifications include Table size: 650 x 500 mm; X-axis travel: 1600 mm; Y-axis travel: 550 mm. Treat travel, cutting capacity, workholding clearance and load as separate limits. Use the full specification table to check the proposed configuration; these values do not by themselves establish material suitability, achievable part tolerance or cycle time.

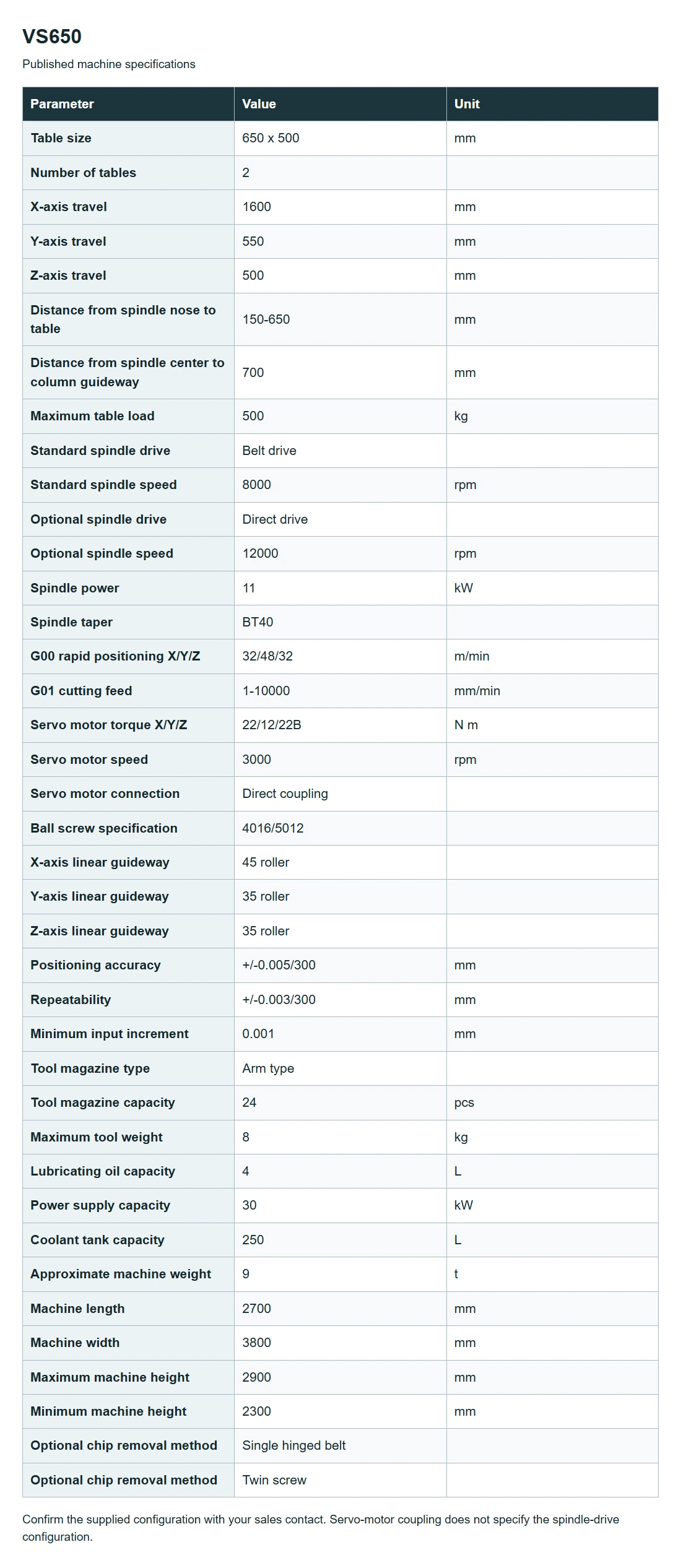

Read the full Tiezheng VS650 specification table.
Does this specification confirm suitability for my industry?
Industry labels alone do not establish a machining process. Start with the dimensions, operations and material information you know; a drawing can follow after the first contact. Confirm material grade and hardness, tolerances, stock condition, production volume and fixture requirements with the contact before agreeing the supplied configuration.
How can I compare this model and request a quotation?
Compare up to three models by the same specification label and unit. An omitted value is not zero, and an optional value is not a standard configuration. Keep the model name with your inquiry so the sales team can review the correct machine.
Confirm the VS650 configuration for your part
Use the published specifications to shortlist this model, then confirm the configuration with the contact listed on this site. Axis travel, workpiece capacity and table load describe different limits; they do not establish finished-part tolerance, material suitability or cycle time. A drawing is optional for the first contact. Machine prices and formal quotations are provided directly by the contact, not by this website.
- Check the published data. Read the available specification labels, units and configuration notes. Ask the contact for missing technical data for this exact model. An omitted value is not zero.
- Confirm the supplied configuration. Ask the contact for configuration-specific technical information. Confirm standard and optional equipment, tooling, workholding and acceptance requirements; do not assume an unlisted feature is included.
- Discuss your requirement. Start with the dimensions and operations you know. Agree a suitable channel for confidential drawings directly with the contact.
Does submitting an inquiry confirm the machine or a quotation?
No. An inquiry starts a discussion. The contact must confirm the proposed configuration and commercial terms with you; submitting a form is not machine acceptance or a formal quotation.
