What is this machine used for?
What is the Tiezheng VF880C-2?

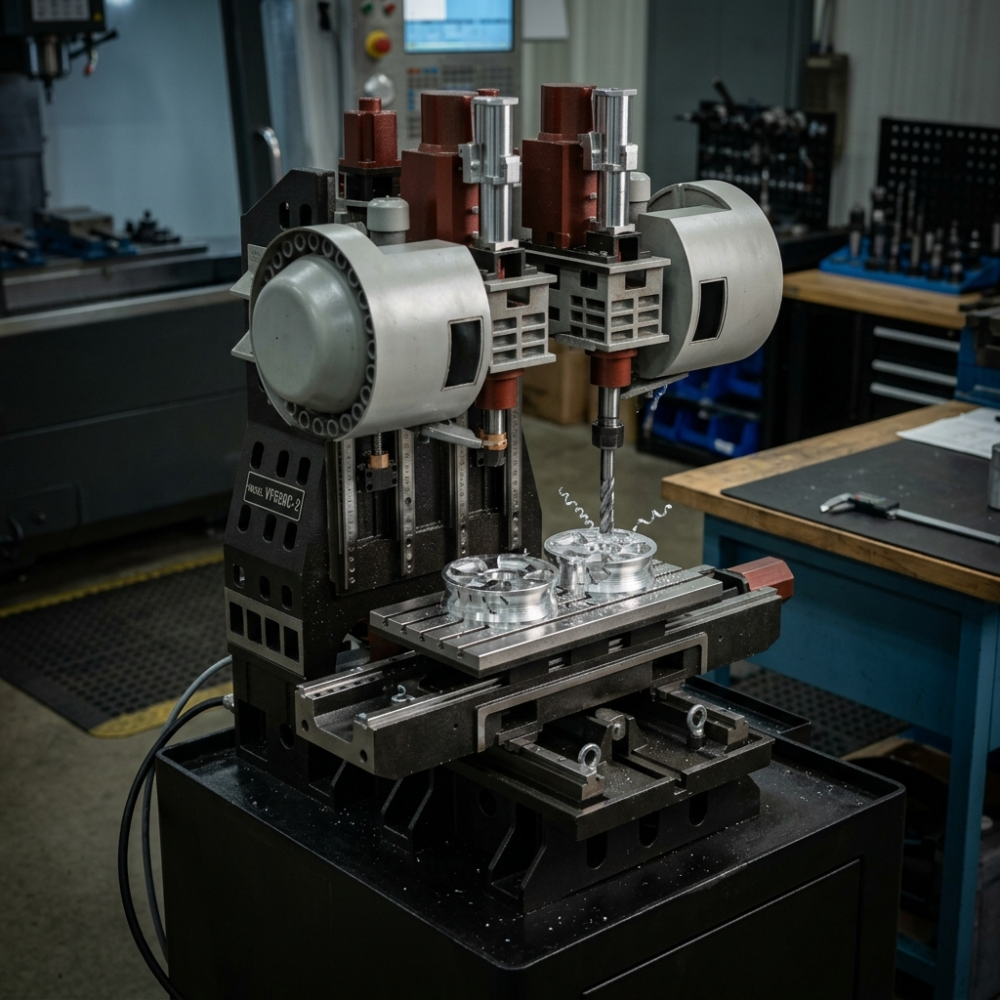

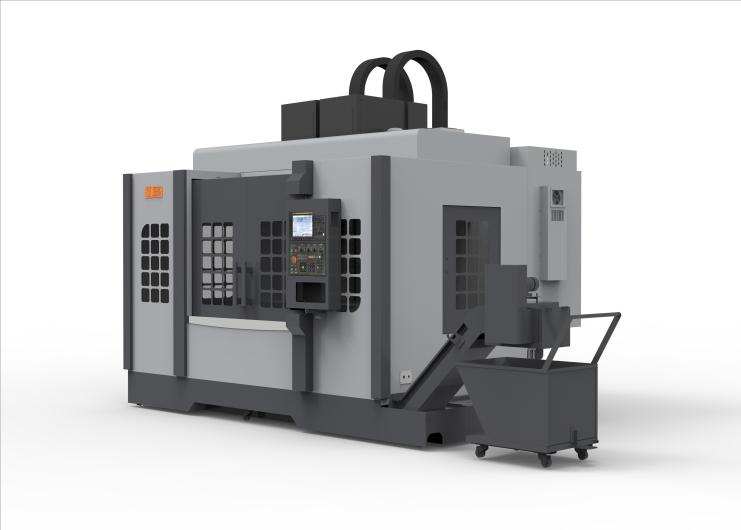

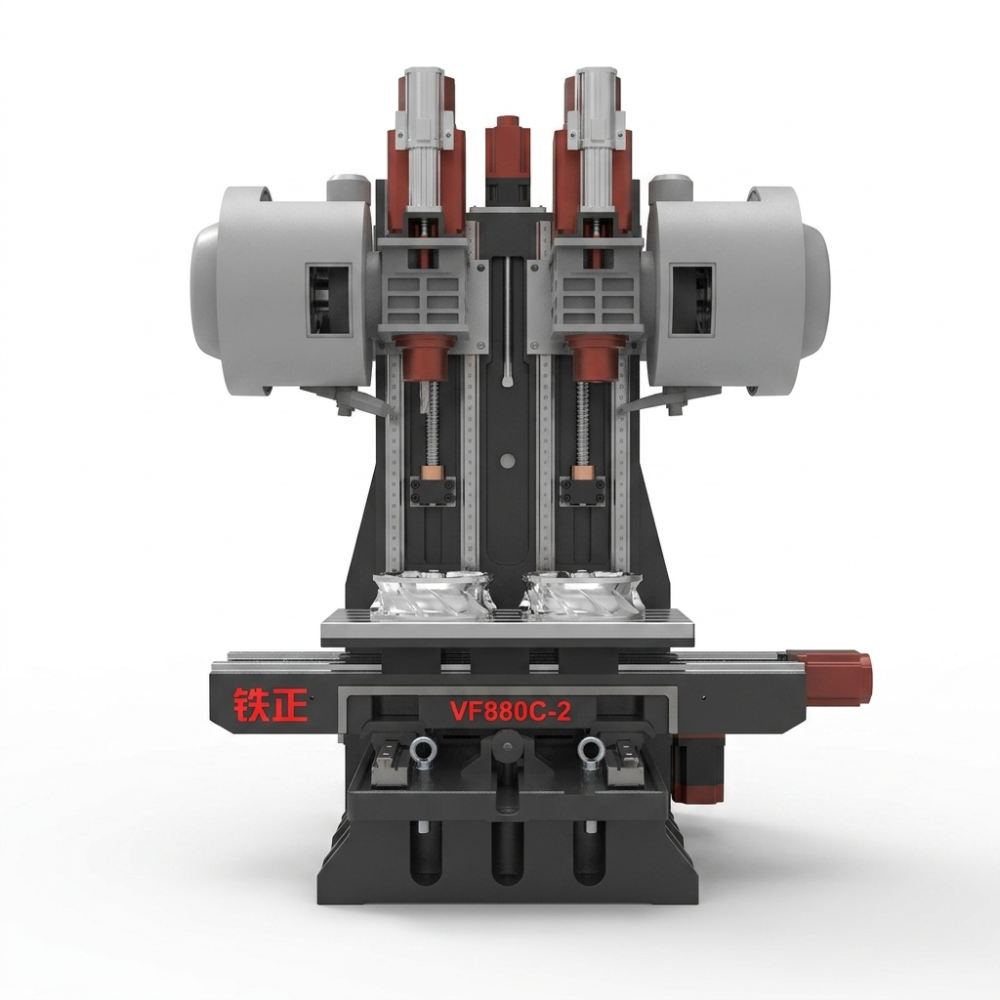

The VF880C-2 is a twin-spindle vertical linear-guide machining center positioned at a BT50 configuration with an 800 x 800 x 700 mm travel envelope. The reviewed source records two spindles and two Z axes; final process suitability still depends on the part drawing, material, fixture, cutter access and required tolerance.
Which VF880C-2 work envelope is documented?

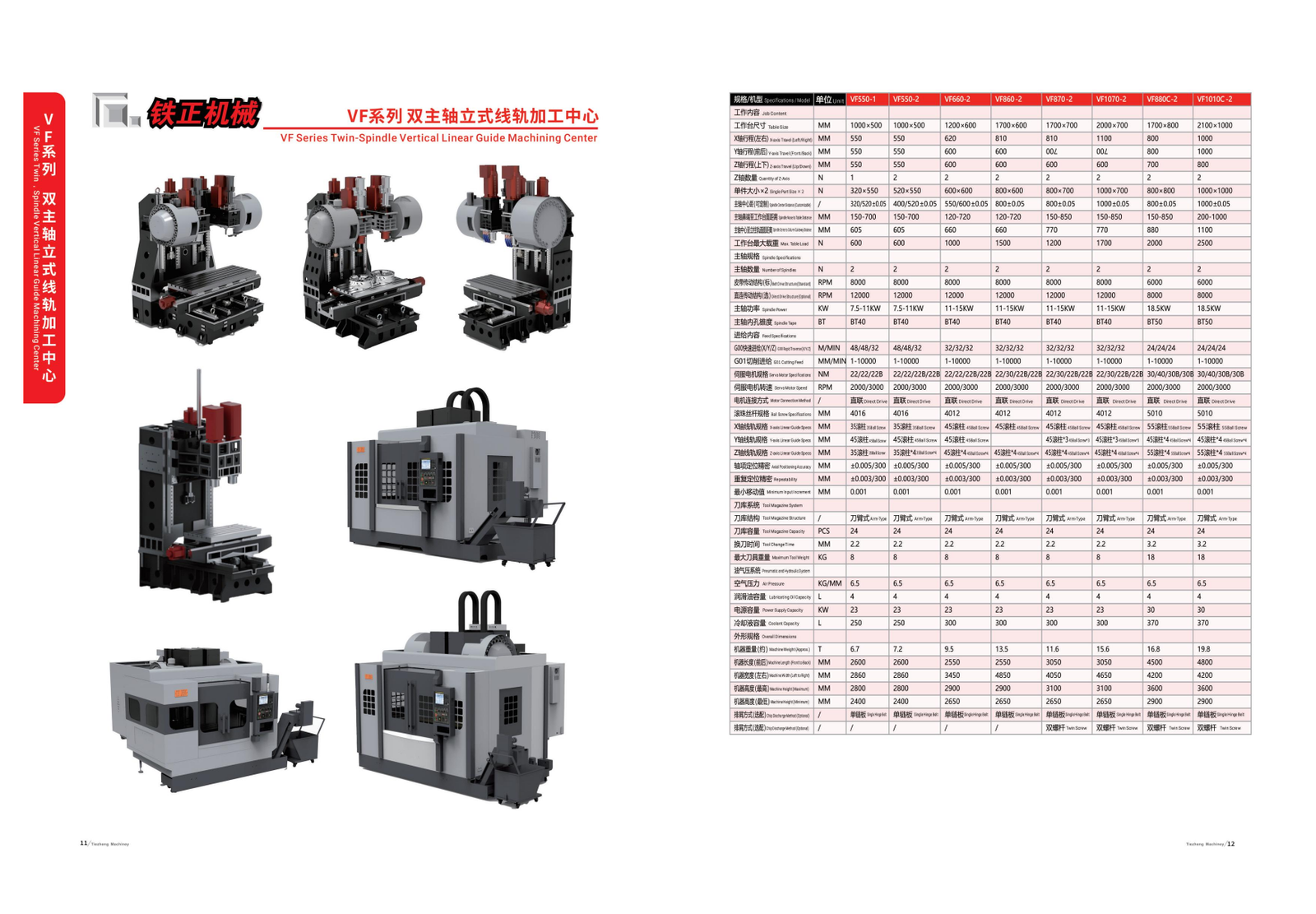

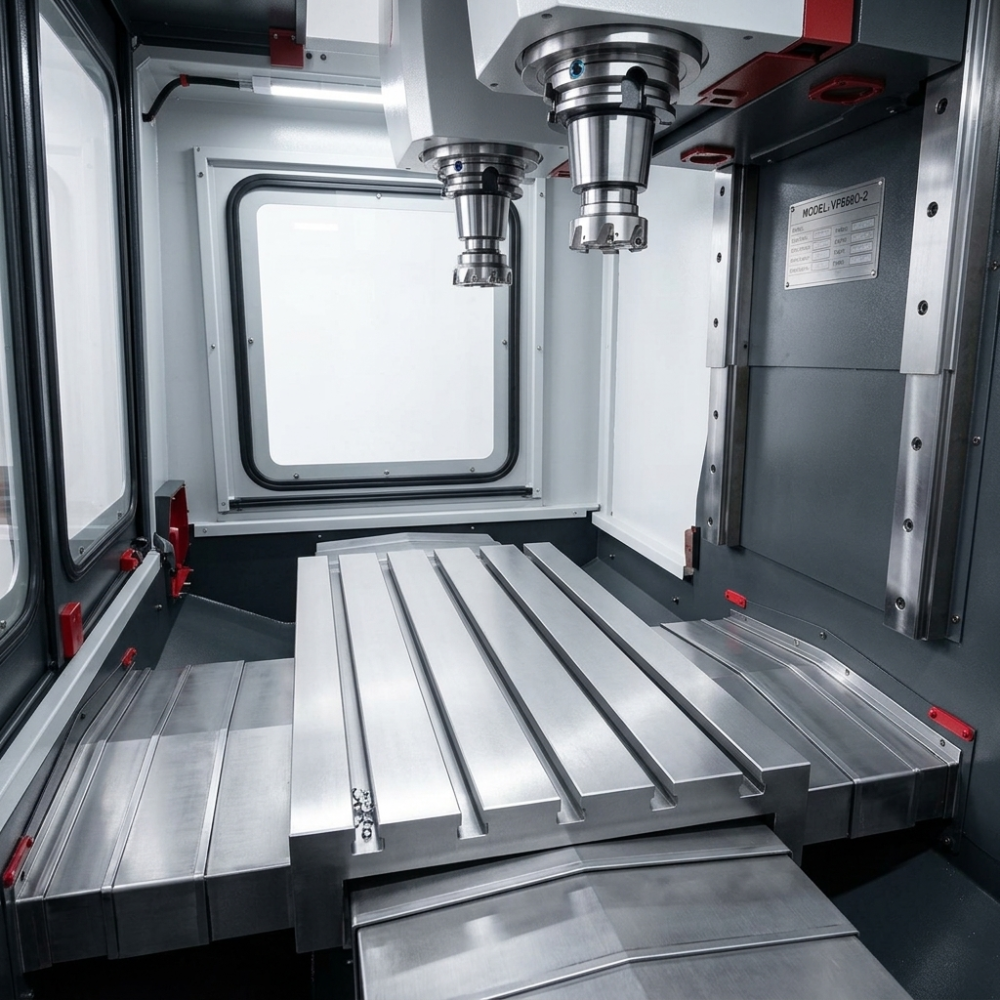

The bound parameter matrix records a 1700 x 800 mm table, 800 x 800 x 700 mm X/Y/Z travel, a 150-850 mm spindle-nose-to-table range and 880 mm from spindle center to the column guideway surface.
Which spindle and tooling configuration is shown?

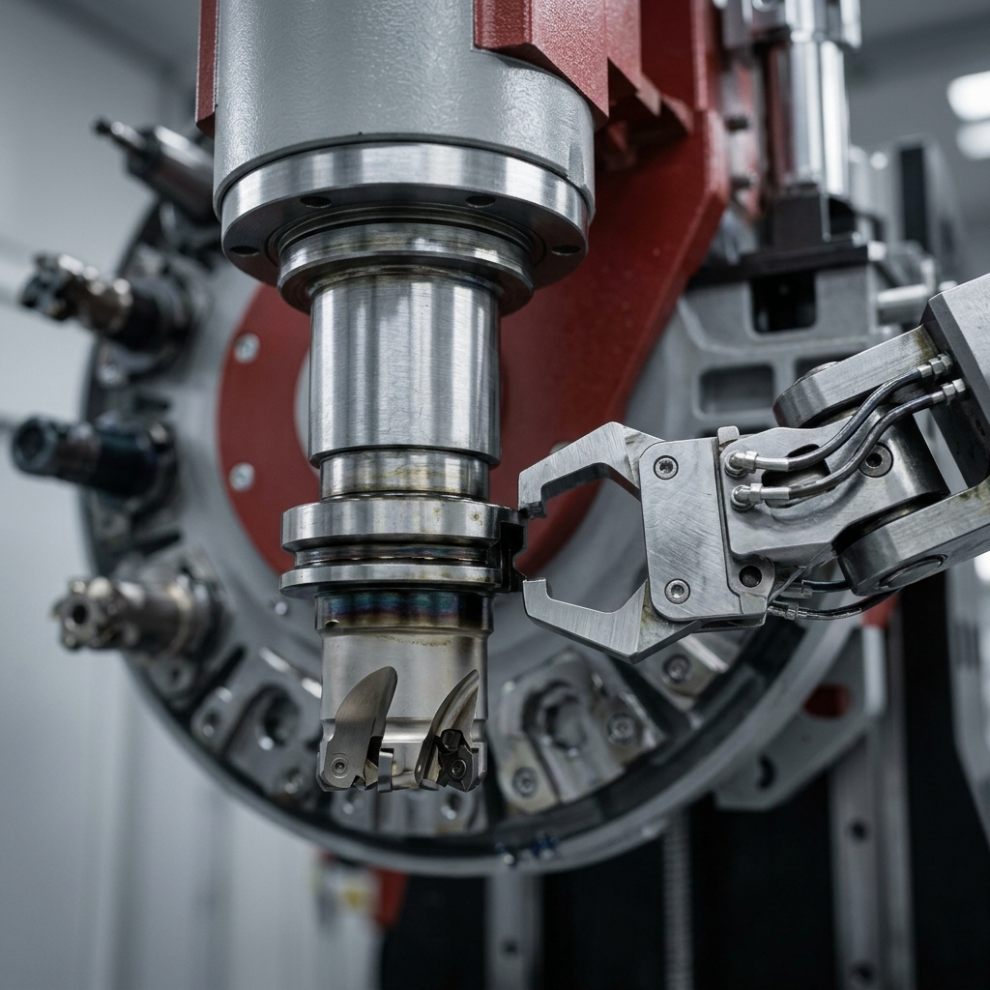

The reviewed matrix lists two BT50 spindles, 18.5 kW spindle power, a 6,000 rpm belt-drive standard configuration and a 8,000 rpm direct-drive option. The tool magazine is arm type with 24 positions. The matrix also lists twin-screw chip removal as an option for VF880C-2.
How should buyers compare the VF880C-2?
Use the published rows for model comparison and RFQ preparation, not as a final acceptance record. The quotation should confirm the selected CNC control, electrical standard, tooling, chip and coolant handling, automation interfaces and any drawing-led process changes.
What should be sent for a VF880C-2 RFQ?
Send the part drawing, material, critical tolerances, annual volume, target cycle time, preferred control, workholding or automation requirement and destination country.
Are the optional items included by default?
No. Any item identified as optional in the source matrix must be confirmed in the final quotation and configuration record.

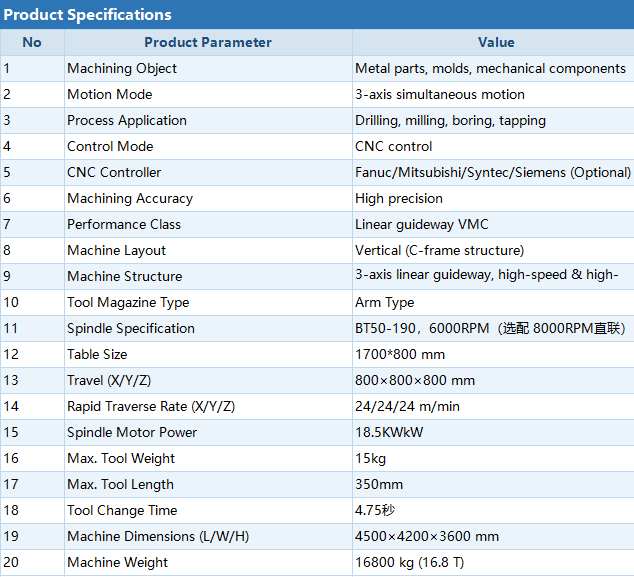

Which Tiezheng VF880C-2 specifications should buyers check?
The published Tiezheng VF880C-2 specifications include Table size: 1700 x 800 mm; X/Y/Z-axis travel: 800 x 800 x 700 mm; Standard spindle speed: 6000 rpm. Treat travel, cutting capacity, workholding clearance and load as separate limits. Use the full specification table to check the proposed configuration; these values do not by themselves establish material suitability, achievable part tolerance or cycle time.

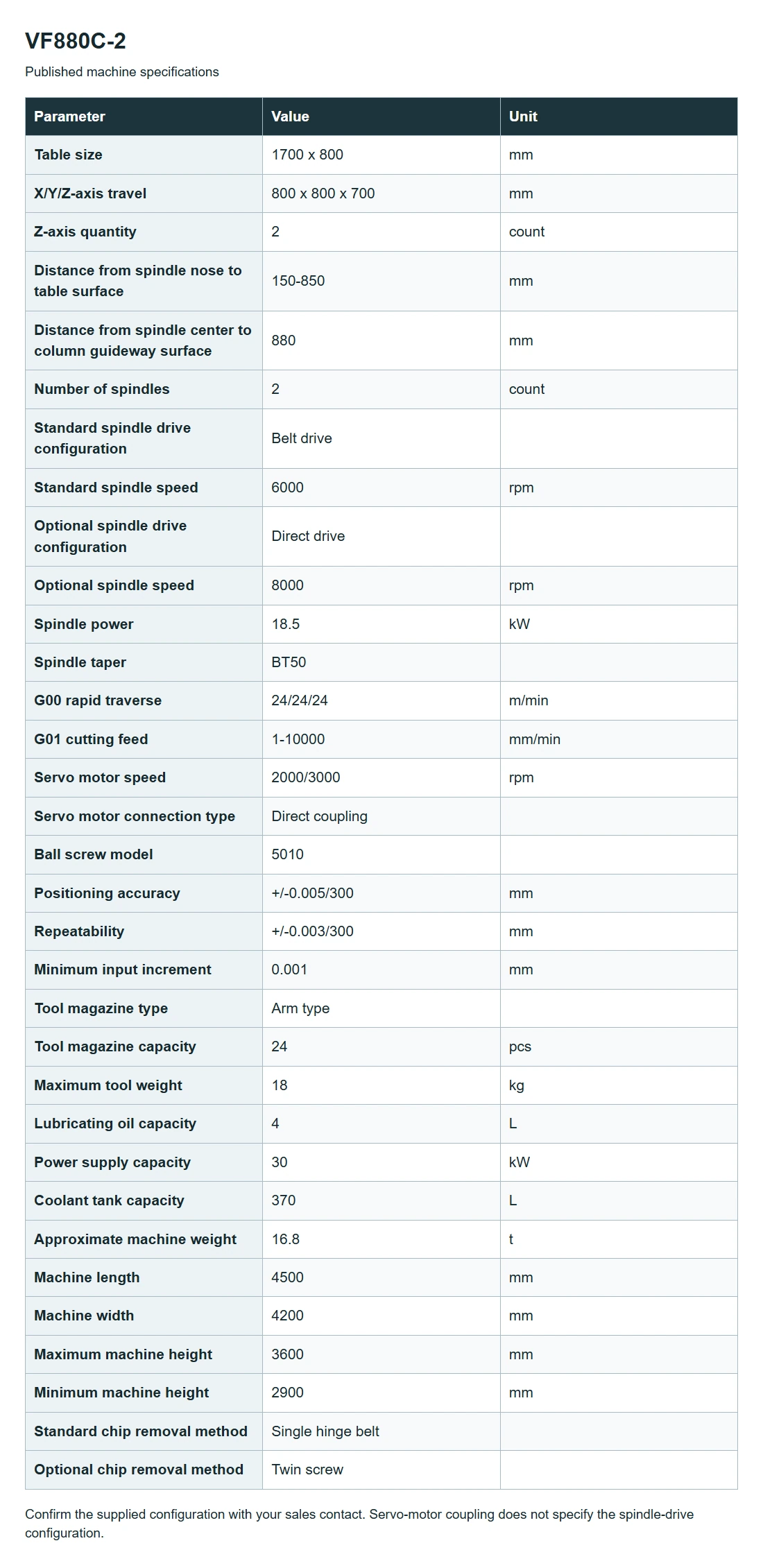

Read the full Tiezheng VF880C-2 specification table.
Does this specification confirm suitability for my industry?
Industry labels alone do not establish a machining process. Start with the dimensions, operations and material information you know; a drawing can follow after the first contact. Confirm material grade and hardness, tolerances, stock condition, production volume and fixture requirements with the contact before agreeing the supplied configuration.
How can I compare this model and request a quotation?
Compare up to three models by the same specification label and unit. An omitted value is not zero, and an optional value is not a standard configuration. Keep the model name with your inquiry so the sales team can review the correct machine.
Confirm the VF880C-2 configuration for your part
Use the published specifications to shortlist this model, then confirm the configuration with the contact listed on this site. Axis travel, workpiece capacity and table load describe different limits; they do not establish finished-part tolerance, material suitability or cycle time. A drawing is optional for the first contact. Machine prices and formal quotations are provided directly by the contact, not by this website.
- Check the published data. Read the available specification labels, units and configuration notes. Ask the contact for missing technical data for this exact model. An omitted value is not zero.
- Confirm the supplied configuration. Ask the contact for configuration-specific technical information. Confirm standard and optional equipment, tooling, workholding and acceptance requirements; do not assume an unlisted feature is included.
- Discuss your requirement. Start with the dimensions and operations you know. Agree a suitable channel for confidential drawings directly with the contact.
Does submitting an inquiry confirm the machine or a quotation?
No. An inquiry starts a discussion. The contact must confirm the proposed configuration and commercial terms with you; submitting a form is not machine acceptance or a formal quotation.
Discuss VF880C-2 with the contact
