What is this machine used for?

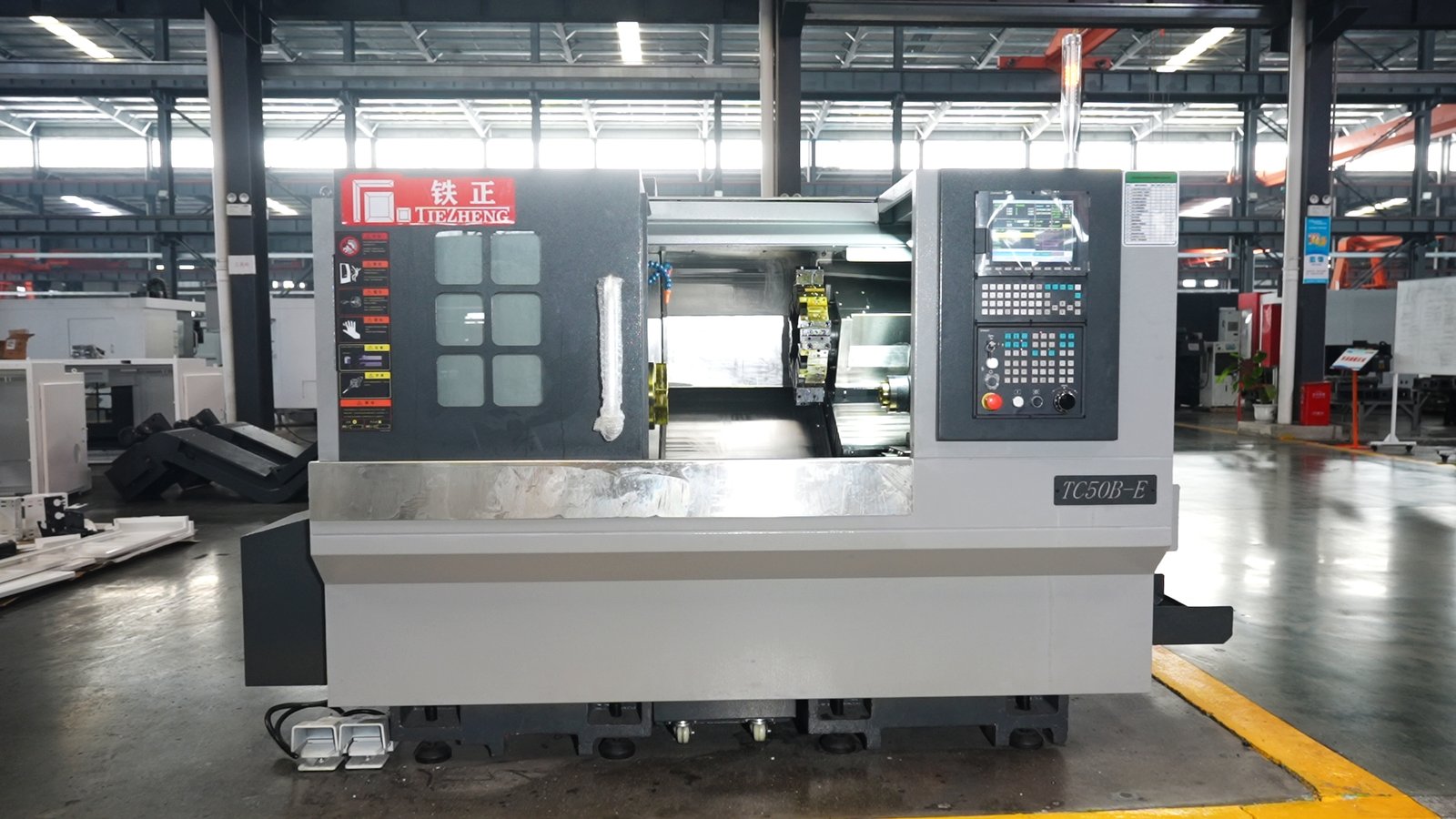

What is the Tiezheng TC50B500L?
What workpiece sizes can the TC50B500L handle?
The machine has a Ø500 mm maximum swing over the bed, a Ø380 mm maximum disc-type cutting diameter, a Ø51 mm maximum bar diameter and a 500 mm maximum workpiece length with the chuck.
Which spindle and chuck specifications are available?
The spindle uses an A2-6 standard nose, a 1:20 spindle-bore taper and a Ø66 mm spindle bore. Maximum spindle speed is 4200 rpm, and the standard hydraulic hollow power chuck is 8 inches.
How are chips removed from the TC50B500L?
Manual chip removal is standard. An automatic scraper-chain conveyor is optional. Chip discharge can be arranged to the right or rear according to the supplied configuration.
How should buyers prepare a TC50B500L RFQ?
Send the workpiece drawing, material, stock form, critical dimensions and tolerances, required operations, annual volume, target cycle time, workholding requirements, electrical standard and destination country. The supplied tailstock, chip-removal arrangement and other configuration-dependent items are confirmed during engineering review.
What is the TC50B500L bed inclination?
The bed inclination is 45 degrees.
What are the TC50B500L X- and Z-axis travels?
X-axis travel is 220 mm and Z-axis travel is 550 mm.
What is the TC50B500L spindle-bore taper?
The spindle-bore taper is 1:20.
What chuck is standard on the TC50B500L?
The standard chuck is an 8-inch hydraulic hollow power chuck.
Which tailstock saddle types are listed?
The specification lists hydraulic and servo tailstock saddle configurations. The supplied arrangement is confirmed during the RFQ.
Which Tiezheng TC50B500L specifications should buyers check?
The published Tiezheng TC50B500L specifications include Maximum cutting diameter: Ø380 mm; X-axis travel: 220 mm; Z-axis travel: 550 mm. Treat travel, cutting capacity, workholding clearance and load as separate limits. Use the full specification table to check the proposed configuration; these values do not by themselves establish material suitability, achievable part tolerance or cycle time.
Read the full Tiezheng TC50B500L specification table.
Does this specification confirm suitability for my industry?
Industry labels alone do not establish a machining process. Start with the dimensions, operations and material information you know; a drawing can follow after the first contact. Confirm material grade and hardness, tolerances, stock condition, production volume and fixture requirements with the contact before agreeing the supplied configuration.
How can I compare this model and request a quotation?
Compare up to three models by the same specification label and unit. An omitted value is not zero, and an optional value is not a standard configuration. Keep the model name with your inquiry so the sales team can review the correct machine.
Confirm the TC50B500L configuration for your part
Use the published specifications to shortlist this model, then confirm the configuration with the contact listed on this site. Axis travel, workpiece capacity and table load describe different limits; they do not establish finished-part tolerance, material suitability or cycle time. A drawing is optional for the first contact. Machine prices and formal quotations are provided directly by the contact, not by this website.
- Check the published data. Read the available specification labels, units and configuration notes. Ask the contact for missing technical data for this exact model. An omitted value is not zero.
- Confirm the supplied configuration. Ask the contact for configuration-specific technical information. Confirm standard and optional equipment, tooling, workholding and acceptance requirements; do not assume an unlisted feature is included.
- Discuss your requirement. Start with the dimensions and operations you know. Agree a suitable channel for confidential drawings directly with the contact.
Does submitting an inquiry confirm the machine or a quotation?
No. An inquiry starts a discussion. The contact must confirm the proposed configuration and commercial terms with you; submitting a form is not machine acceptance or a formal quotation.
