Machine specification

Tiezheng V855 Vertical Machining Center

The Tiezheng V855 is a V-series vertical machining center with a 1000 x 550 mm table, 800 x 550 x 550 mm X/Y/Z travel and a 600 kg table load. The reviewed parameter sheet records an 8,000 rpm belt-drive BT40 spindle and a 12,000 rpm direct-drive option. Buyers should confirm tooling, control, tolerance and production requirements through RFQ.

Request a machine quote Check RFQ inputs

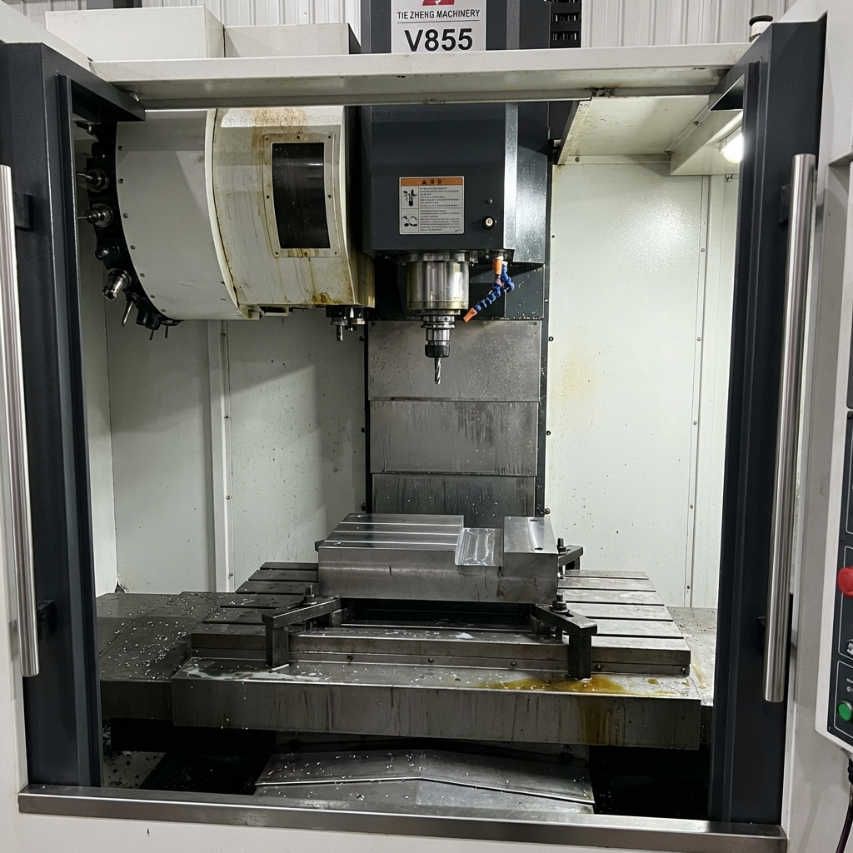

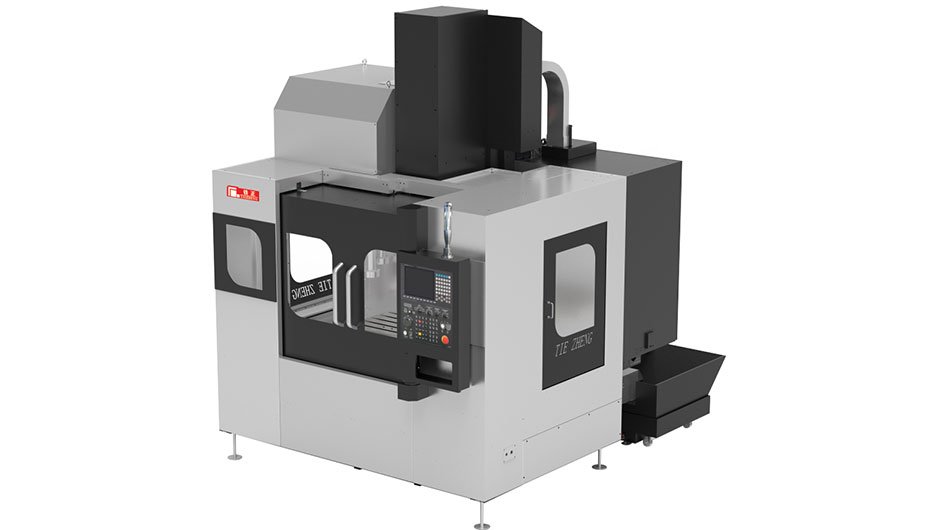

Tiezheng V855 vertical machining center product overview image for CNC machine specification review. — Exact-model media **Product overview image for evaluating V855 layout, guarding, and machine category before RFQ.**

What is this machine used for?

What is the Tiezheng V855 used for?

The V855 is a three-axis vertical machining center for milling, drilling and tapping work that fits its reviewed table and travel envelope. Final process suitability depends on the part drawing, material, workholding, cutter access and tolerance requirements.

Which V855 configuration is documented?

The bound Tiezheng parameter sheet records a 1000 x 550 mm table, 800 x 550 x 550 mm X/Y/Z travel, 600 kg maximum table load and an 11 kW BT40 spindle. An 8,000 rpm belt-drive spindle is standard in the sheet, while a 12,000 rpm direct-drive spindle is listed as an option.

How should buyers use these specifications?

Use the published values for model comparison and RFQ preparation. The final quotation and acceptance record should confirm the selected CNC control, tooling, chip and coolant handling, electrical standard, optional equipment and any drawing-led process changes.

What should be sent for a V855 RFQ?

Send the part drawing, material, critical tolerances, annual volume, target cycle time, preferred control, automation requirement and destination country.

Is the optional spindle included by default?

No. The 12,000 rpm direct-drive spindle is identified as an optional configuration in the source parameter sheet and must be confirmed in the quotation.

Key specifications

Table size	1000 x 550 mm
X/Y/Z-axis travel	800 x 550 x 550 mm
Distance from spindle nose to table surface	150-700 mm
Distance from spindle center to column guideway surface	610 mm
Maximum table load	600 kg
Standard spindle drive configuration	Belt drive
Standard spindle speed	8000 rpm
Optional spindle drive configuration	Direct drive
Optional spindle speed	12000 rpm
Spindle power	11 kW
Spindle taper	BT40-150
G00 rapid traverse	48/48/48 m/min
G01 cutting feed	1-10000 mm/min
Servo motor rated torque	22/22/22B N-m
Servo motor speed	3000 rpm
Servo motor connection type	Direct drive
Ball screw model	4016/12
Positioning accuracy	+/-0.005/300 mm
Repeatability	+/-0.003/300 mm
Minimum input increment	0.001 mm
Tool magazine type	Arm type
Tool magazine capacity	24 pcs
Tool change time	2.2 s
Maximum tool weight	8 kg
Lubricating oil capacity	4 L
Power supply capacity	23 kW
Coolant tank capacity	250 L
Approximate machine weight	5.5 t
Machine length	2600 mm
Machine width	3060 mm
Machine depth	2800 mm
Machine height	2400 mm
Standard chip removal method	Single hinge belt
Optional chip removal method	Twin screw

Model evidence

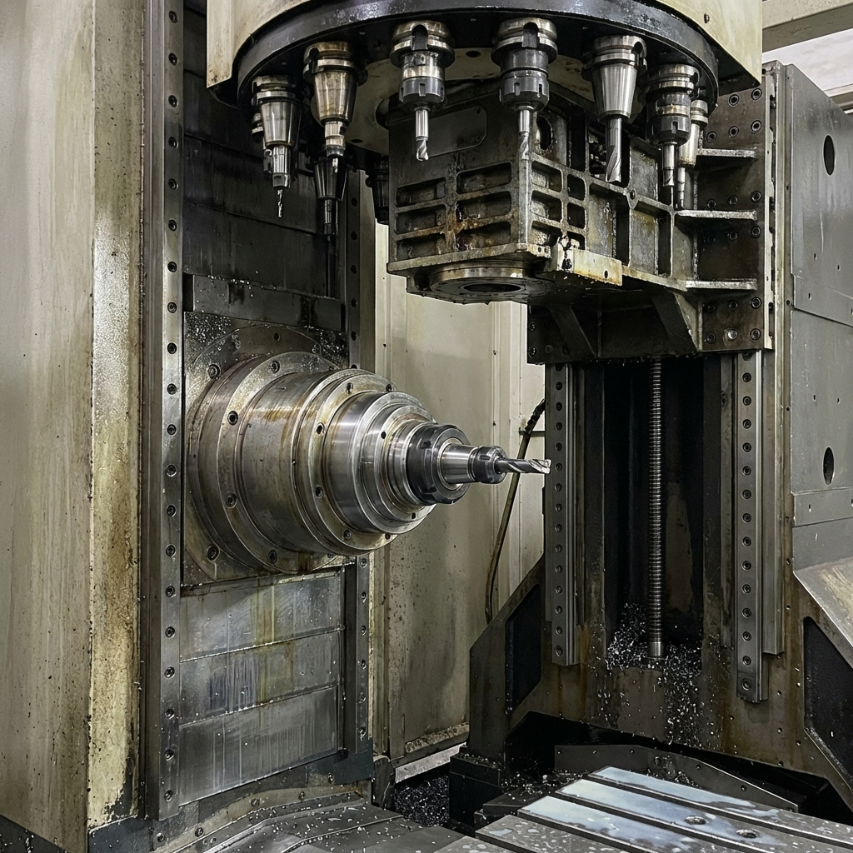

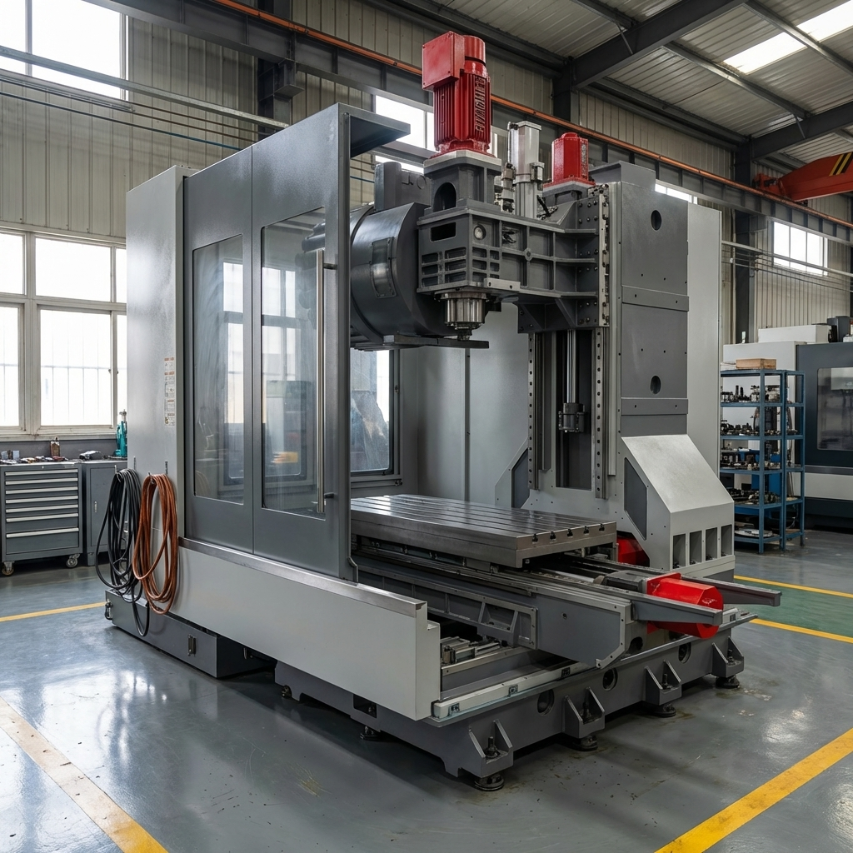

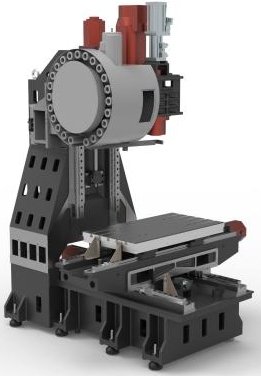

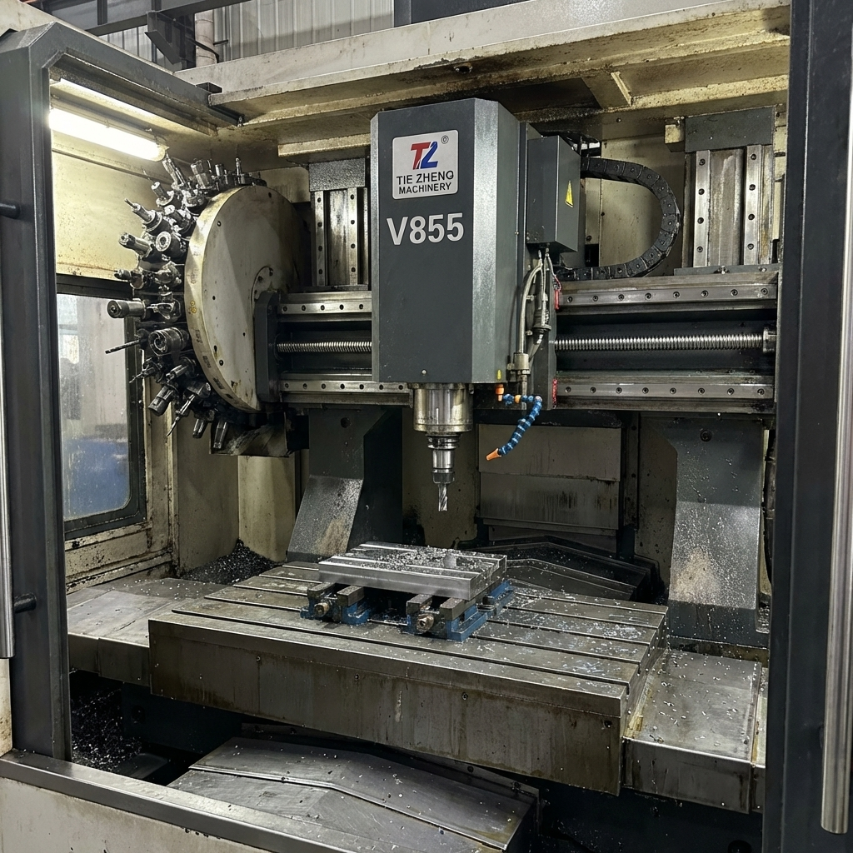

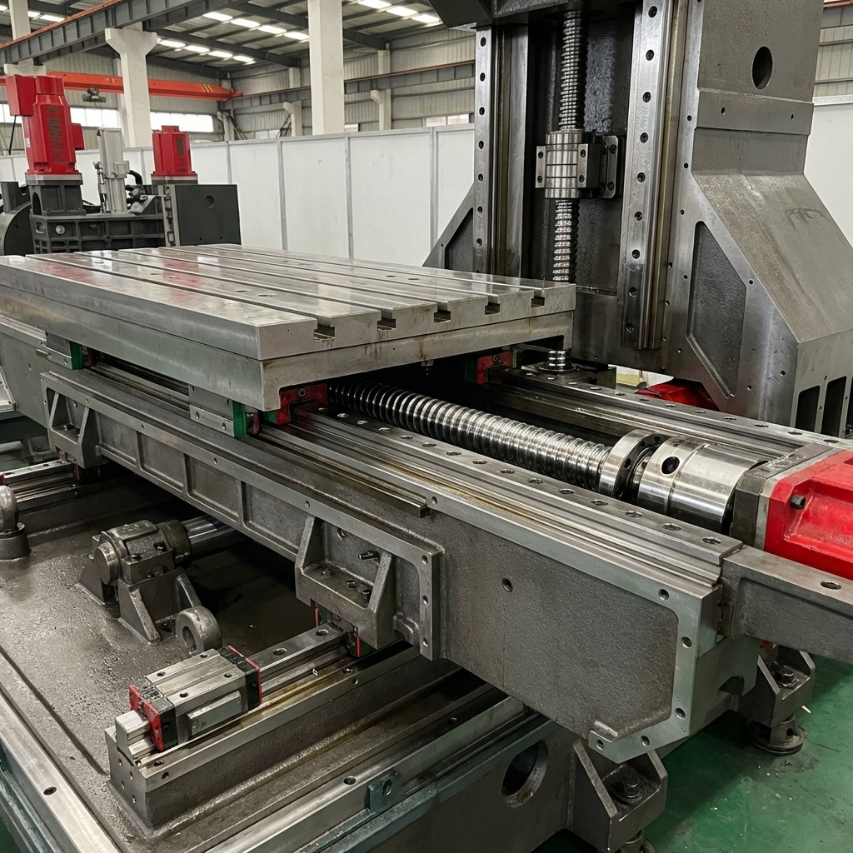

Machine views and production details

Source document

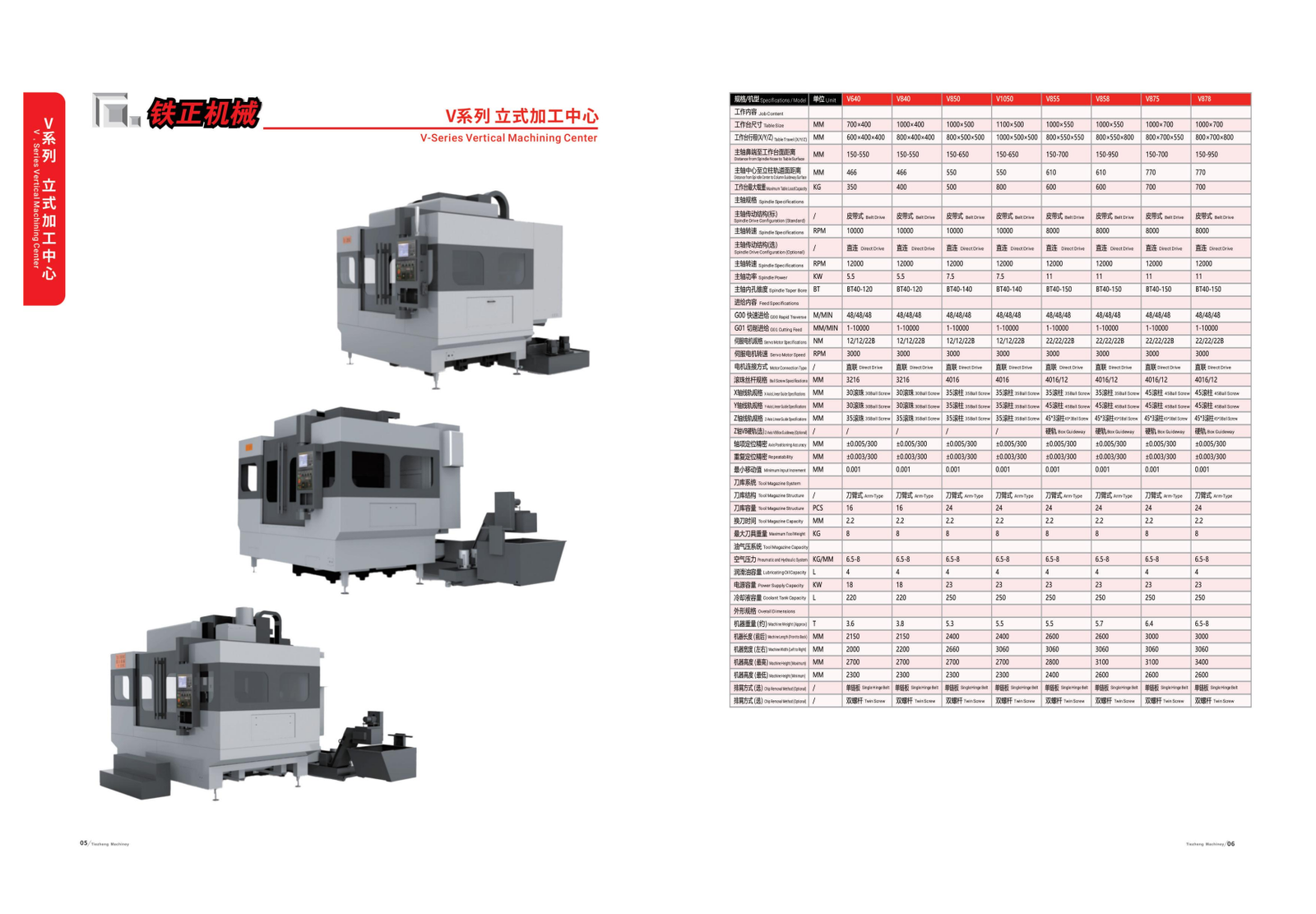

Review the model parameter source

The approved specification rows above provide the searchable comparison layer. Open the original-size source to inspect small labels, diagrams and table context before an RFQ.

Operation footage

V855 Vertical Machining Center Video

This video should be embedded on the V855 product page with a short transcript or summary. It helps buyers understand machine layout, working context, and application suitability before requesting a quotation.
