What is this machine used for?
Which dimensions should I compare for V1176?
The table is 1200 × 700 mm and X/Y/Z-axis travel is 1100 × 700 × 600 mm. These are different dimensions, not a guaranteed workpiece envelope. Allow for fixtures, tool reach, clamping, access and collision clearance.
Which spindle speed is standard and which is optional?
The standard belt-drive spindle is listed at 8000 rpm. Optional direct drive is listed at 10000 rpm. The spindle motor is listed at 15 kW. Confirm the selected drive and equipment in the quotation.
Does the 800 kg table load approve my setup?
No. Review the combined workpiece and fixture load, its placement and machining forces. A published maximum does not establish suitability for a particular workpiece.
Do specifications prove a material or industry application?
No. Published dimensions, travels, spindle data and accuracy entries do not establish material compatibility, finished-part tolerance, surface quality or cycle time. Provide the operations and inspection requirements for review.
What should I send for a V1176 quotation?
Include the drawing revision, material, part dimensions, tolerances, operations, fixture concept, production quantity, tooling, required spindle configuration, installation conditions and destination.
Request a V1176 configuration review. Compare V1176 published specifications or browse vertical machining centers.
Which Tiezheng V1176 specifications should buyers check?

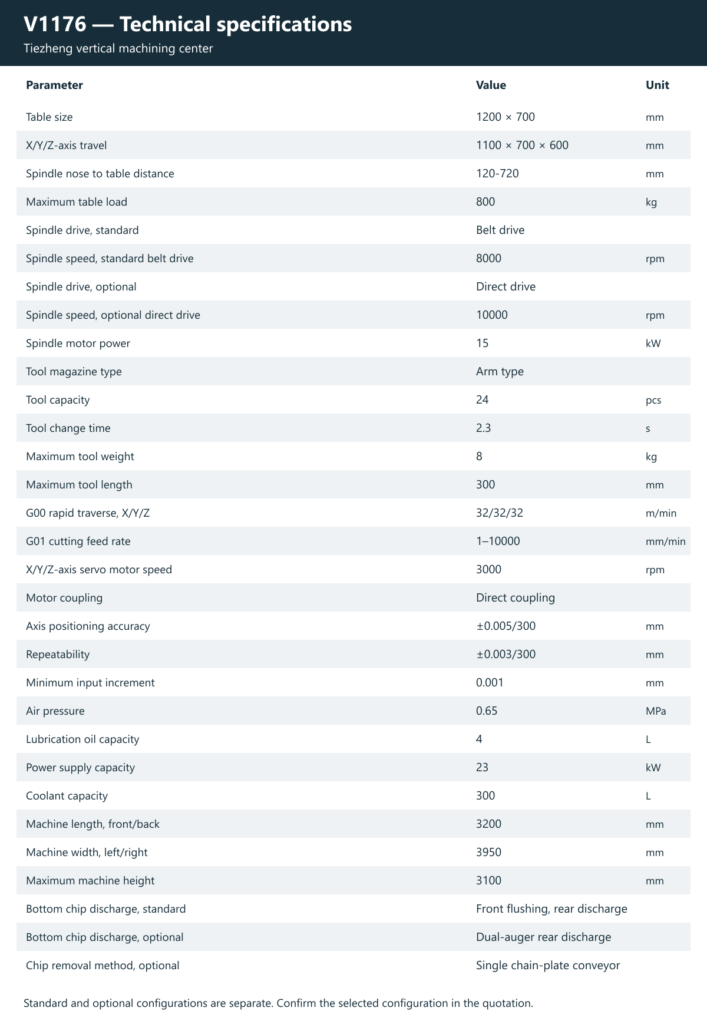

The published Tiezheng V1176 specifications include Table size: 1200 × 700 mm; X/Y/Z-axis travel: 1100 × 700 × 600 mm; Maximum table load: 800 kg. Treat travel, cutting capacity, workholding clearance and load as separate limits. Use the full specification table to check the proposed configuration; these values do not by themselves establish material suitability, achievable part tolerance or cycle time.
Read the full Tiezheng V1176 specification table.
Does this specification confirm suitability for my industry?
Industry labels alone do not establish a machining process. Start with the dimensions, operations and material information you know; a drawing can follow after the first contact. Confirm material grade and hardness, tolerances, stock condition, production volume and fixture requirements with the contact before agreeing the supplied configuration.
How can I compare this model and request a quotation?
Compare up to three models by the same specification label and unit. An omitted value is not zero, and an optional value is not a standard configuration. Keep the model name with your inquiry so the sales team can review the correct machine.
Confirm the V1176 configuration for your part
Use the published specifications to shortlist this model, then confirm the configuration with the contact listed on this site. Axis travel, workpiece capacity and table load describe different limits; they do not establish finished-part tolerance, material suitability or cycle time. A drawing is optional for the first contact. Machine prices and formal quotations are provided directly by the contact, not by this website.
- Check the published data. Read the available specification labels, units and configuration notes. Ask the contact for missing technical data for this exact model. An omitted value is not zero.
- Confirm the supplied configuration. Ask the contact for configuration-specific technical information. Confirm standard and optional equipment, tooling, workholding and acceptance requirements; do not assume an unlisted feature is included.
- Discuss your requirement. Start with the dimensions and operations you know. Agree a suitable channel for confidential drawings directly with the contact.
Does submitting an inquiry confirm the machine or a quotation?
No. An inquiry starts a discussion. The contact must confirm the proposed configuration and commercial terms with you; submitting a form is not machine acceptance or a formal quotation.
Discuss V1176 with the contact
