What is this machine used for?

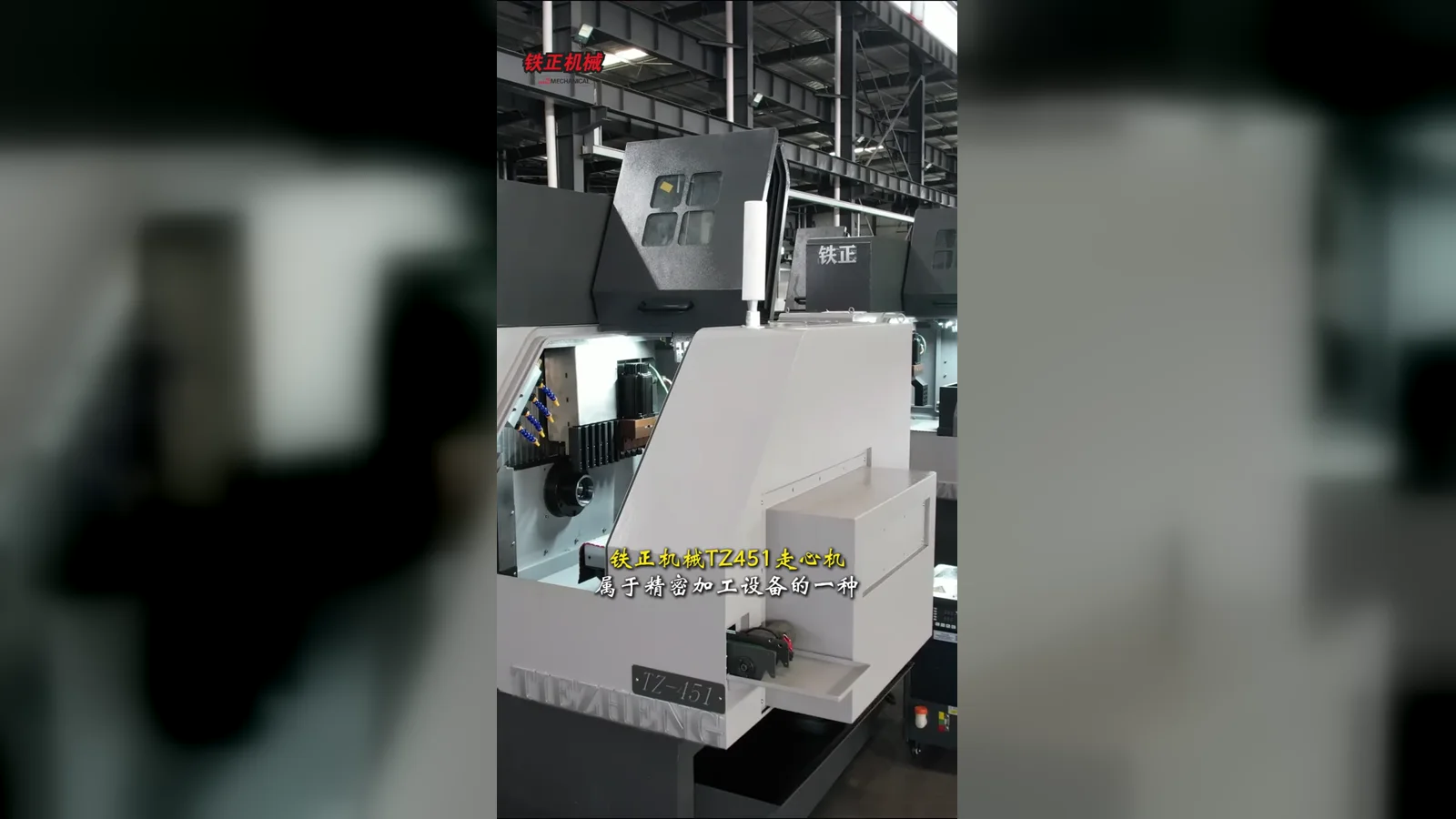

What is the Tiezheng TZ451?
How do guide-bush modes affect TZ451 selection?
Maximum machining diameter is 42 mm without a guide bush and 28 mm with a guide bush. Select the mode with the part geometry, stock preparation, support and machining sequence in mind.
Which spindle and tooling specifications are available?
The table lists main and back spindle speeds, drilling and threading capacities, turning and powered-tool positions, feed-axis designations, rapid traverse, servo motor power and installation dimensions. These details help plan the required turning, milling and drilling sequence.
What controller is listed for the TZ451?
The TZ451 is specified with SYNTEC 220TB control. Confirm the final controller package and required functions in the quotation.
What are the main and back spindle speeds and motor powers?
Maximum main and back spindle speeds are 6000 rpm. Main spindle motor power is 7.5 kW and sub-spindle motor power is 7.5 kW.
Which feed axes are listed?
The feed-axis designations are X1, Y1, Z1, X2, Y2 and Z2. Rapid traverse is 20 m/min on X1 and 22 m/min on Y1, Z1, X2, Y2 and Z2.
What are the TZ451 dimensions and weight?
Machine dimensions are 2700 × 1500 × 1800 mm and machine weight is 4000 kg. Include installation access and auxiliary equipment in the floor-space plan.
How do I request a TZ451 quotation?
Send your part drawing, material, dimensions, critical tolerances, required operations, annual volume and target cycle time. Include workholding or automation needs, electrical standard and destination country. The quotation and technical agreement define the supplied configuration and acceptance requirements.
Which Tiezheng TZ451 specifications should buyers check?
The published Tiezheng TZ451 specifications include Maximum machining diameter: Ø42 without guide bush / Ø28 with guide bush mm; Maximum spindle speed: 6000 r/min; Maximum back-spindle speed: 6000 rpm. Treat travel, cutting capacity, workholding clearance and load as separate limits. Use the full specification table to check the proposed configuration; these values do not by themselves establish material suitability, achievable part tolerance or cycle time.
Read the full Tiezheng TZ451 specification table.
Does this specification confirm suitability for my industry?
Industry labels alone do not establish a machining process. Start with the dimensions, operations and material information you know; a drawing can follow after the first contact. Confirm material grade and hardness, tolerances, stock condition, production volume and fixture requirements with the contact before agreeing the supplied configuration.
How can I compare this model and request a quotation?
Compare up to three models by the same specification label and unit. An omitted value is not zero, and an optional value is not a standard configuration. Keep the model name with your inquiry so the sales team can review the correct machine.
Confirm the TZ451 configuration for your part
Use the published specifications to shortlist this model, then confirm the configuration with the contact listed on this site. Axis travel, workpiece capacity and table load describe different limits; they do not establish finished-part tolerance, material suitability or cycle time. A drawing is optional for the first contact. Machine prices and formal quotations are provided directly by the contact, not by this website.
- Check the published data. Read the available specification labels, units and configuration notes. Ask the contact for missing technical data for this exact model. An omitted value is not zero.
- Confirm the supplied configuration. Ask the contact for configuration-specific technical information. Confirm standard and optional equipment, tooling, workholding and acceptance requirements; do not assume an unlisted feature is included.
- Discuss your requirement. Start with the dimensions and operations you know. Agree a suitable channel for confidential drawings directly with the contact.
Does submitting an inquiry confirm the machine or a quotation?
No. An inquiry starts a discussion. The contact must confirm the proposed configuration and commercial terms with you; submitting a form is not machine acceptance or a formal quotation.
