What is this machine used for?

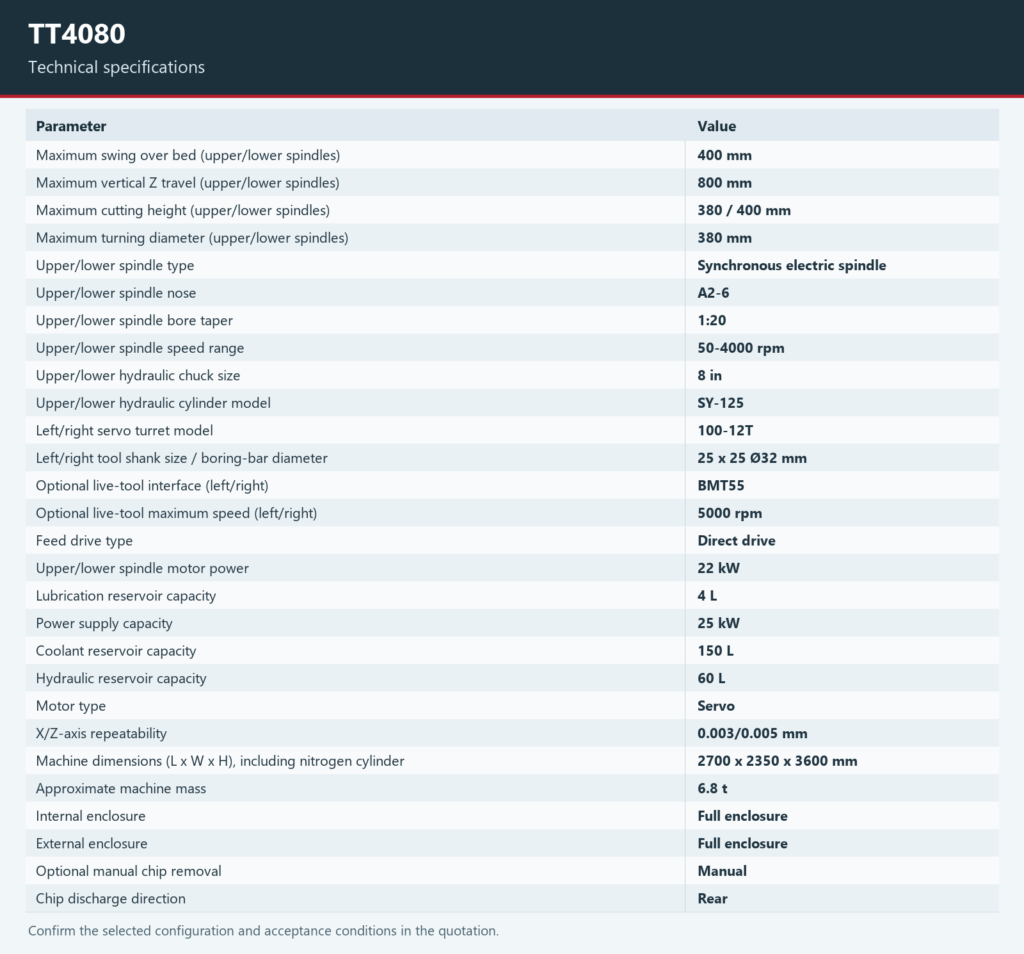

Discuss this configuration View specifications
Check the configuration against your part
Review the upper inverted spindle and lower upright spindle separately, including their different cutting heights. Match each operation to the left/right tool-post arrangement. Milling requires confirmation of the optional live-tool interface and tooling. Review spindle travel and tool-post travel separately before confirming the complete machining sequence. Ask engineering to review the drawing and fixture.
Configuration and acceptance
The listed values describe documented specifications; they do not establish the complete standard supply. Confirm the CNC, tooling, workholding, spindle duty and acceptance conditions in the quotation. Optional items require explicit selection.
Axis travel is not guaranteed workpiece clearance. Machine positioning and repeatability figures do not guarantee finished-part tolerances. Review the drawing, material, fixture and inspection method together.
Before choosing this machine
Which limits should I check for my workpiece?
Review the upper inverted spindle and lower upright spindle separately, including their different cutting heights. Match each operation to the left/right tool-post arrangement. Milling requires confirmation of the optional live-tool interface and tooling. Review spindle travel and tool-post travel separately before confirming the complete machining sequence. Ask engineering to review the drawing and fixture.
Does this page confirm a material or automated loading system?
No material or loading-system compatibility is confirmed here. Tell us the material, part form and loading requirement so the team can review the proposed configuration.
What should I send with an inquiry?
Send the drawing or part dimensions, material and operations required. Add the quantity, critical tolerances and loading preference if known. Use the inquiry link on this page to include the model with your request.
Do the specifications define the complete standard supply?
No. A listed specification does not establish the complete standard supply. Confirm the selected CNC, spindle duty, toolholding, workholding and any optional items in the final quotation.
