What is this machine used for?
Discuss this configuration View specifications
Which parts should be assessed for this machine?
Consider this vertical turn-mill layout for rotational disc, ring or flange components requiring turning and milling operations. This is a starting point for process review, not an approved application. Check the drawing, chuck or fixture, tool access and operation sequence before choosing the machine. A named industry does not establish material compatibility or a completed customer case.
Configuration and acceptance

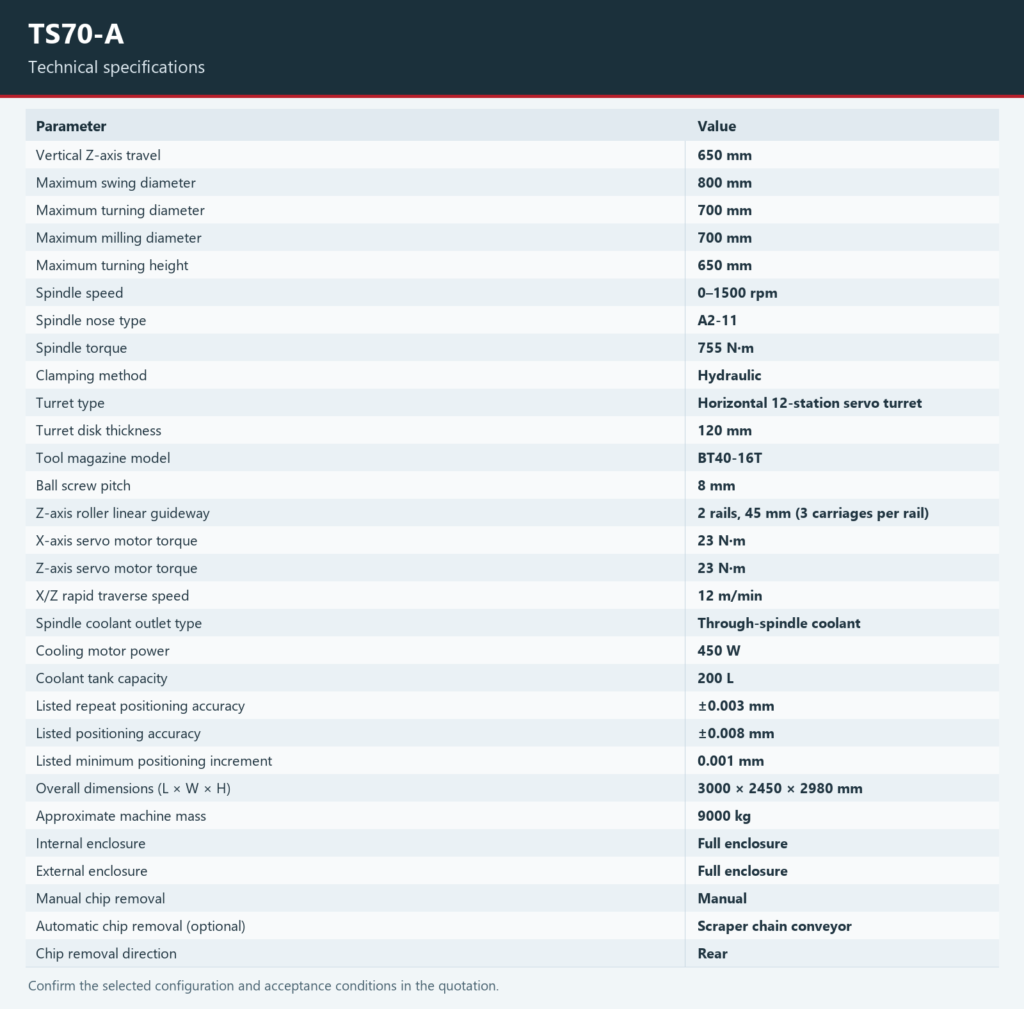

The specification table describes the listed machine data; it is not a complete standard-equipment list. The horizontal 12-station servo turret and BT40-16T magazine designation must be checked against the proposed supply. BT40-16T is retained as a model designation; it does not independently confirm magazine capacity or the complete milling arrangement. Automatic scraper-chain chip removal is optional.
Axis travel and maximum machining dimensions are separate limits, not a guaranteed machining envelope or fixture clearance. Listed positioning and repeat-positioning values do not guarantee finished-part tolerances. Confirm the test standard, measurement length and acceptance method in writing.
Planning the engineering review
Provide the part drawing or dimensions, material and required operations. Add critical tolerances, batch quantity and loading preference if known. Ask the team to confirm the selected configuration, inspection plan and responsibilities for delivery, installation, training and after-sales support before ordering.
Questions before choosing a TS70 configuration
What is the difference between TS70-A and TS70-B?
The technical descriptions identify TS70-A with a single X-axis and TS70-B with double X-axes. The specifications listed on these two pages are otherwise the same. These descriptions do not establish spindle count, control channels, simultaneous-axis operation or a particular axis arrangement. Confirm the configuration drawing before selecting A or B.
Can I use this machine for a 700 mm flange?
The listed maximum turning and milling diameters are 700 mm. That value alone does not approve a 700 mm flange setup: jaw projection, fixture clearance, part height, tool reach, material and required operations still need review. Send the flange drawing for an assessment of the complete setup.
Are material compatibility and automated loading confirmed?
Material compatibility and a loading system are not specified here. Optional automatic chip removal handles chips; it does not establish robotic workpiece loading or an unattended production cell. Include the material and loading requirement in the inquiry for engineering review.
Does the 12-station turret mean all tooling is included?
The listed turret is a horizontal 12-station servo turret. Toolholders, cutting tools, milling interfaces and the final supplied arrangement require written confirmation. The specification does not promise a complete set of tooling.
Does 650 mm Z travel guarantee a 650 mm workpiece?
No. Vertical Z-axis travel and maximum turning height are each listed as 650 mm, but they describe different limits. Available part and fixture clearance, chuck engagement and tool access must be checked for the actual workpiece.
What should I include in a TS70 inquiry?
Start with the part drawing or dimensions, material and turning or milling operations. If available, include critical tolerances, quantity and loading preference. The inquiry link on this page carries the exact TS70 model so the team can review the configuration without asking you to select it again.
