What is this machine used for?

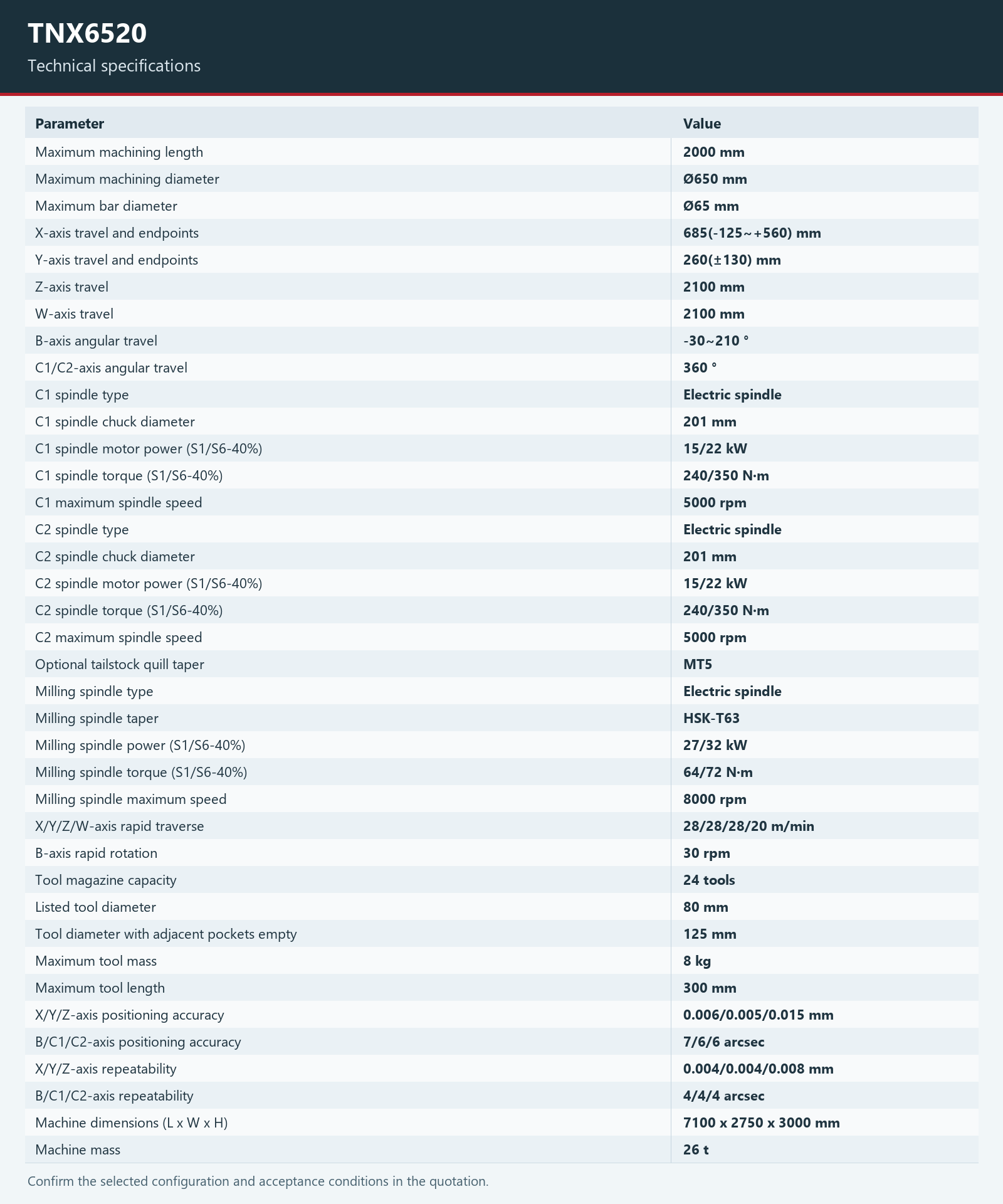

Discuss this configuration View specifications
Check the configuration against your part
Compare C1, C2 and milling-spindle ratings separately and retain their S1/S6-40% duty conditions. Check machining length independently from axis travel and the actual chuck/fixture arrangement. The larger tool diameter requires adjacent magazine pockets to be empty; confirm the tooling layout, available clearances and process sequence with engineering. No simultaneous five-axis operation or automated loading is assumed.
Configuration and acceptance
The listed values describe documented specifications; they do not establish the complete standard supply. Confirm the CNC, tooling, workholding, spindle duty and acceptance conditions in the quotation. Optional items require explicit selection.
Axis travel is not guaranteed workpiece clearance. Machine positioning and repeatability figures do not guarantee finished-part tolerances. Review the drawing, material, fixture and inspection method together.
Before choosing this machine
Which limits should I check for my workpiece?
Compare C1, C2 and milling-spindle ratings separately and retain their S1/S6-40% duty conditions. Check machining length independently from axis travel and the actual chuck/fixture arrangement. The larger tool diameter requires adjacent magazine pockets to be empty; confirm the tooling layout, available clearances and process sequence with engineering. No simultaneous five-axis operation or automated loading is assumed.
Does this page confirm a material or automated loading system?
No material or loading-system compatibility is confirmed here. Tell us the material, part form and loading requirement so the team can review the proposed configuration.
What should I send with an inquiry?
Send the drawing or part dimensions, material and operations required. Add the quantity, critical tolerances and loading preference if known. Use the inquiry link on this page to include the model with your request.
Do the specifications define the complete standard supply?
No. A listed specification does not establish the complete standard supply. Confirm the selected CNC, spindle duty, toolholding, workholding and any optional items in the final quotation.
