What is this machine used for?
What published specifications should I check for TH-42?
Max. Swing Diameter Over Bed: ø420 mm; X-Axis Travel: 350 mm; Z-Axis Travel: 350 mm. Review the complete specification table before comparing models. Parameter names and units must refer to the same measurement.
Do the published dimensional limits approve a workpiece setup?
No. Fixtures, tool reach, clamping, access and collision clearance must be checked separately. Preserve the exact meaning of each listed travel, diameter, table or machining-range parameter; do not substitute one for another.
Does a published maximum establish a machining result?
No. Listed travel, load, spindle and tooling specifications do not establish cycle time, material-removal rate, finished tolerance or surface quality. Submit the operations and inspection requirements for review.
Which equipment is standard and which is optional?
Only entries explicitly marked standard or optional carry that meaning. An unqualified range, listed alternative or blank field does not establish the installed equipment. Confirm the selected configuration in the quotation.
What should I include in a quotation request for TH-42?
Include the drawing revision, material, part dimensions, tolerances, operations, fixture concept, production quantity, tooling, installation requirements and delivery destination. Identify the exact model and any required options.
Request a TH-42 configuration review. Compare published specifications or browse all published machines.
Which Tiezheng TH-42 specifications should buyers check?
The published Tiezheng TH-42 specifications include X-Axis Travel: 350 mm; Z-Axis Travel: 350 mm; Max. Spindle Speed: 5000 rpm. Treat travel, cutting capacity, workholding clearance and load as separate limits. Use the full specification table to check the proposed configuration; these values do not by themselves establish material suitability, achievable part tolerance or cycle time.

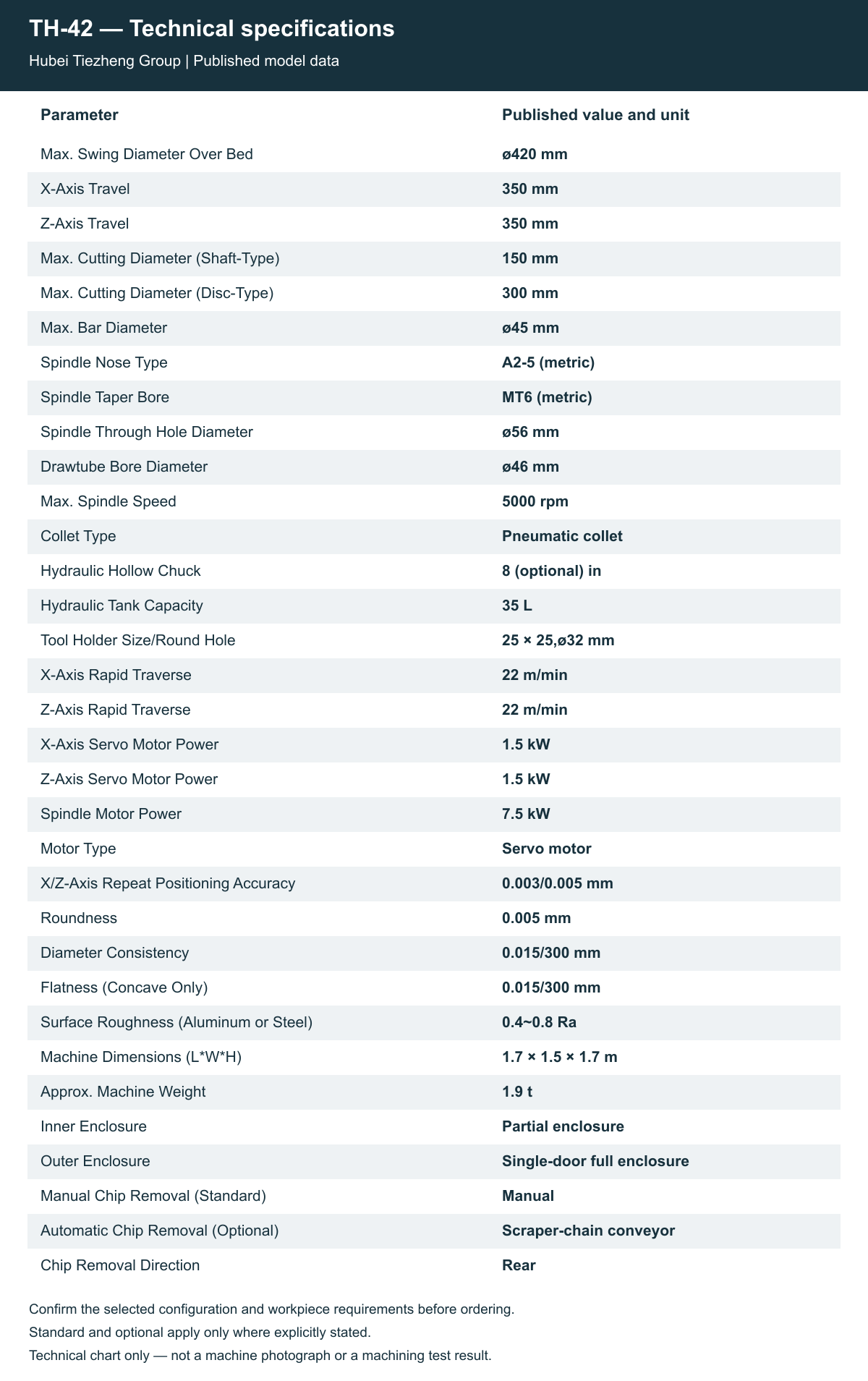

Read the full Tiezheng TH-42 specification table.
Does this specification confirm suitability for my industry?
Industry labels alone do not establish a machining process. Start with the dimensions, operations and material information you know; a drawing can follow after the first contact. Confirm material grade and hardness, tolerances, stock condition, production volume and fixture requirements with the contact before agreeing the supplied configuration.
How can I compare this model and request a quotation?
Compare up to three models by the same specification label and unit. An omitted value is not zero, and an optional value is not a standard configuration. Keep the model name with your inquiry so the sales team can review the correct machine.
Confirm the TH-42 configuration for your part
Use the published specifications to shortlist this model, then confirm the configuration with the contact listed on this site. Axis travel, workpiece capacity and table load describe different limits; they do not establish finished-part tolerance, material suitability or cycle time. A drawing is optional for the first contact. Machine prices and formal quotations are provided directly by the contact, not by this website.
- Check the published data. Read the available specification labels, units and configuration notes. Ask the contact for missing technical data for this exact model. An omitted value is not zero.
- Confirm the supplied configuration. Ask the contact for configuration-specific technical information. Confirm standard and optional equipment, tooling, workholding and acceptance requirements; do not assume an unlisted feature is included.
- Discuss your requirement. Start with the dimensions and operations you know. Agree a suitable channel for confidential drawings directly with the contact.
Does submitting an inquiry confirm the machine or a quotation?
No. An inquiry starts a discussion. The contact must confirm the proposed configuration and commercial terms with you; submitting a form is not machine acceptance or a formal quotation.
Discuss TH-42 with the contact
