What is this machine used for?

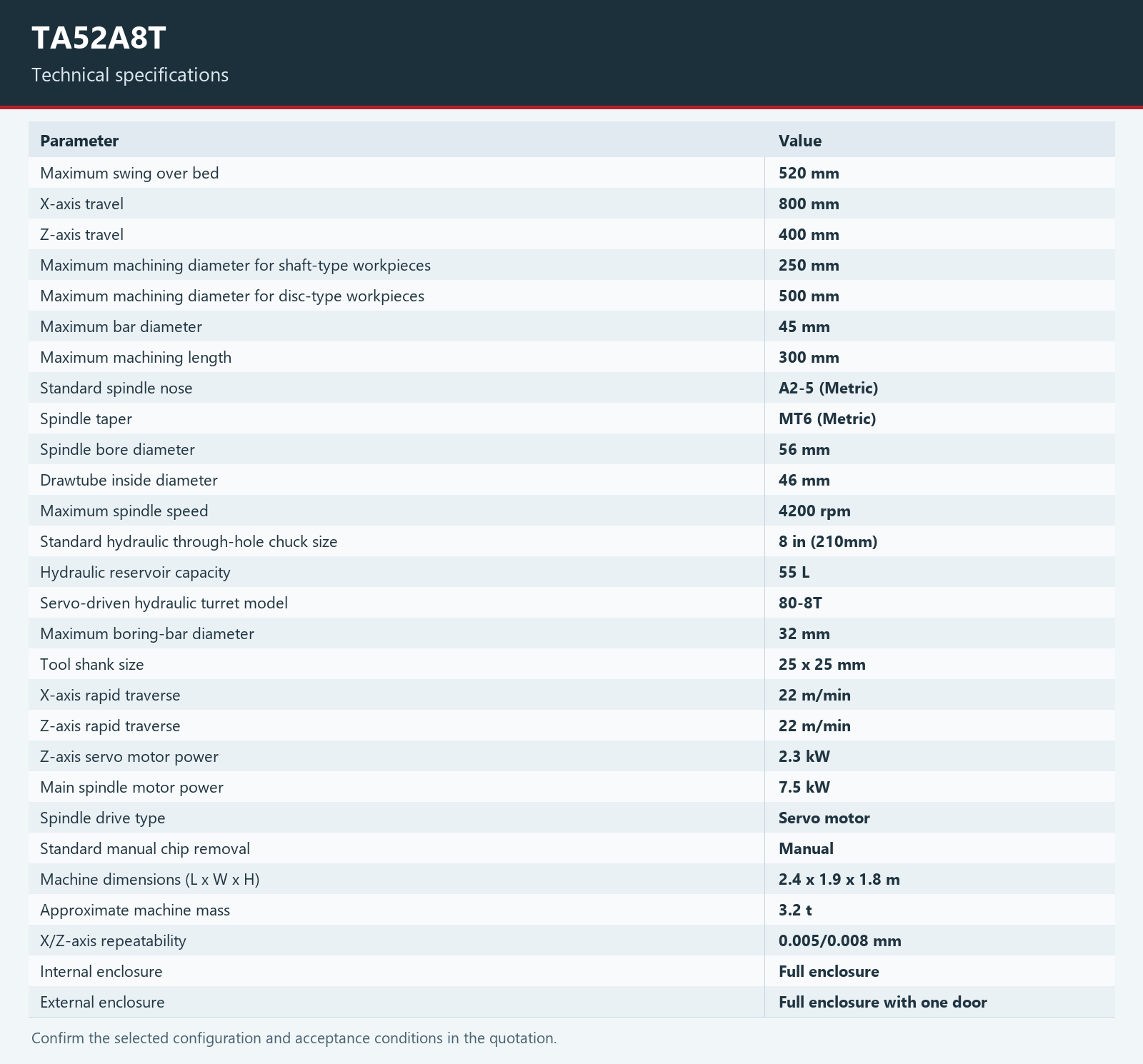

Discuss this configuration View specifications
Check the configuration against your part
For a shaft-type part, check its separate machining-diameter limit, supported length and chuck engagement. For a disc-type part, check the disc-diameter limit, jaw projection and turret-tool access. Neither X/Z travel nor swing over bed guarantees the complete setup. Review the drawing and operation sequence before selecting the chuck, tooling and loading arrangement.
Configuration and acceptance
The listed values describe documented specifications; they do not establish the complete standard supply. Confirm the CNC, tooling, workholding, spindle duty and acceptance conditions in the quotation. Optional items require explicit selection.
Axis travel is not guaranteed workpiece clearance. Machine positioning and repeatability figures do not guarantee finished-part tolerances. Review the drawing, material, fixture and inspection method together.
Before choosing this machine
Which limits should I check for my workpiece?
For a shaft-type part, check its separate machining-diameter limit, supported length and chuck engagement. For a disc-type part, check the disc-diameter limit, jaw projection and turret-tool access. Neither X/Z travel nor swing over bed guarantees the complete setup. Review the drawing and operation sequence before selecting the chuck, tooling and loading arrangement.
Does this page confirm a material or automated loading system?
No material or loading-system compatibility is confirmed here. Tell us the material, part form and loading requirement so the team can review the proposed configuration.
What should I send with an inquiry?
Send the drawing or part dimensions, material and operations required. Add the quantity, critical tolerances and loading preference if known. Use the inquiry link on this page to include the model with your request.
Do the specifications define the complete standard supply?
No. A listed specification does not establish the complete standard supply. Confirm the selected CNC, spindle duty, toolholding, workholding and any optional items in the final quotation.
