What is this machine used for?
What is the Tiezheng SVA/T4550?

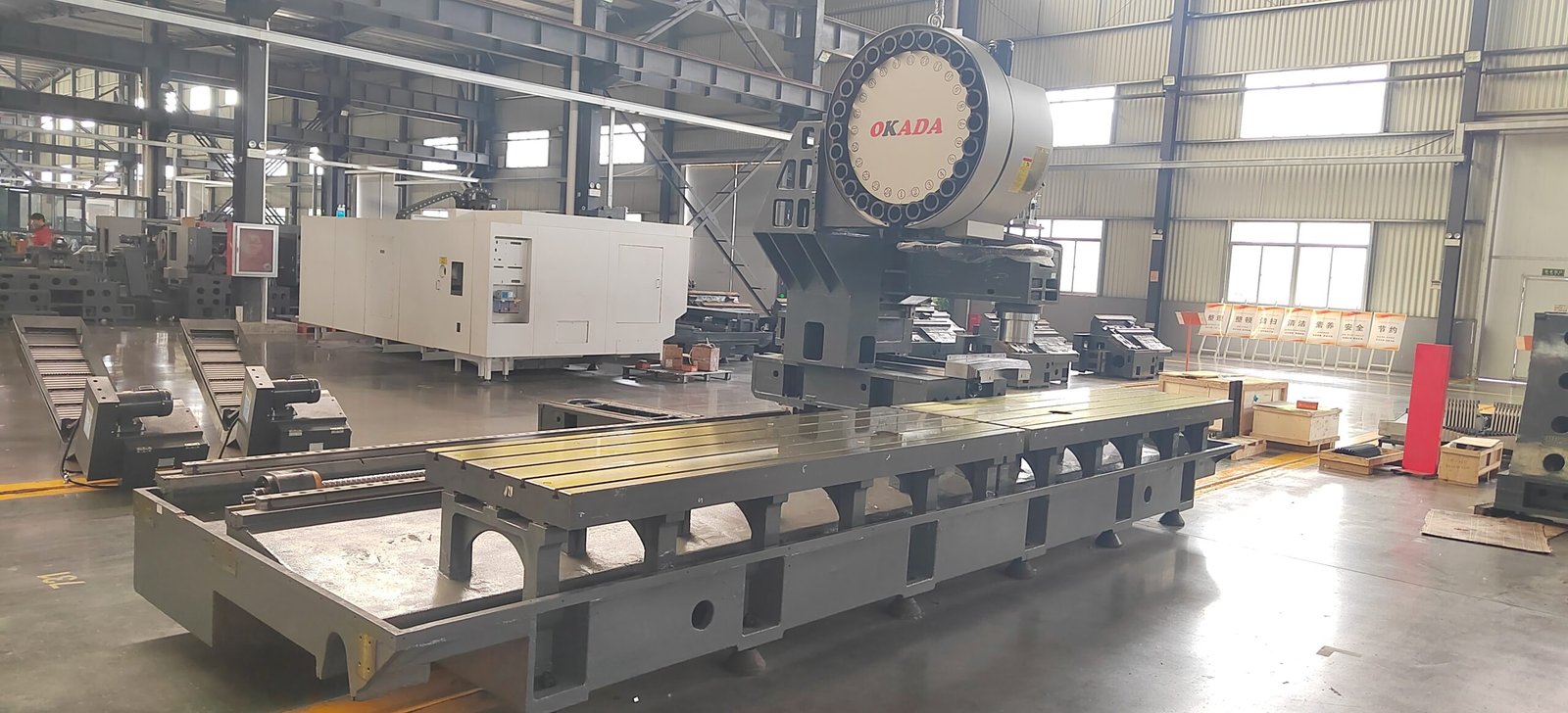

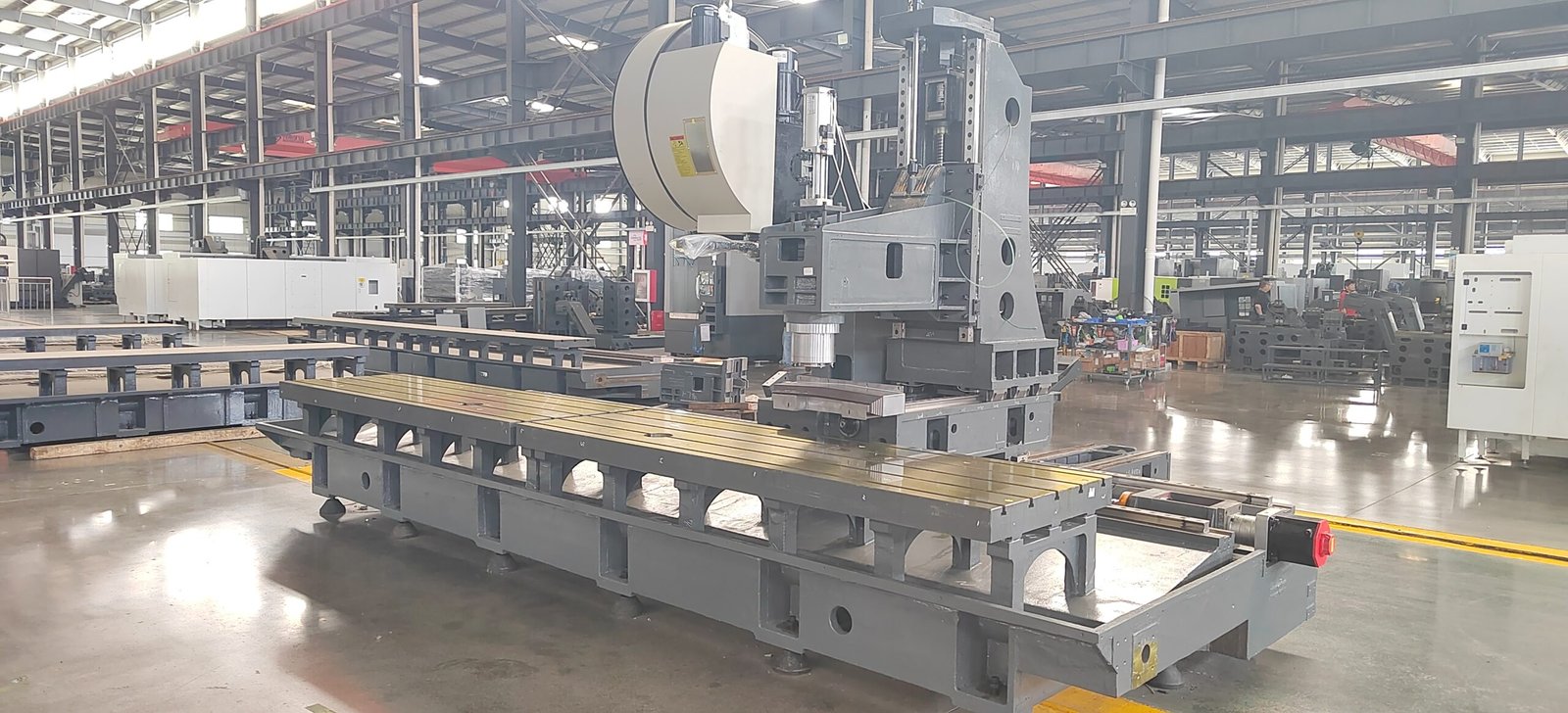

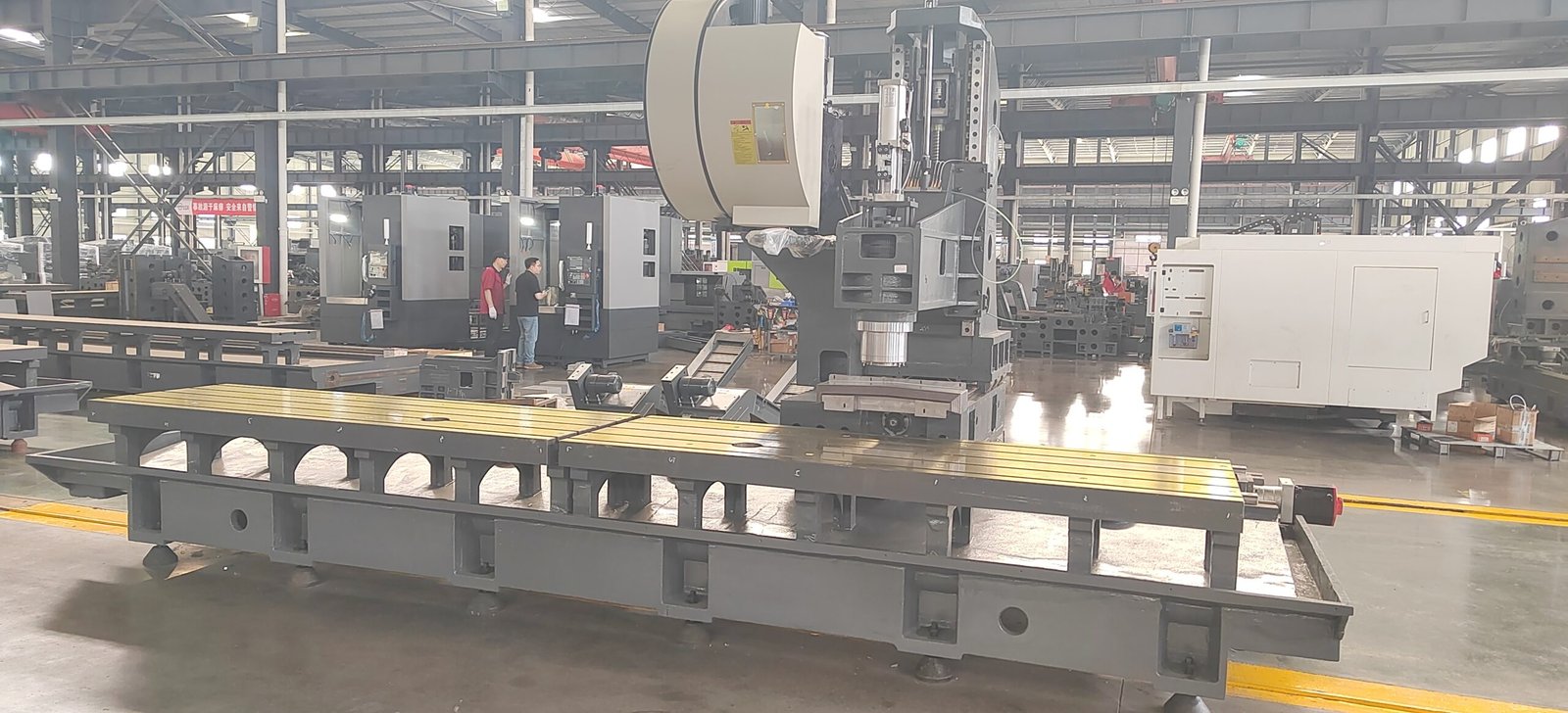

The SVA/T4550 is a moving-column machining center with three factory assembly views showing the T4550 machine layout. Compare the specifications with your workpiece and confirm the supplied configuration through drawing and RFQ review.
What are the worktable dimensions and axis travels?
Standard specifications include a 5000 x 500 mm worktable, 4500 x 550 mm X/Y travel, 550 mm standard Z travel and 700 mm optional Z travel. Buyers should confirm fixture length, part support, tool access, datum strategy and the required Z configuration against the actual workpiece.
Which spindle and tool-magazine data are documented?
Standard specifications include a BT40 direct-drive spindle at 12000 rpm and a 24-tool disc mechanical-arm magazine. The control system, electrical standard, tooling, workholding, chip management and other project requirements must be confirmed in the signed quotation and technical agreement.
How can buyers review the T4550 machine?
View the T4550 product images and specifications, then discuss your required T4550 configuration with Tiezheng.
How should buyers compare the SVA/T4550?
Use the specification table to compare worktable length, X/Y travel, standard or optional Z travel, spindle interface, spindle speed and tool capacity. Confirm workpiece support, fixture layout, tolerances, process sequence, site access and acceptance method through RFQ.
What should be sent for an SVA/T4550 RFQ?
Send the part drawing, material, critical tolerances, overall profile length, annual volume, target cycle time, required operations, preferred control, workholding or automation requirement and destination country.
Does this page define the final supplied machine?
No. It presents machine specifications and factory assembly images for comparison. The signed quotation, technical agreement and acceptance record control the final supplied configuration.
Which Tiezheng SVA/T4550 specifications should buyers check?
The published Tiezheng SVA/T4550 specifications include Worktable size: 5000 x 500 mm; X/Y axis travel: 4500 x 550 mm; Standard Z-axis travel: 550 mm. Treat travel, cutting capacity, workholding clearance and load as separate limits. Use the full specification table to check the proposed configuration; these values do not by themselves establish material suitability, achievable part tolerance or cycle time.
Read the full Tiezheng SVA/T4550 specification table.
Does this specification confirm suitability for my industry?
Industry labels alone do not establish a machining process. Start with the dimensions, operations and material information you know; a drawing can follow after the first contact. Confirm material grade and hardness, tolerances, stock condition, production volume and fixture requirements with the contact before agreeing the supplied configuration.
How can I compare this model and request a quotation?
Compare up to three models by the same specification label and unit. An omitted value is not zero, and an optional value is not a standard configuration. Keep the model name with your inquiry so the sales team can review the correct machine.
Confirm the SVA/T4550 configuration for your part
Use the published specifications to shortlist this model, then confirm the configuration with the contact listed on this site. Axis travel, workpiece capacity and table load describe different limits; they do not establish finished-part tolerance, material suitability or cycle time. A drawing is optional for the first contact. Machine prices and formal quotations are provided directly by the contact, not by this website.
- Check the published data. Read the available specification labels, units and configuration notes. Ask the contact for missing technical data for this exact model. An omitted value is not zero.
- Confirm the supplied configuration. Ask the contact for configuration-specific technical information. Confirm standard and optional equipment, tooling, workholding and acceptance requirements; do not assume an unlisted feature is included.
- Discuss your requirement. Start with the dimensions and operations you know. Agree a suitable channel for confidential drawings directly with the contact.
Does submitting an inquiry confirm the machine or a quotation?
No. An inquiry starts a discussion. The contact must confirm the proposed configuration and commercial terms with you; submitting a form is not machine acceptance or a formal quotation.
