Dual-End Simultaneous Machining Time. ±0.005mm Positioning Accuracy.
Yitu Dual-Channel 4-Axis CNC Control. Valve-Ready Production with Valve Loading System Interface.
Upload your valve drawings. Our engineers will confirm specs, cycle time estimate, and tooling plan within 24 hours.
Upload Drawings → .pdf / .dwg / .step — NDA availableGet the complete HC-RTB-25-K specifications and workshop layout drawing. No commitment required.

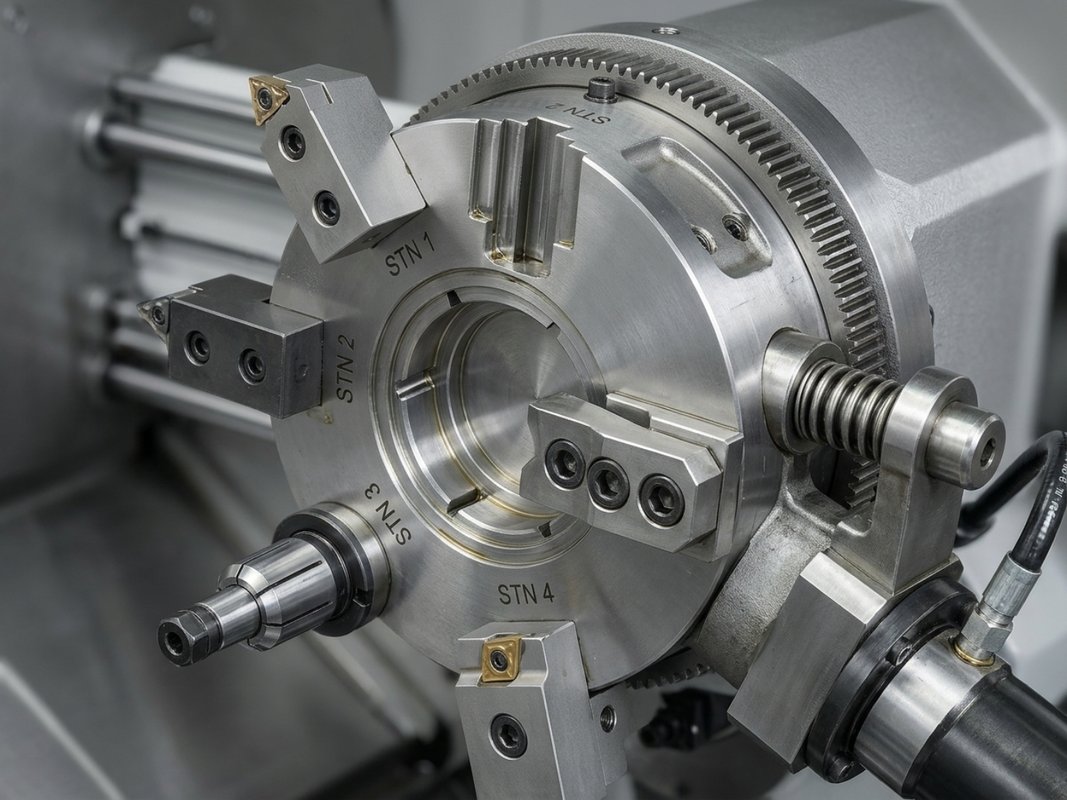

View Full Specs → Includes: dimensions, utility requirements, foundationGang tool configuration — no power head indexing. Tools preset in parallel along the X-axis. Zero tool change penalty compared to rotary power head lathes.
HT300 cast iron, three-stage aging treatment. Maximum rigidity and thermal stability for sustained high-precision cutting across full X/Z stroke.
Precision ground ball screws (Silver-Wisdom P2 grade) on both axes. Harbin P4-grade spindle bearings. Germany-made guide rails.
Variable speed servo motor, 100–3000 RPM. High torque at low speed for heavy roughing; smooth high-speed finish turning.
Standard interface for LNS/IEMCA valve clamping systems. Gantry loader compatible. Pneumatic 6" chuck standard. External M-code output for auxiliary devices.

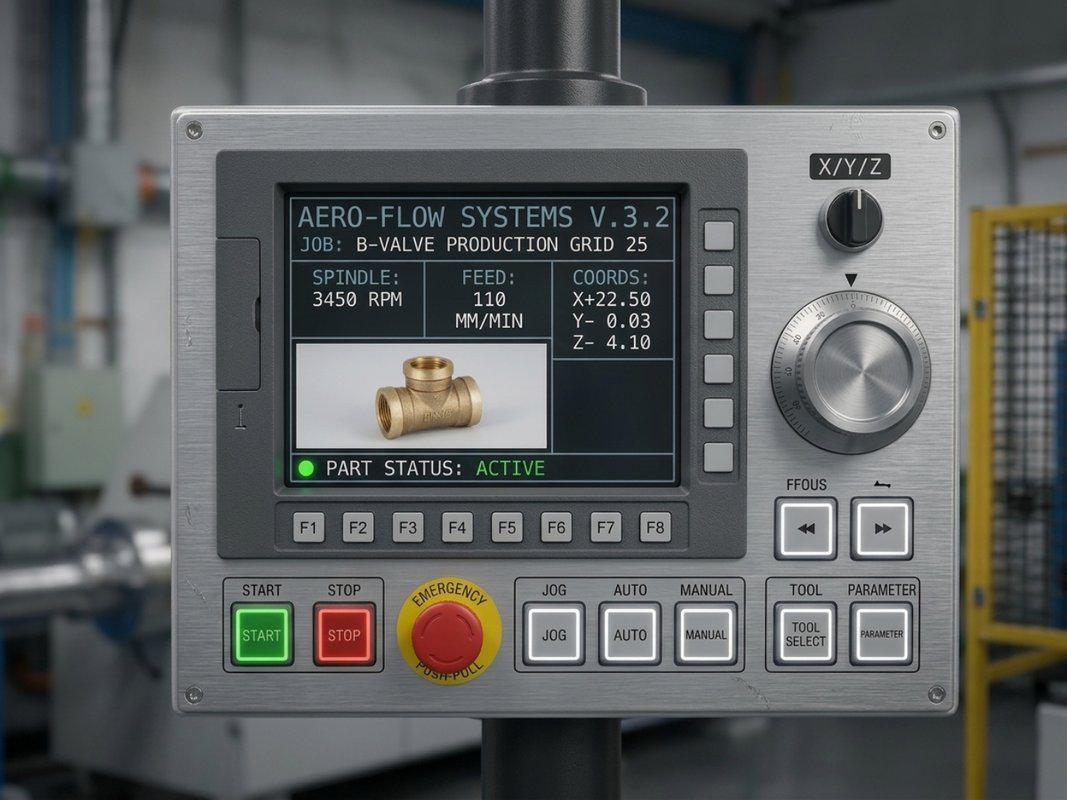

Yitu 4-axis dual-channel CNC system with ISO G-code. Large LCD touchscreen, macro variables, and subprogram support. Optional conversational mode.

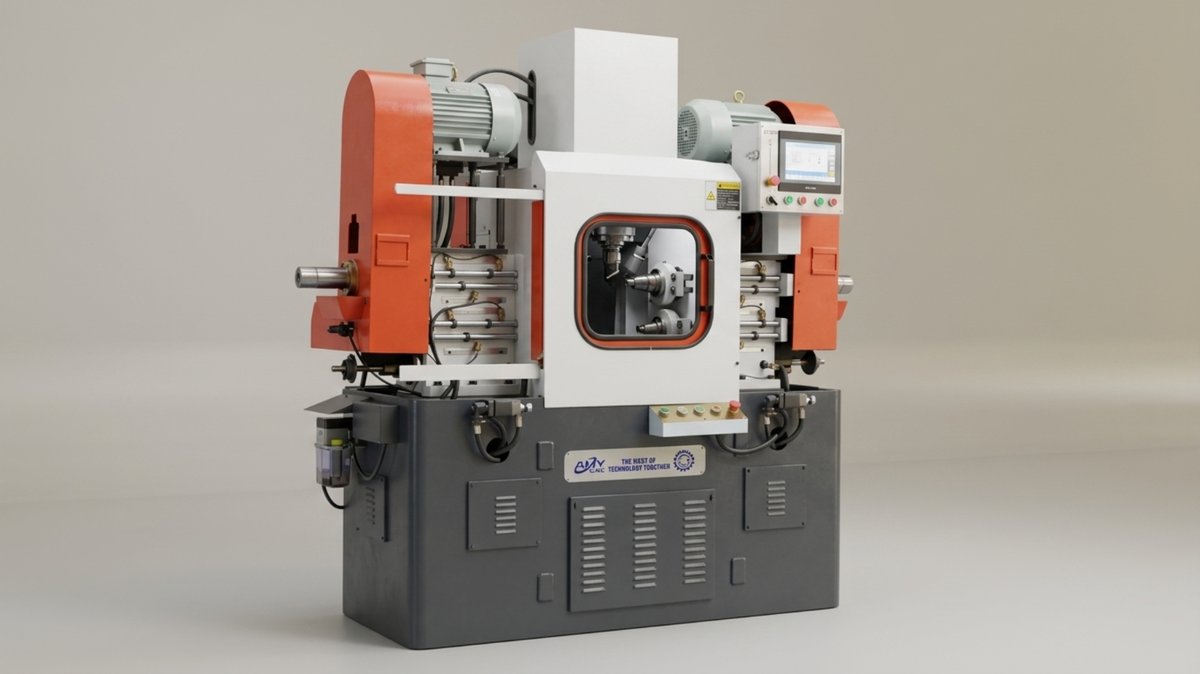

The HC-RTB-25-K is a specialized Dual-Head CNC Turning Machine designed exclusively for precision machining of gate valve sealing surfaces. Two opposing power heads machine both ends of a valve body simultaneously, ensuring perfect alignment and sealing accuracy. This machine is the core equipment for manufacturers producing 1/2"–2" stainless steel and brass gate valves for water, oil, and gas applications.
| Parameter | Specification | Unit | Note |
|---|---|---|---|
| Model | HC-RTB-25-K | — | Gate Valve Sealing Surface Special Machine |
| Control System | Yitu Dual-Channel 4-Axis CNC | — | Dual-channel simultaneous control |
| Machining Range | 1/2" – 2" | inch | Valve body nominal diameter |
| Material Compatibility | Stainless Steel, Brass | — | WCB / SS304 / SS316 / CW617N |
| Max Spindle Speed | 1,400 | RPM | Variable speed, servo controlled |
| Z-Axis Travel | 200 | mm | Dual-head synchronized |
| X-Axis Travel | 12 | mm | Radial cutting travel |
| Z-Axis Feed Motor | 6 | N.M | High-torque servo motor |
| X-Axis Feed Motor | 4 | N.M | High-torque servo motor |
| Oil Pump Motor | 1.5 | kW | Hydraulic power unit |
| Positioning Accuracy | ±0.01 | mm | CNC controlled, repeatable |
| Machine Weight | 3,500 | kg | Heavy-duty cast iron bed |
| Floor Space (L×W×H) | 2,600 × 1,520 × 1,750 | mm | — |
| Lead Time | 2–4 months | — | FAT included |
★ Highlighted rows are key selection criteria. All specifications subject to final engineering confirmation. Custom sizing for larger valves (up to 4") available on request.
| Criteria | APEX HC-RTB-25-K ★ | Ordinary Single-Head Lathe |
|---|---|---|
| Lead Time | 2–4 months | 4–6 months |
| Price | Factory-direct, 40–60% lower | Standard pricing |
| Chip-to-Chip Time | <2 seconds (gang) | 2–4 seconds (power head) |
| Positioning Accuracy | ±0.005mm | ±0.02mm |
| Valve Loading System Integration | Standard M-code, LNS/IEMCA compatible | No dual-head option |
| Spare Parts Delivery | 48h dispatch, China warehouse | 4–8 weeks delivery |
The dual-head turning configuration eliminates power head indexing entirely. With tools preset in parallel along the X-axis, the only motion between operations is X/Z axis positioning — typically one setup for both ends. For high-volume parts with 3–6 operations, this represents a significant throughput advantage over 6–12 second power head change times.
The standard Yitu 4-axis dual-channel CNC system uses ISO G-code with an industrial touchscreen interface. Macro variables, subprograms, and probing cycles are all standard. Optional conversational programming available. Ethernet port enables remote access and program transfer.
The valve size range is 1/2"–2", comfortably accommodating bars up to 40mm diameter. The standard 6-inch pneumatic chuck handles workpieces up to 150mm O.D. on the slide. For larger workpieces, chuck configuration is customized per drawing.
Yes. The HC-RTB-25-K has a standard M-code interface for valve clamping systems. Compatible with Also suitable for globe valves and check valves servo valve clamping systems. When equipped, the system supports fully unattended production runs with end-of-bar detection and auto-index.
Send us your drawings. We'll confirm the HC-RTB-25-K is the right fit, provide a tooling plan, and calculate your cycle time and per-piece cost — at no charge.
Typical response within 4 business hours. NDA available upon request.
